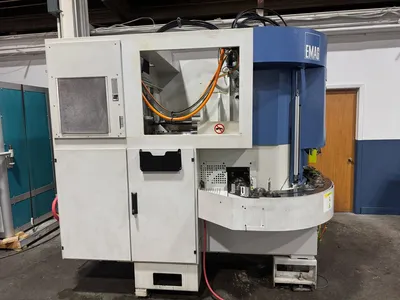

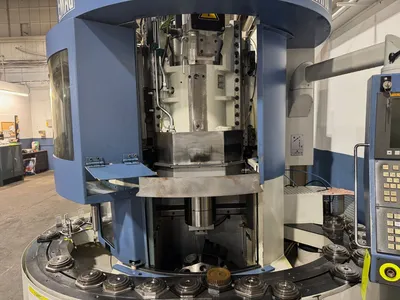

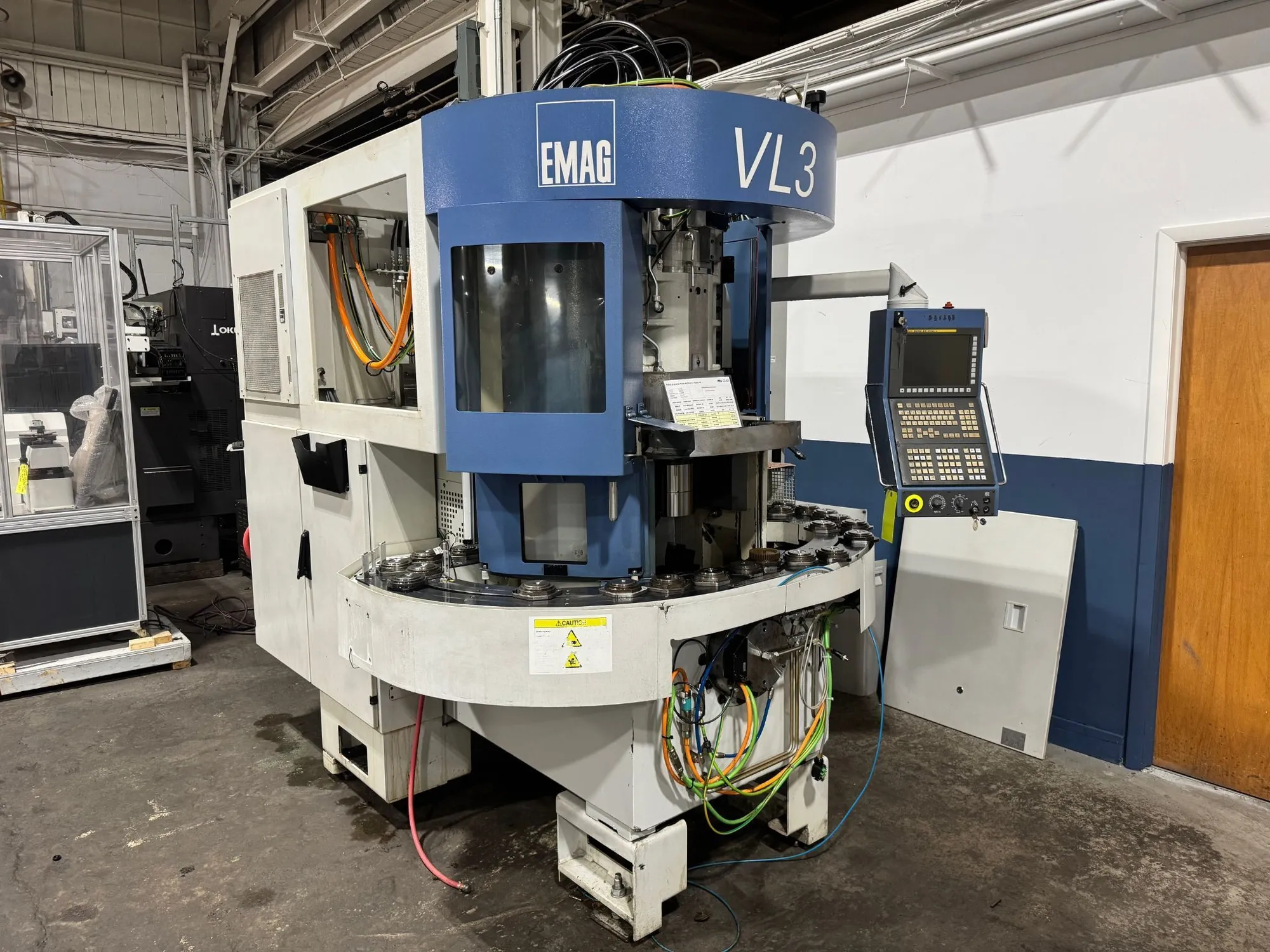

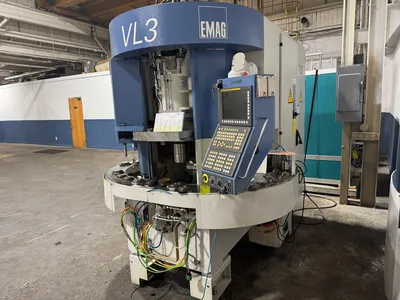

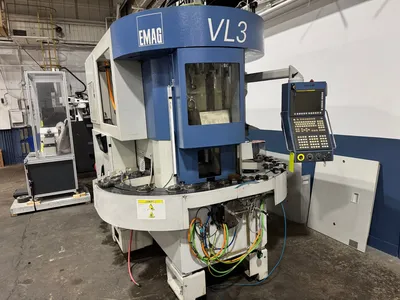

USED 2011 EMAG VL 3
Overview
The EMAG VL 3 is a high-performance vertical turning center designed for precision machining of small to medium-sized parts, especially in industries that require high-quality, high-precision machining. It is part of the EMAG series of vertical lathes, which are known for their ability to handle complex turning operations with great efficiency.
The VL 3 is widely used in industries such as automotive, aerospace, and general engineering, and is particularly suitable for producing parts like gears, shafts, housings, and other complex geometries.
Specs
Specifications:
Number of Axes: 3
Maximum Workpiece Diameter: 300 mm (approx.)
Maximum Workpiece Length: 300 mm (approx.)
Chuck Size: 6” (standard, options for larger sizes)
Machine Dimensions: 2,400 mm x 2,200 mm x 2,500 mm (approx.)
Machine Weight: 3,200 kg (approx.)
Spindle Speed: Up to 6,000 RPM (standard)
Spindle Power: 15 kW (continuous)
Spindle Torque: 75 Nm
Spindle Bore: 65 mm
X-Axis Travel: 300 mm
Y-Axis Travel: 250 mm
Z-Axis Travel: 300 mm
Rapid Traverse (X, Y, Z): 20 m/min (maximum)
Feed Rate: 12 m/min (max feed rate in all axes)
Number of Tool Stations: 6 to 12 tool stations
Maximum Tool Diameter: 32 mm (in fully populated tool turret)
Maximum Tool Length: 100 mm
Positioning Accuracy (X, Y, Z): ±0.005 mm
Repeatability (X, Y, Z): ±0.002 mm
Spindle Runout: < 0.003 mm
