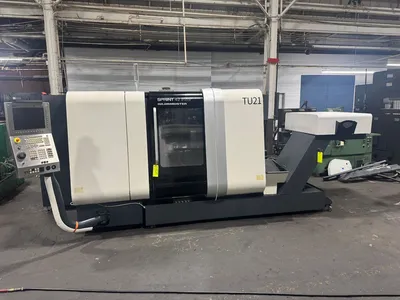

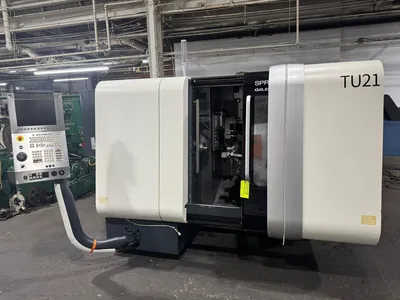

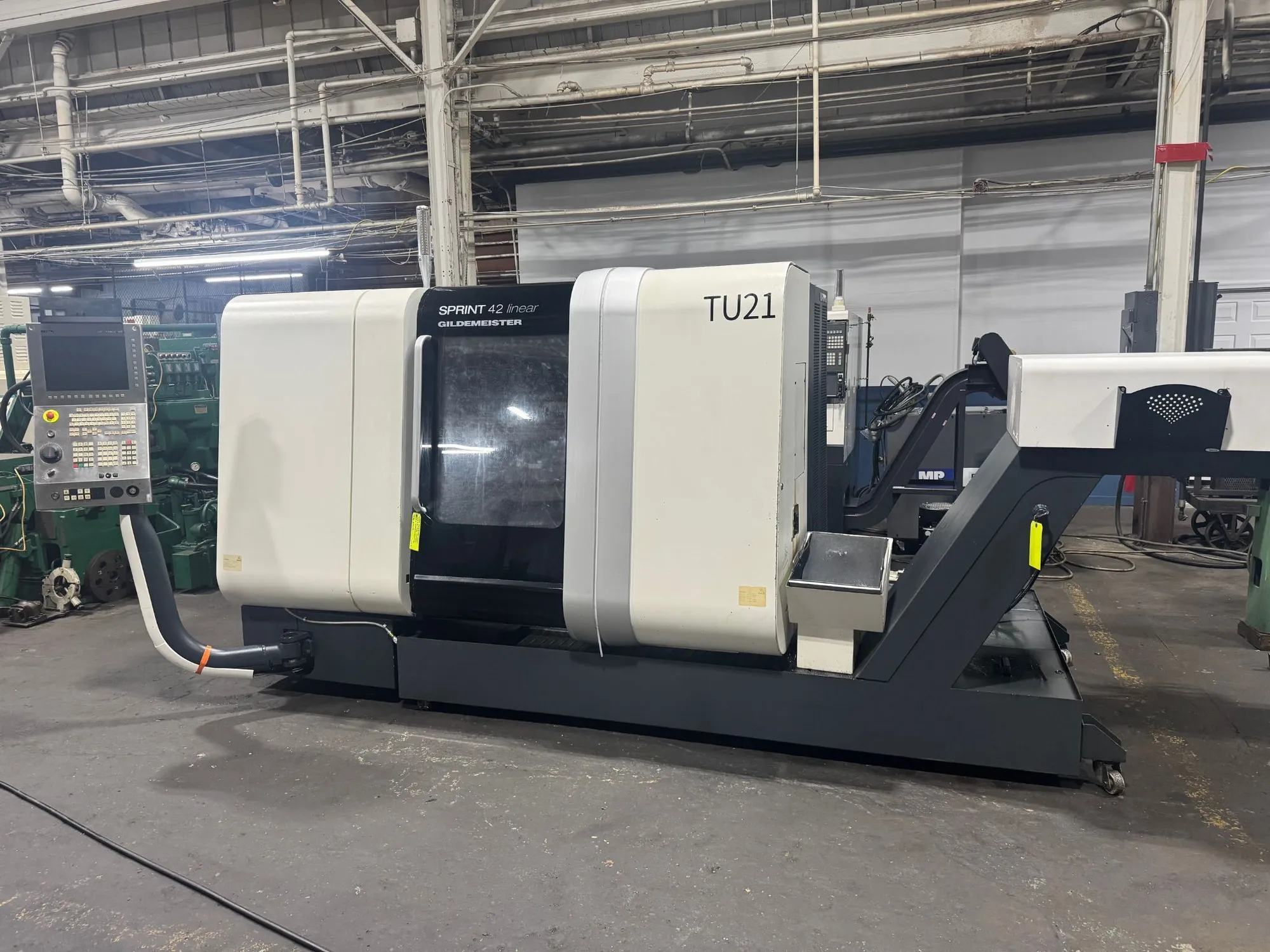

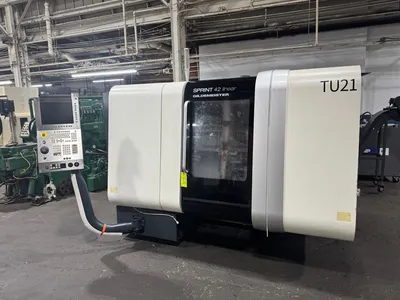

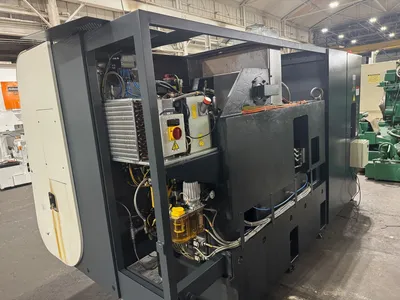

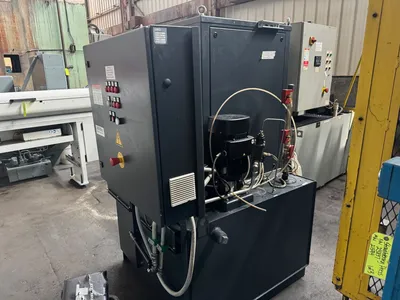

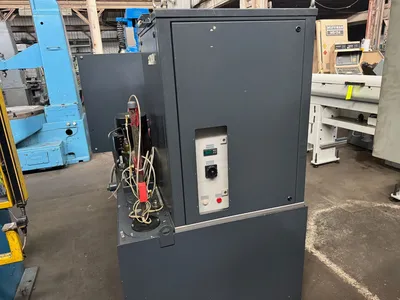

USED 2011 DMG GILDEMEISTER Sprint 42 Linear
Overview
Description
The DMG Mori Gildemeister Sprint Linear 42 is a high-performance CNC lathe designed for precision machining of small to medium-sized parts. This machine is a part of the Sprint series by DMG Mori, which is renowned for offering fast, efficient, and accurate machining capabilities. The Sprint Linear 42 is particularly well-suited for industries like automotive, aerospace, medical, and general manufacturing, where high productivity and precision are key.
Specifications
| Max Workpiece Diameter | 1.7" | 43.18 mm |
|---|---|---|
| Max Workpiece Length | 12.6" | 320.04 mm |
| Max X-Axis Travel | 2" | 50.8 mm |
| Max Y-Axis Travel | 13.8" | 350.52 mm |
| Max Z-Axis Travel | 4.7" | 119.38 mm |
| Spindle Hole Dia | 1.7" | 43.18 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| Power | 22 kW | 29.5 hp |
| # Axis | 8 | 8 |
| Control | CNC (FANUC 160I) | CNC (FANUC 160I) |
| Dimensions | 2,000 x 1,500 x 2,000 mm | 2,000 x 1,500 x 2,000 mm |
| Weight | 4,500 kg | 4,500 kg |
Equipped With

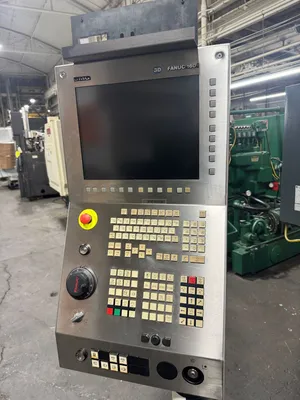

Fanuc 160i CNC Control

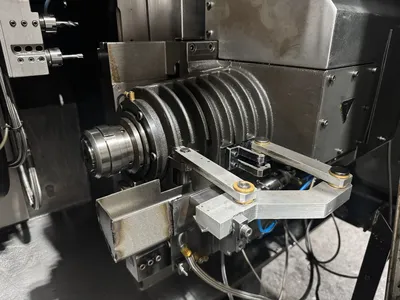

Collet Chuck on Main Spindle
Collet Chuck on Counter Spindle

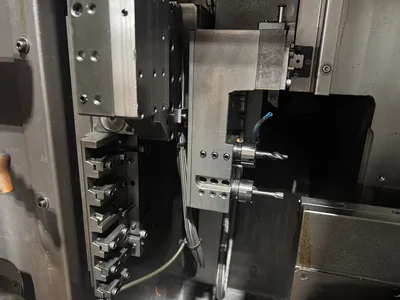

Drive Unit for Driven Tools Counter Spindle
Parts Catcher

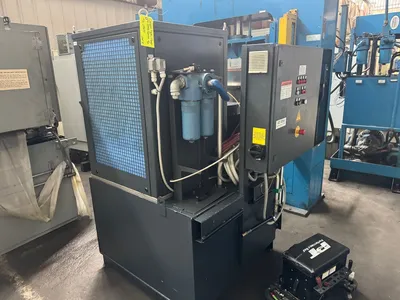

High Pressure Coolant System

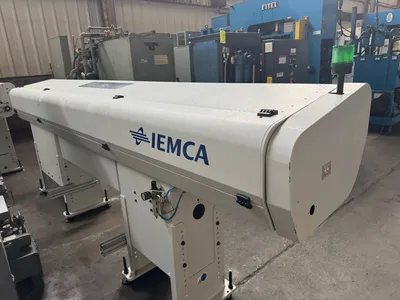

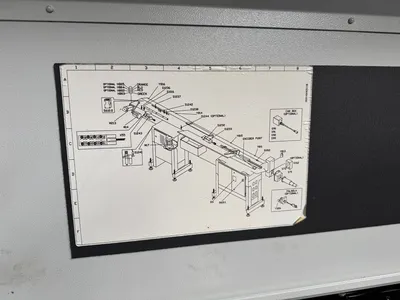

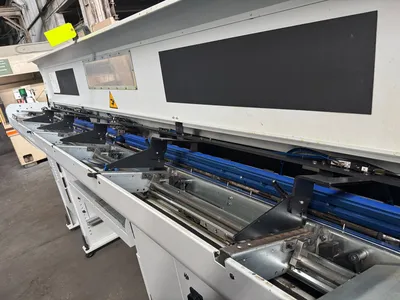

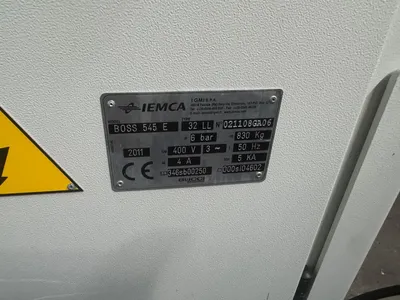

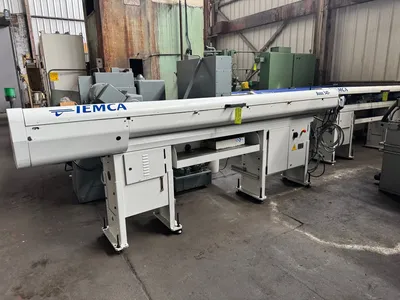

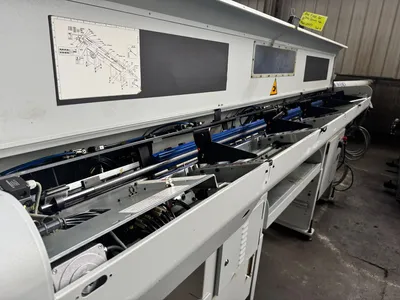

IEMCA Boss 545 E Bar Feeder
Coolant Tank
Chip Conveyor
Stacklight
Worklight
