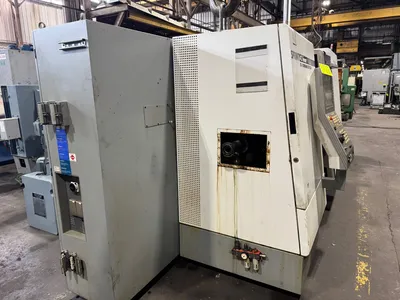

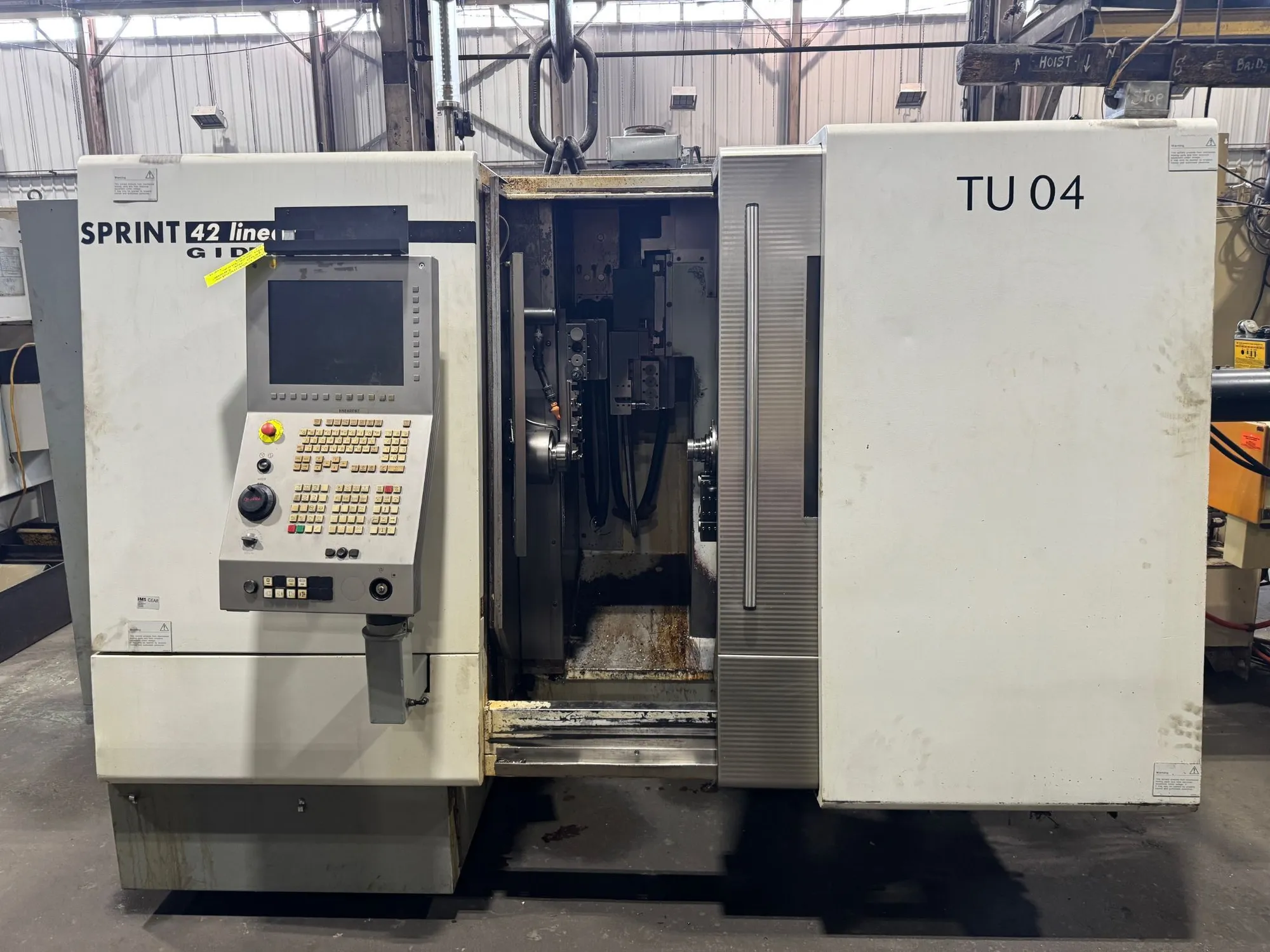

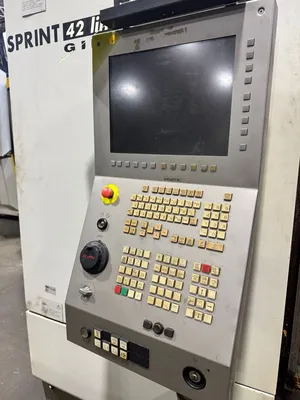

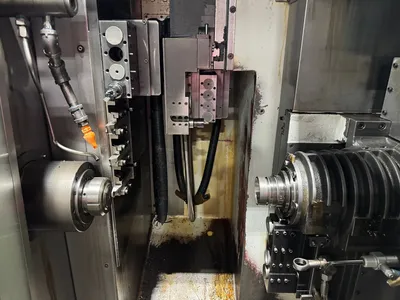

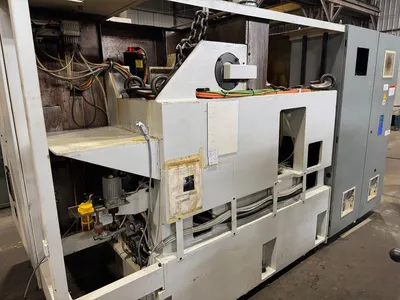

USED 2004 DMG GILDEMEISTER Sprint 42 Linear
Overview
Description
The DMG Mori Gildemeister Sprint Linear 42 is a high-performance CNC lathe designed for precision machining of small to medium-sized parts. This machine is a part of the Sprint series by DMG Mori, which is renowned for offering fast, efficient, and accurate machining capabilities. The Sprint Linear 42 is particularly well-suited for industries like automotive, aerospace, medical, and general manufacturing, where high productivity and precision are key.
Specifications
| RPM | 6,000 RPM | 6,000 RPM |
|---|---|---|
| Power | 22 kW | 29.5 hp |
| # Axis | 4 | 4 |
| Dimensions | 2,000 x 1,500 x 2,000 mm | 2,000 x 1,500 x 2,000 mm |
| Weight | 4,500 kg | 4,500 kg |
Specifications:
Number of Axes: 4 axes (X, Y, Z, and C-axis)
Machine Dimensions: Approx. 2,000 mm x 1,500 mm x 2,000 mm (varies depending on configuration)
Machine Weight: 4,500 kg (approx.)
Spindle Speed: Up to 6,000 RPM (depending on the configuration)
Spindle Power: 22 kW (continuous)
Spindle Torque: 80 Nm
Spindle Bore: 42 mm (Standard for parts up to 42 mm diameter)
X-Axis Travel: 210 mm
Y-Axis Travel: 120 mm
Z-Axis Travel: 350 mm
Rapid Traverse (X, Y, Z): 48 m/min (maximum)
Feed Rate: 30 m/min (maximum feed rate for all axes)
Maximum Tool Diameter: 40 mm (depending on tool station configuration)
Maximum Tool Length: 100 mm
Tool Change Time: < 1.5 seconds (tool-to-tool change)
Positioning Accuracy: ±0.003 mm
Repeatability: ±0.001 mm
Spindle Runout: < 0.003 mm
