The Tsugami BH38E is a Swiss-type CNC automatic lathe, known for its combination of gang and turret tooling, enabling complex part production from bar stock in a single setup. It is a specialized variant within the broader BH38 series, often representing an economy or enhanced version. The "E" designation typically indicates specific enhancements or cost-effectiveness.
| Max Workpiece Diameter | 38 mm | 1.4961" |
| Max Workpiece Length | 250 mm | 9.8425" |
| Max X-Axis Travel | 385 mm | 15.158" |
| Max Y-Axis Travel | 264 mm | 10.394" |
| Max Z-Axis Travel | 250 mm | 9.8425" |
| Spindle Hole Dia | 1.5" | 38.1 mm |
| RPM | 6,000 RPM | 6,000 RPM |
| Power | 15 hp | 11.2 kW |
| Capacity | 1.5" | 38.1 mm |
| Control | CNC (FANUC 31IB) | CNC (FANUC 31IB) |
| Dimensions | 107" x 71" x 67" | 107" x 71" x 67" |
| Weight | 13,000# | 13,000# |
Specifications:
Bar Capacity: 1.5"
Spindle Speed: 6,000 RPM
Spindle Motor: 15 HP
Maximum Turning Diameter: 1.496"
Maximum Turning Length: 9.842"
Collet Type/Capacity: 1.625

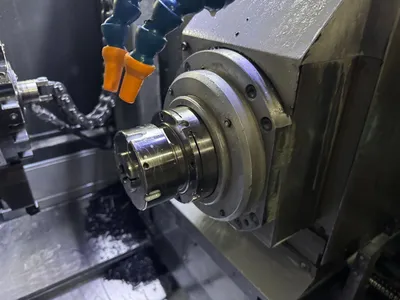

Sub-Spindle: Standard
Sub-Spindle Motor: 7.30 HP
Maximum Tools: 12 W/4 Rotary
Tool Shank Size: Square
Rotary Tool Spindle: 8,000 RPM
Rotary Motor: 1.90 HP
Rotary Tool Power: 1.30 HP
Dimensions: 107" x 71" x 67"
Weight: 13,000#

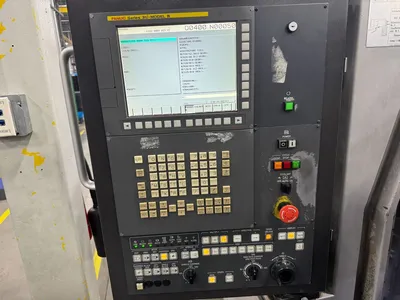

Fanuc 31iB CNC Control

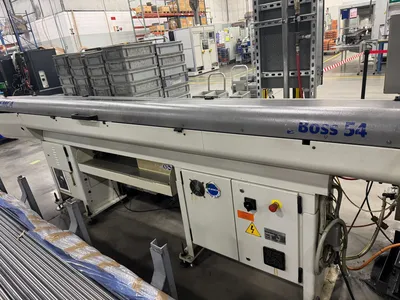

Iemca Boss 545 E Bar Feeder
Coolant System
Chip Conveyor
