USED 2011 PRIMA POWER FBe4

Ontario, Canada
287Listings|159Followers
Overview
Panel Benders

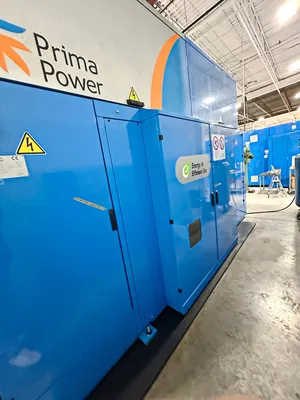

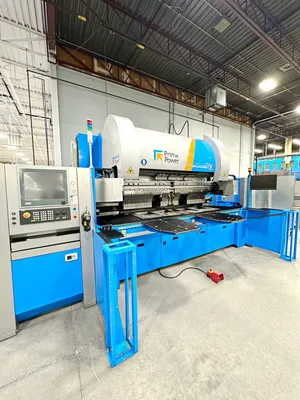

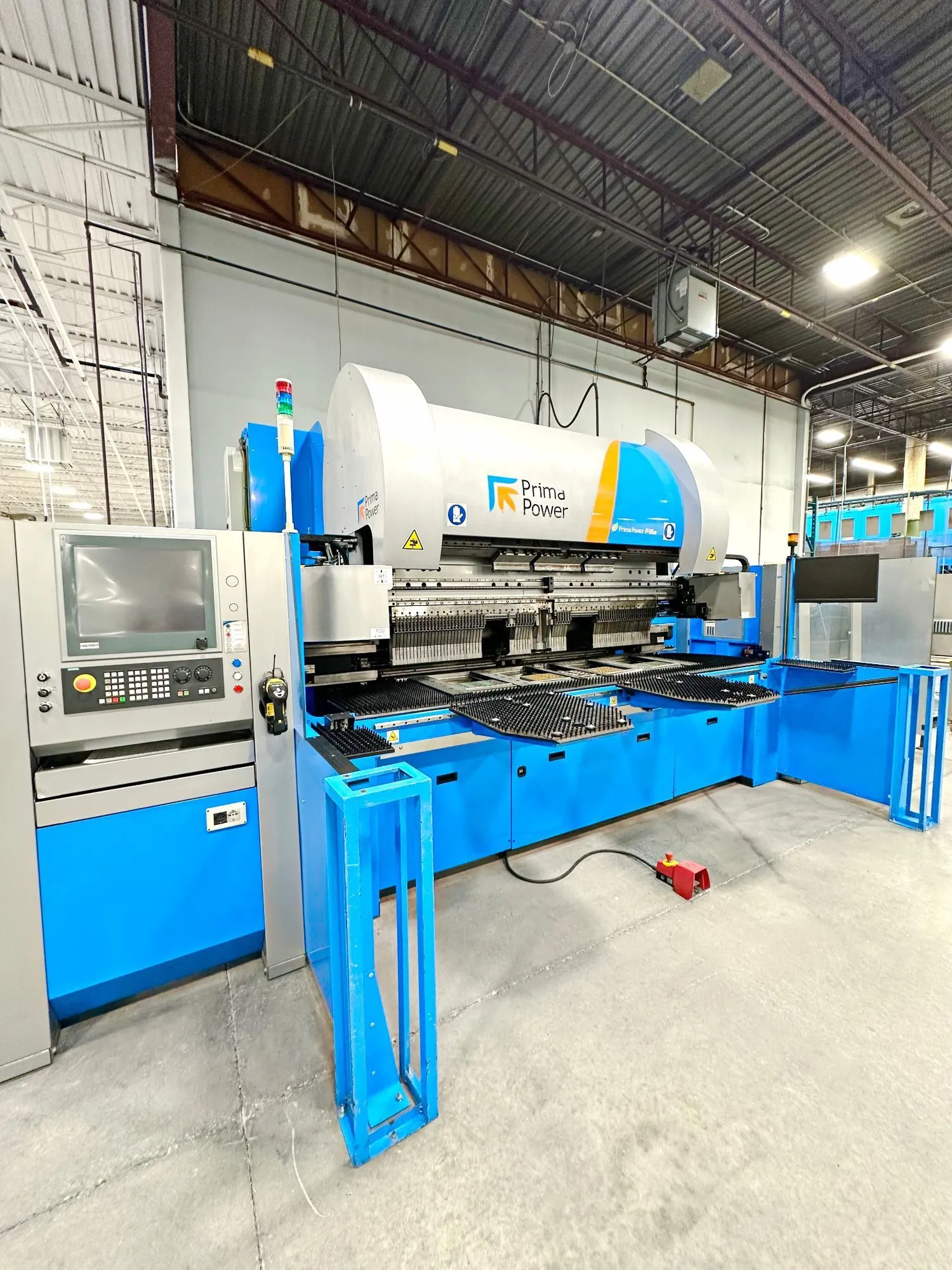

2011 Prima Power FBe4, Series 2.20 CNC Panel Bender, Servo-Electric Panel Bending System, Standard / Press Brake Operating Modes, Automatic Sheet Feeding, Positive / Negative Bending Capability, Rolling / Circular Bending Modes, Segmented Bending And Sheet-Holding Tooling, Front Sheet Support Tables W/ Brush-Style Surfaces

Specs
Max Sheet Length
112.2"
2,849.9 mm
Max Sheet Width
66.93"
1,700 mm
Sheet Clamping Force
57.3 T
51.982 t
Max Bending Length
88.58"
2,249.9 mm
Max Bending Height
7.87"
199.9 mm
Min Bending Length (Re-Entering Bends)
13.78"
350.01 mm
Max Re-Entering Bend
2.17"
55.118 mm
Min Bending Length (Standard Bends)
7.87"
199.9 mm
Min Bending Width
5.51"
139.95 mm
Max Thickness MS (Full Length)
0.098"
0.098"
Max Thickness MS (Short Length)
0.118"
0.118"
Max Thickness SS (Full Length)
0.071"
0.071"
Max Thickness SS (Short Length)
0.079"
0.079"
Max Thickness Aluminum (Full Length)
0.138"
0.138"
Max Thickness Aluminum (Short Length)
0.157"
0.157"
Max Thickness Short-Length Limit
70.87"
70.87"
Max Bending Angle
±130°
±130°
Angle Tolerance
±0°25′
±0°25′
Bend Dimension Tolerance
±0.006"
±0.006"
Made In
Italy
Italy
Control
CNC (Siemens Sinumerik 840D SL)
CNC (Siemens Sinumerik 840D SL)
Dimensions
204" X 120" X 108" (Approx.)
204" X 120" X 108" (Approx.)
Equipped With

Servo-electric panel bending system
Standard & press-brake operating modes
Automatic sheet feeding
Positive & negative bending capability
Rolling & circular bending modes
Radius bending & flattened-bend capability

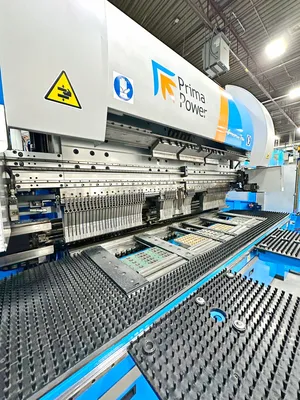

Segmented bending & sheet-holding tooling
Front sheet-support tables w/ brush-style surfaces
Operator control console w/ display and keypad
Auxiliary monitor
Foot-operated control pedal
