USED DELTA 72" x 1/2" x 80,000 Lbs

72" x 1/2" x 80,000# Delta / Alcos Cut-To-Length Line Year 2003

Type: Cut To Length Lines

Stock Number: 14140
Year 2003

Thickness Range: .048” - .530”
Coil Weight Capacit: 80,000#
Max Sheet Length: 40’
Min Sheet Length 48”
Coil Width Range: 36” – 72”
Yield Strength: 50,000 PSI

Complete Line with:
Coil loading Car (2003)

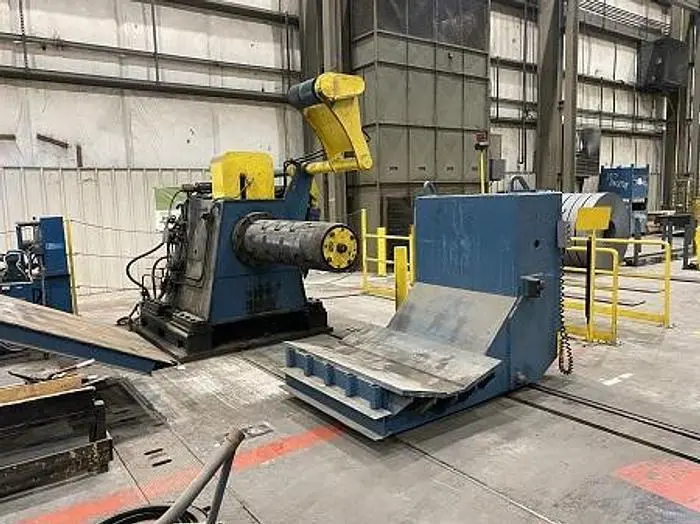

Double Cone Uncoiler (2003)
Sliding Base
Feed Up Drive
Water Cooled Brake & Cooler
Peeler Hold Down Roll (2003)

Delta Corrective 4 HI Plate Leveler (2003)
12.9” Diameter Entry Pinch Rolls
84” Pinch Roll Face
11 Work Rolls
5.375” Diameter Work Rolls
84” Work Roll Face
7 Flights of Top & Bottom Back-Ups
9.842” Diameter Back-Ups Rolls
Individual Motorized Adjustments
Motorized Tilt & Raise
400 HP DC Drive, 1750 RPM Motor & Controls
Oil Bath Lubricated Helical Distribution and Reduction Gear Boxes

Delta Corrective 4 HI Leveler (2003)
19 Work Rolls
2.5” Diameter Work Rolls
84” Work Roll Face
7 Flights Individual Motorized Back-Up Rolls
4.250” Diameter Back-Up Rolls
Motorized Tilt & Riase
200 HP DC Drive, 1750 RPM Motor & Controls
Oil Bath Lubricated Helical Distribution and Reduction Gear Boxes
Staggered Universal Joint Drive

Alcos Mechanical Shear (2004)
Motorized Gap Adjustment
75 HP AC Drive
Flywheel with Air Clutch & Brake

Alcos 40’ Stacker (2004)
Lift Tables
Drop Type Design
Motorized End Stop
Side Squaring

Powered Exit Conveyor
Touch Screen Digital Panel
Operator Push Button Stations
Digital Readouts

**Temporary Specifications Subject to Revisions**
**PRICE QUOTED AS IS WHERE IS SUBJECT TO PRIOR SALE**
**ALL SPECIFICAITONS ARE SUBJECT TO BUYERS VERIFICATION**
