Tank, 15 Gallon, Stainless Steel, 50 PSI, Feldmeier, FV, #5991511
Overview
Description

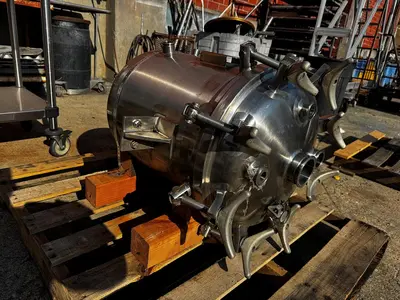

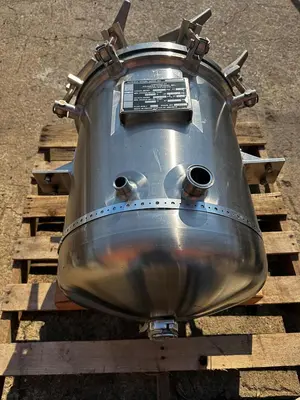

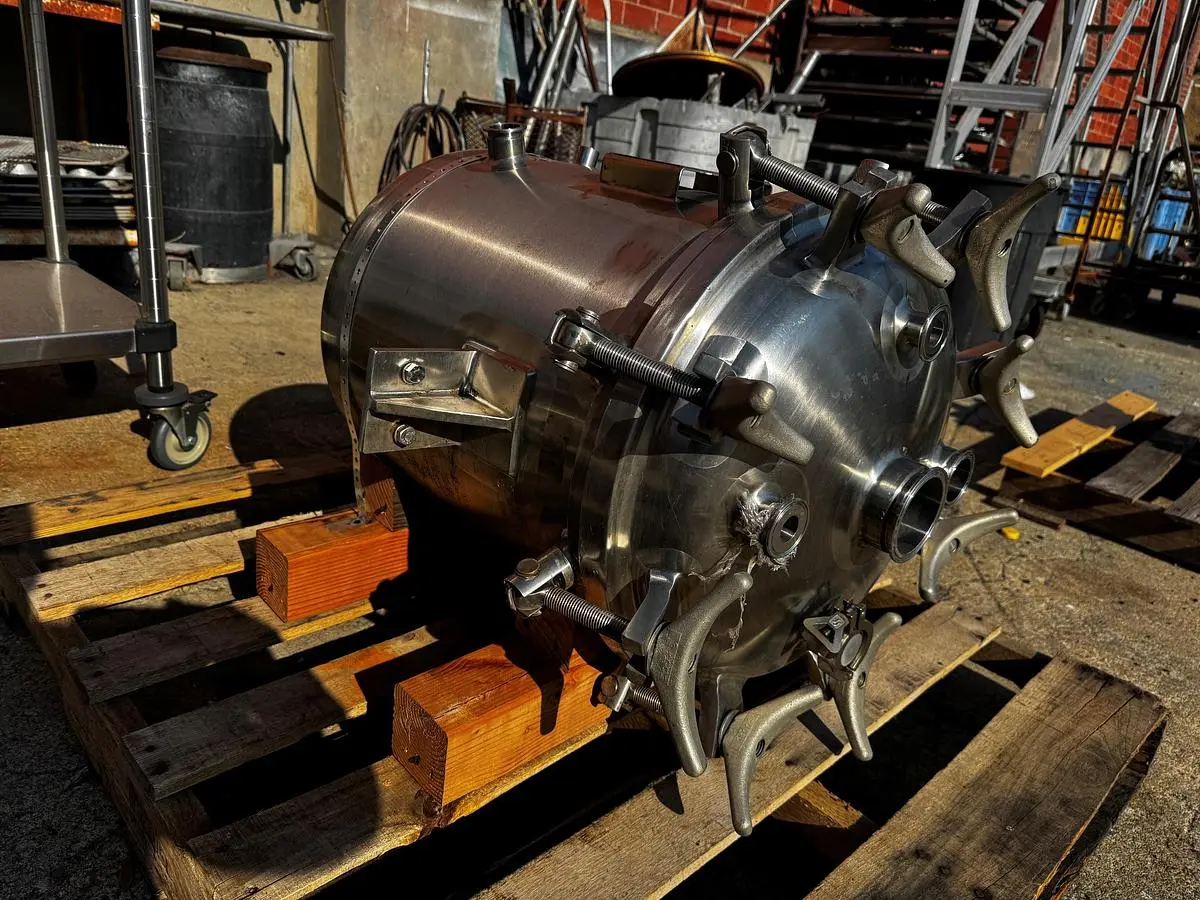

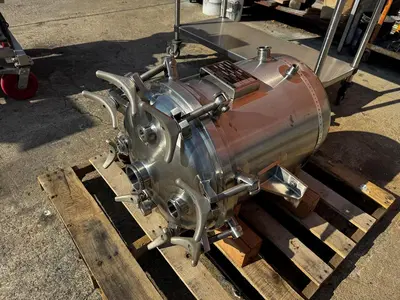

Feldmeier 15-gallon (approximately) stainless steel pressure tank with full vacuum rating. Constructed with single wall and designed for internal pressure of 50 PSI / full vacuum at 300°F / -20°F. Tank measures 16" diameter x 18" straight side. Features clamped removable top with (1) 3" center top opening and (3) additional top ports (2", 1.5", and 1"). Bottom head includes 1" center bottom outlet. Mounted with lugs. National Board #398.
Specifications
Stock Number: 5991511
Manufacturer: Feldmeier
Year: 1994
Serial Number: L2396-1
Gallons: 15
Dimensions: 6" Diameter x 18" Straight Side
Materials of Construction: Single-wall Stainless Steel

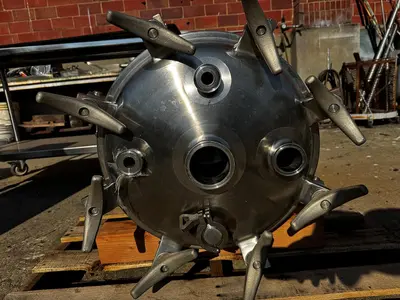

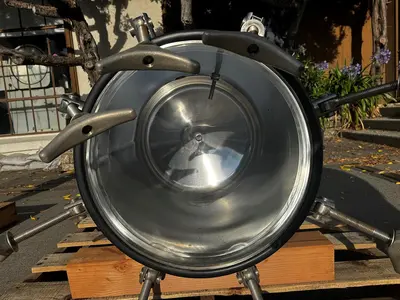

Top Configuration: Clamped removable top
Top Ports: (1) 3" Center Opening, (1) 2", (1) 1.5", (1) 1" Port
Bottom Outlet: 1" Center Bottom Outlet
Mounting: Lug-mounted
Internal Pressure Rating: 50 PSI @ 300°F / Full Vacuum @ -20°F

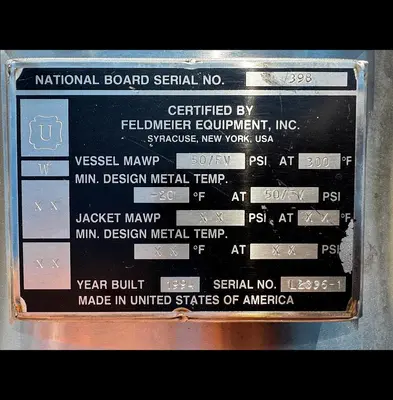

National Board Number: 398
Jacket: No
Basis: FOB
