USED ALLEGHENY BRADFORD CUSTOM / E910

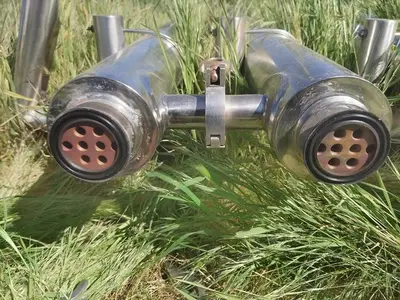

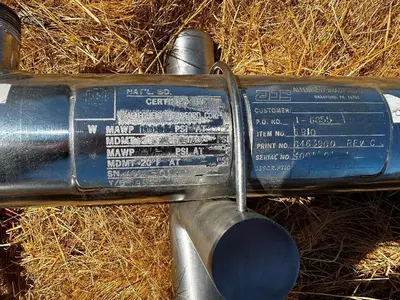

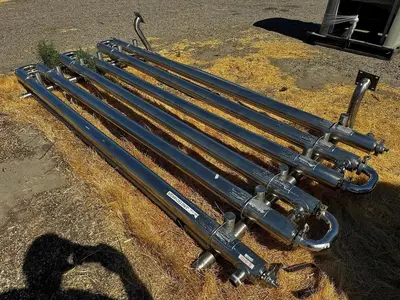

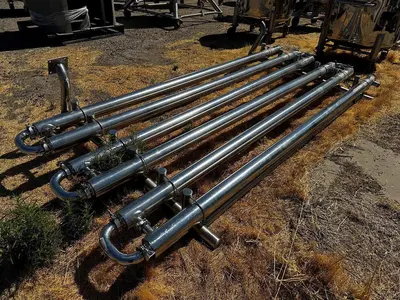

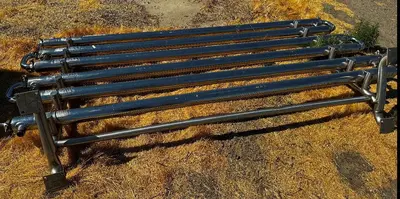

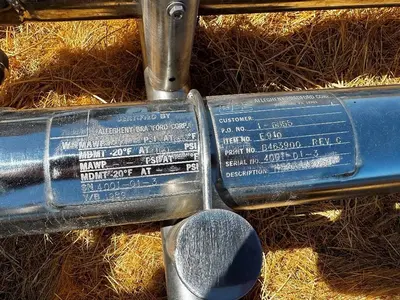

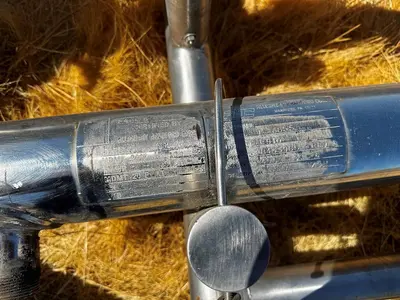

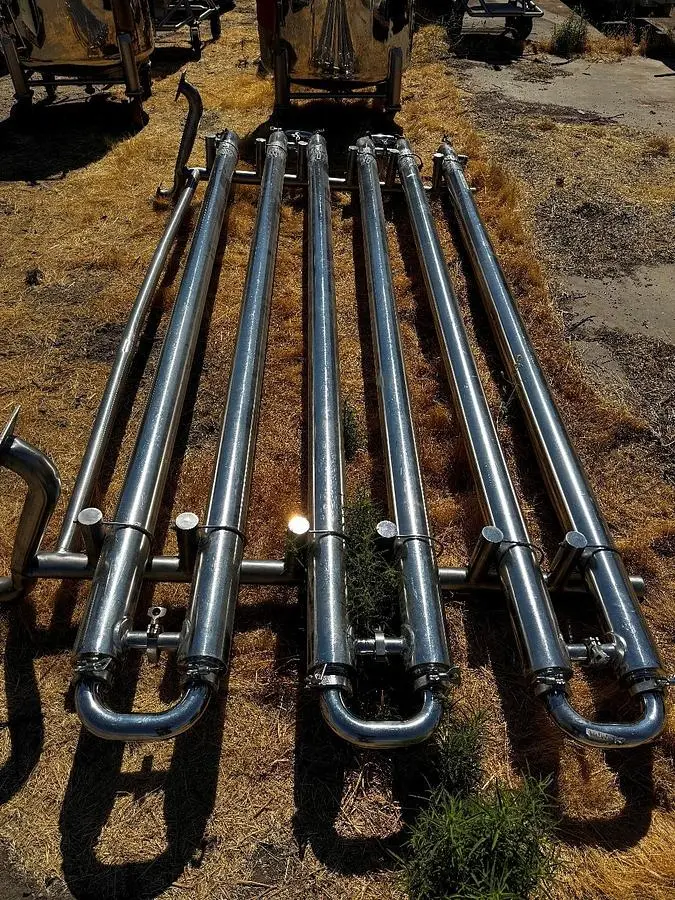

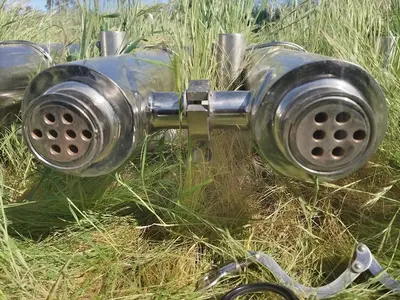

Allegheny Bradford six-pass shell and tube heat exchanger assembly constructed of stainless steel. The system consists of six individual shell-and-tube exchanger modules connected through a common manifold arrangement, approximately 50 sq. ft. surface area. Each exchanger measures approximately 9'10" in length and utilizes a multi-tube bundle configuration with approximately seven to eight internal tubes per shell, each estimated at approximately 1/2" diameter. The exchangers feature approximately 4" outer shell with internal 2" tube bundles. Connections include approximately 2" feed on the shell side and 3/4" feed on the tube side with elbow style fittings. Units are rated for approximately 100 PSI at 300°F.

Stock Number: 5991499
Manufacturer: Allegheny Bradford
Model: Custom / E910

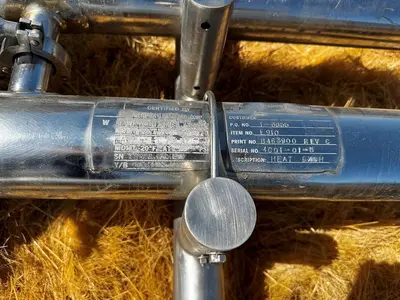

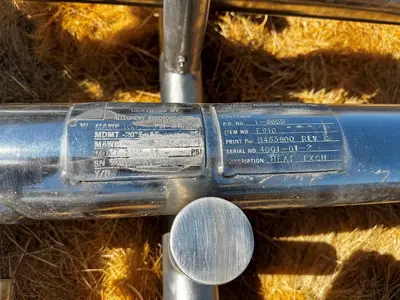

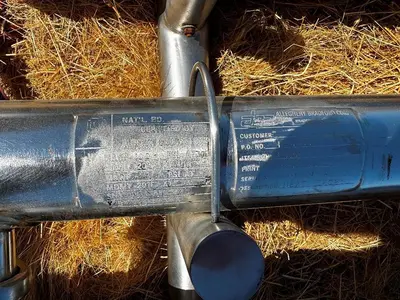

Serial Number: 4001-01-1 through 4001-01-6
Inner Tube Diameter: 1/2" diameter Tubes (approximate)
Outer Tube Diameter: 4"
Configuration: 6-Pass
Shell Side Feed: 2"
Tube Side Feed: 3/4"
Length: 9'10"
MAWP: 100 PSI @ 300°F / -20ºF
Basis: FOB
