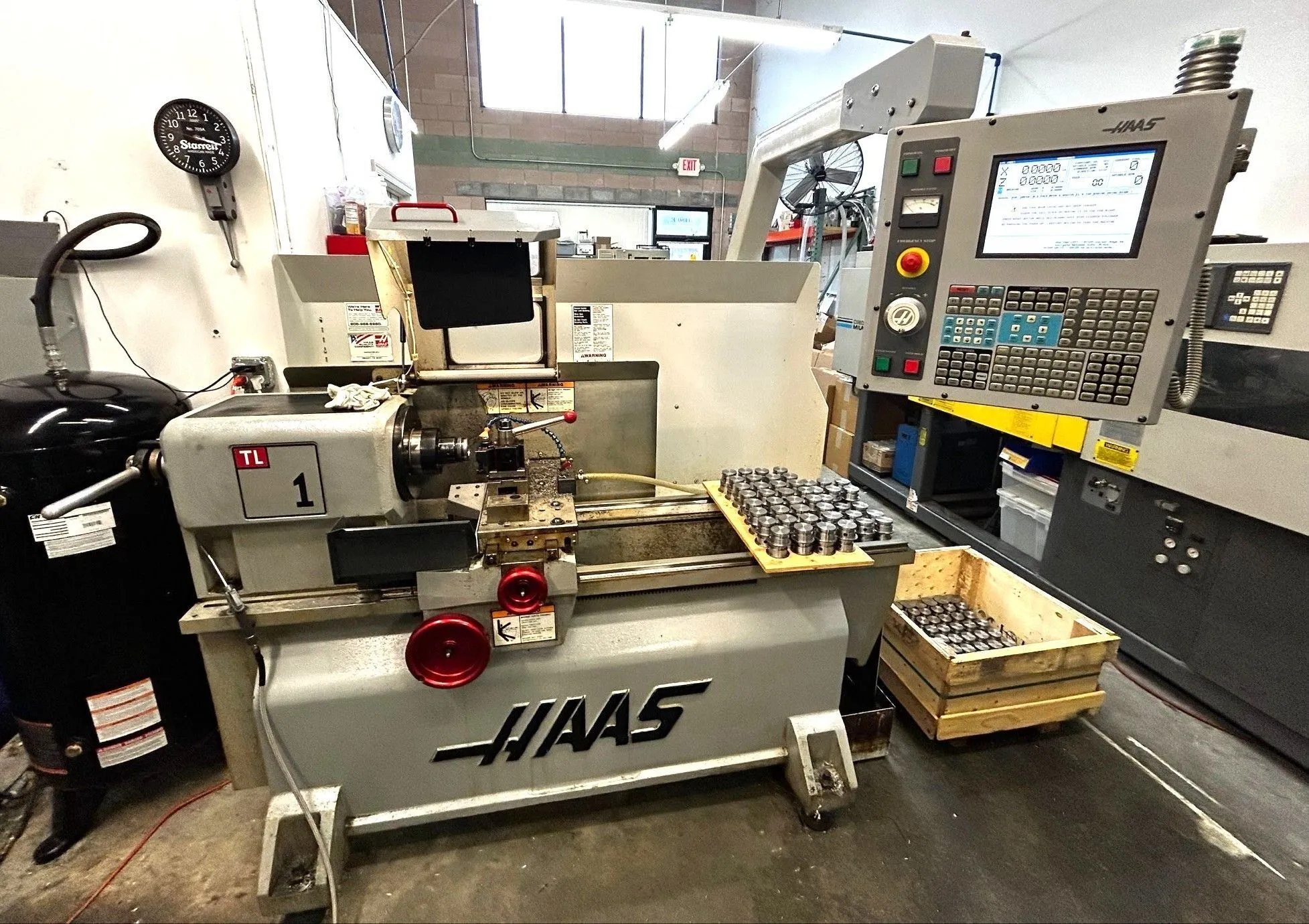

917 Spindle Hours, 10" Chuck, 5C Collet, Tool Post. This low hours originally owned well maintained 2005 Haas TL-1 CNC 2-axis lathe is in excellent condition and is perfect for precision metalworking.
| MAX SWING | 16" | 406.4 mm |
| SWING OVER CROSS SLIDE | 8.5" | 215.9 mm |
| MAX CUTTING DIAMETER | 16" | 406.4 mm |
| MAX CUTTING LENGTH | 30" | 762 mm |
| DISTANCE BETWEEN CENTERS | 30" | 762 mm |
| X-AXIS TRAVEL | 8" | 203.2 mm |
| Z-AXIS TRAVEL | 30" | 762 mm |
| CHUCK SIZE | 10" | 254 mm |
| BAR CAPACITY | 1.75" | 44.45 mm |
| SPINDLE BORE | 2.31" | 58.674 mm |
| SPINDLE NOSE | A2-6 | A2-6 |
| SPINDLE MOTOR | 7.5 hp | 5.6 kW |
| SPINDLE SPEED | 1,800 RPM | 1,800 RPM |
| TURRET POSITIONS | 4-STATION TURRET | 4-STATION TURRET |
5C COLLET
10", 3-JAW MANUAL CHUCK
TOOL POST
COOLANT SYSTEM
SPINDLE DRIVE LINE ACCELERATOR
M19 SPINDLE LOAD MONITOR
INTUITIVE PROGRAMMING SYSTEM (IPS)
RND5 IPS HANDWHEEL
MANUAL JOG
SPINDLE OREINTATION
RIGID TAPPING
QUICK CODE
MACROS
USB
** ORIGINAL OWNER
** MACHINE PRIMARILY USE - MACHINING DOWN POLYETHYLENE
** ACTUAL HOURS AS PICTURED
** AS OF JULY, 2025 - SPINDLE TIME HOURS: 917
** IN PLANT, UNDER POWER, READY FOR IMMEDIATE INSPECTION & PURCHASE
