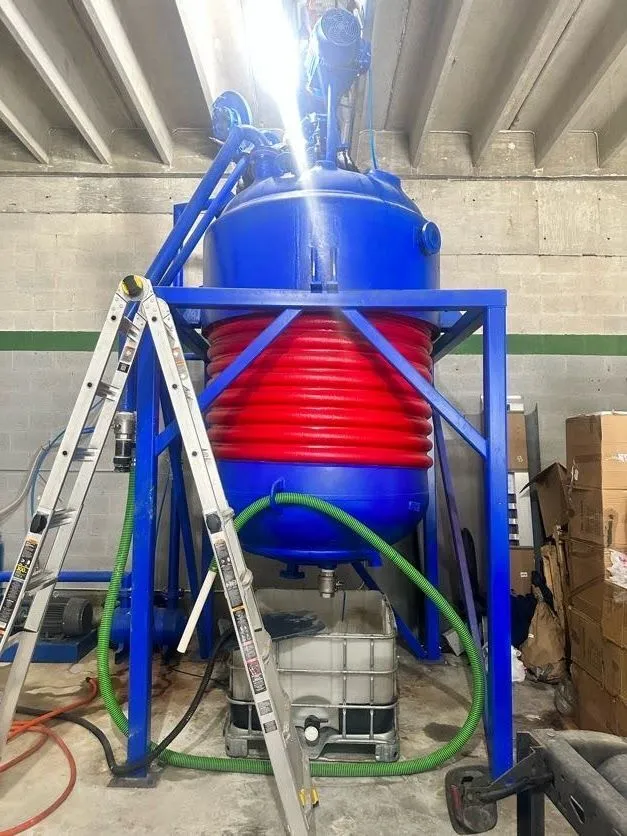

Used 1,000 Gallon Pfaudler RA-60-1000 Glass-Lined Reactor
Approximately 1,000 gallon (3,785 liter) capacity. Vertical design with 60" (1,524 mm) diameter and 72" (1,829 mm) straight side. Glass-lined carbon steel construction. Dished top and bottom heads. Rated 100 psi internal at 450°F (6.9 bar at 232°C). Jacket rated approximately 90 psi at 350°F (6.2 bar at 177°C), half-pipe coil type. Equipped with anchor agitator, top-mounted drive approx 10 HP, top cover manway, multiple nozzles and flanged connections, and glass-lined bottom outlet. Previously used in fertilizer line.
| Capacity | 1,000 gal | 3,785.4 L |
| Internal pressure | 100 PSI | 6.9 bar |
| Jacket Pressure | 90 | 90 |
| Diameter | 60" | 1,524 mm |
| Straight Side | 72" | 1,828.8 mm |
| Material of Construction | Glass-lined carbon steel | Glass-lined carbon steel |
| Dimensions | 60 inches diameter x 72 inches straight side | 60 inches diameter x 72 inches straight side |
