NEW Allied Machine & Engineering 60314S-20FM
Overview
Discover precision drilling with the new AMEC 60314S-20FM straight flute spade drill by Allied Machine & Engineering. With a 14mm min diameter and 45mm drill depth, it features a 20mm flanged shank, ideal for tooling and accessories.
Specs

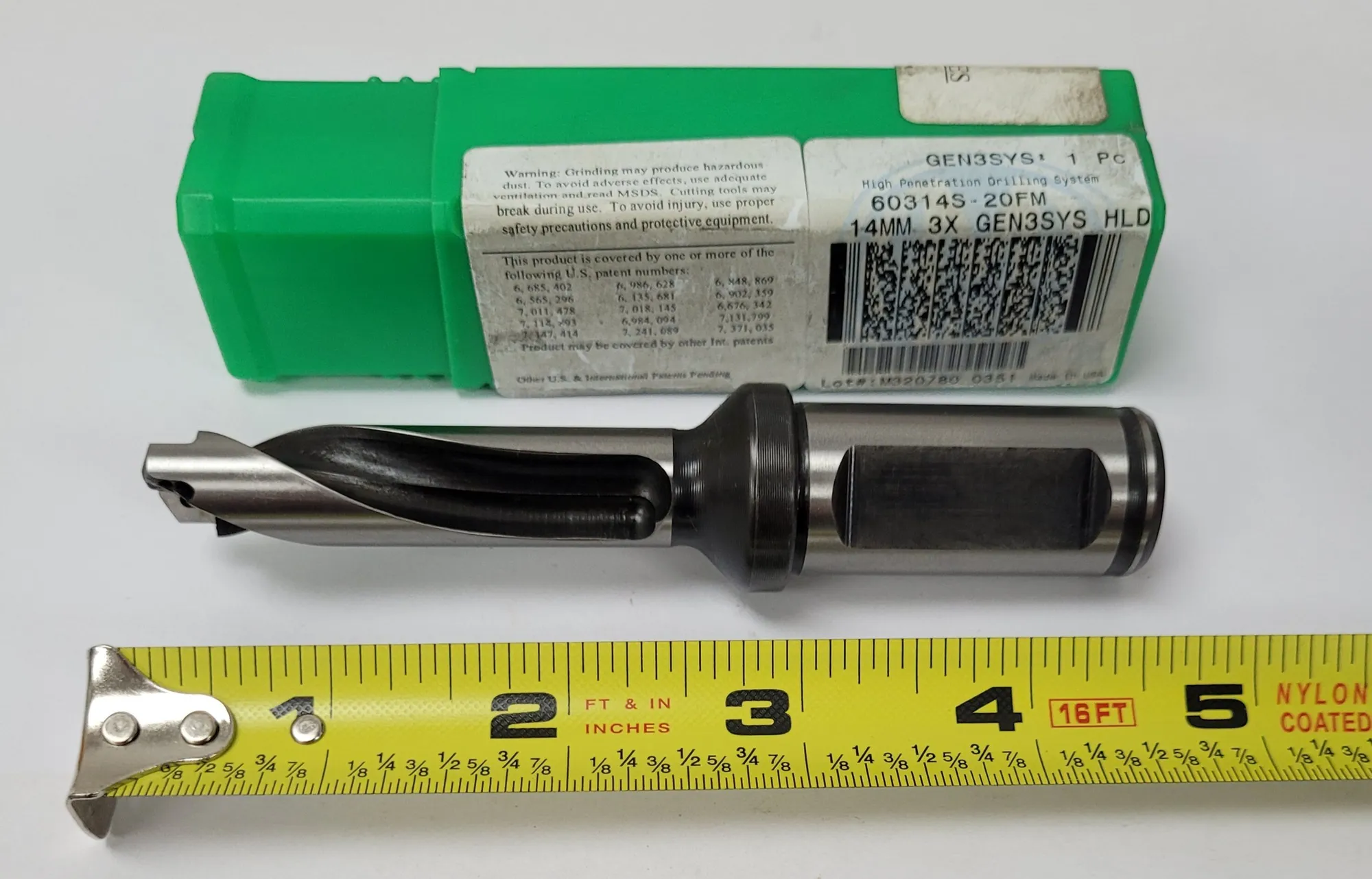

AMEC 60314S-20FM Straight Flute Indexable Spade Drill
New in Box!
Body Length (mm) 72.4mm
Drill Depth (mm) 45mm
Maximum Diameter (Decimal Inch) 0.5905"
Maximum Diameter (mm) 14.99mm
Minimum Diameter (Decimal Inch) 0.5512"
Minimum Diameter (mm) 14mm
Overall Length (mm) 122.4mm
Pipe Tap Rear (mm) 1/8 (BSP)
Series 14
Shank Diameter (mm) 20.00mm
Shank Length (mm) 50mm
Tool Reference Length (mm) 75mm
Length Type 3xD
Coolant Inlet Style Rear TSC
Flat Yes
Flute Type Straight
Shank Type Flanged
