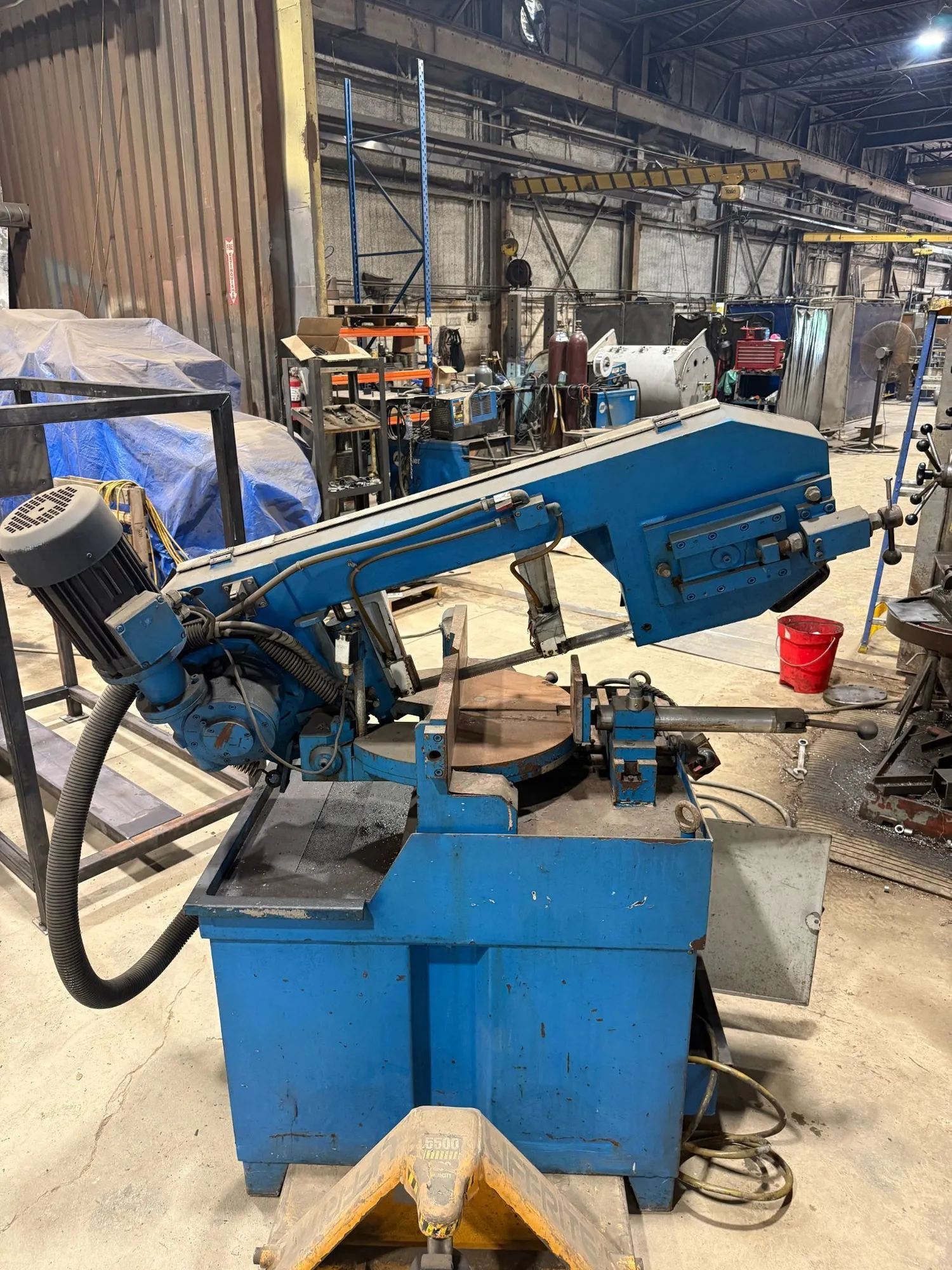

JAESPA W220DG MITER BAND SAW
Manufacturer: Jaespa
Model: W220DG
Serial No.: 20431100
Power: 600V / 60HZ / 3PH
Cutting Capacity (90°): Ø 250 mm (round), 220×220 mm (sq)
Cutting Capacity (45°): Ø 200 mm, 175×175 mm
Cutting Capacity (30°): Ø 130 mm, 125×125 mm
Miter Range: 45° left, 30° right
Blade Speed: 30 / 60 m/min
Blade Size: 2,940(max) × 25 × 0.9 mm
Saw Motor Power: 1.1 kW + 1.5 kW, 400 V
Coolant Tank: 15 L
Support Height: 950 mm
Weight: 450 Kg
Machine Dimensions: 75'' x 39'' x 71''
| Rect-Cap (W) | 8.66" | 219.96 mm |
| Rect-Cap (H) | 8.66" | 219.96 mm |
| Power | 3.5 hp | 2.6 kW |
| Saw Blade Dia. | 0.98" | 24.892 mm |
| Dimensions | 75'' x 39'' x 71'' | 75'' x 39'' x 71'' |
| Weight | 450 Kg | 450 Kg |
JAESPA W220DG MITER BAND SAW
Manufacturer: Jaespa
Model: W220DG
Serial No.: 20431100
Power: 600V / 60HZ / 3PH
Cutting Capacity (90°): Ø 250 mm (round), 220×220 mm (sq)
Cutting Capacity (45°): Ø 200 mm, 175×175 mm
Cutting Capacity (30°): Ø 130 mm, 125×125 mm
Miter Range: 45° left, 30° right
Blade Speed: 30 / 60 m/min
Blade Size: 2,940(max) × 25 × 0.9 mm
Saw Motor Power: 1.1 kW + 1.5 kW, 400 V
Coolant Tank: 15 L
Support Height: 950 mm
Weight: 450 Kg
Machine Dimensions: 75'' x 39'' x 71''
