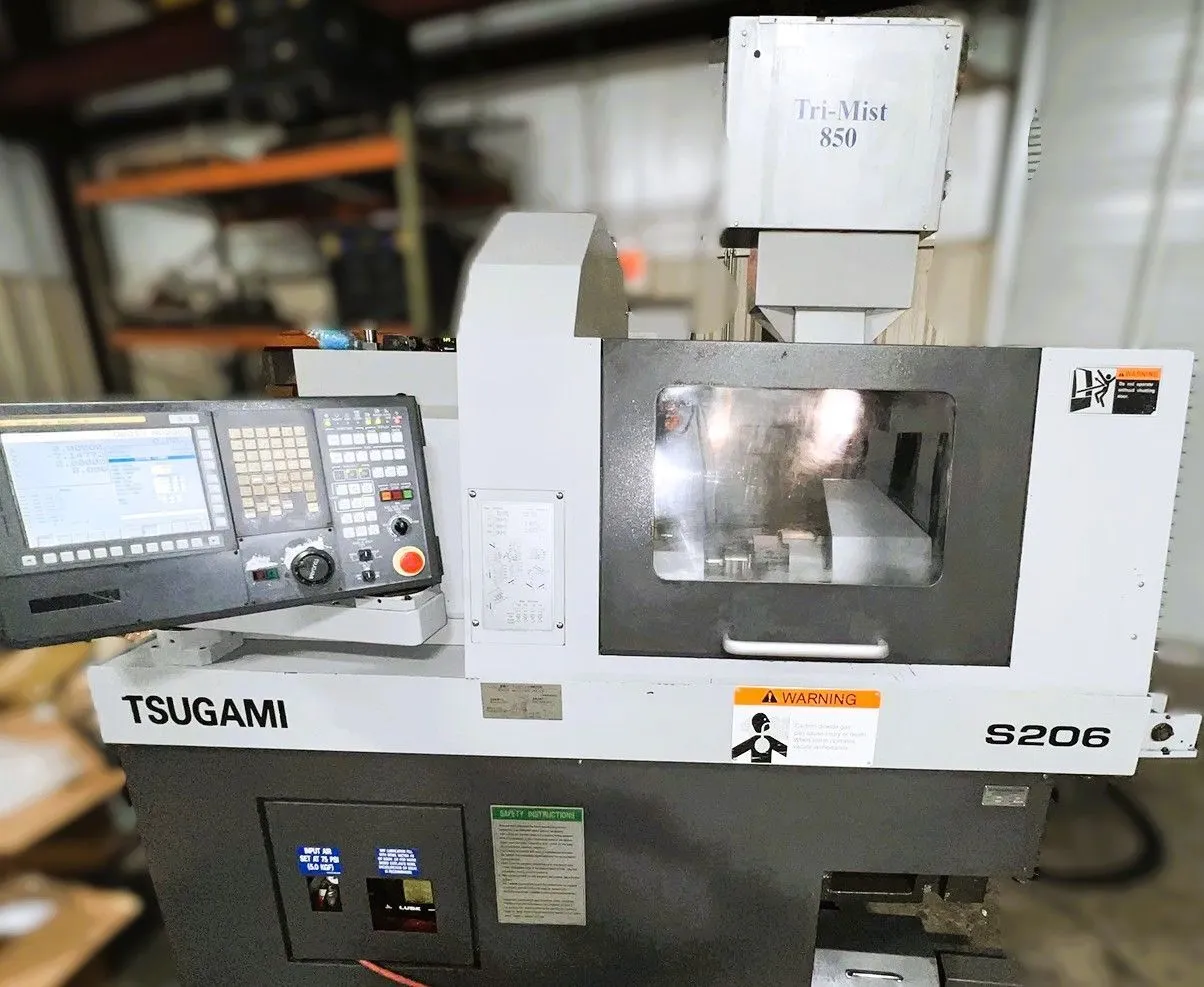

USED 2012 TSUGAMI S206

TSUGAMI S206 CNC Swiss Lathe, New in 2012.
Edge Minuteman 320 SE Bar Feeder.
Back Spindle.
Live Tools Capable.
Long Parts Capable.
C & Y Axis Capabilities.
Parts Catcher.
Coolant Tank.
Chip Conveyor.
Tri-Mist Collector.

Max Turning Diameter:
0.79″ (20 mm)

Max Turning Length:
9.843″ (250 mm)

Max Turning Length with Gripping Unit:
8.26″ (210mm)

Max Bar Capacity:
0.79″ (20 mm)

Max tool positions:
25

Max. Main Spindle Drilling Diameter:
0.39″ (10 mm)

Max. Main Spindle Tapping Diameter:
M8

Max. Back Spindle Chucking Diameter:
0.79″ (20 mm)

Max. Back Spindle Drilling Diameter:
0.31″ (8 mm)

Max. Back Spindle Tapping Diameter:
M6

Max. Cross Drilling Diameter:
0.275 ( 7 mm)/ER11 and 0.393″ (10 mm)/ER16

Max. Cross Tapping Diameter:
M5 x 0.8 (option)

Max. Tool Spindle Slotting Cutter Diameter:
1.18″ (30 mm)

Max. Tool Spindle Drilling Diameter:
.314″ (8 mm)

Max. Back Tapping Diameter:
M5

Main Spindle Indexing:
360° (Full C-Axis)

Main Spindle Bore:
.79″ (20 mm)

Main Spindle Speed:
10000 RPM

Back Spindle Motor:
3.7 kw

Back Spindle Indexing:
60° (Full C-Axis)

Back Spindle Speed:
2000 RPM

Cross Turn Stations:
8

Cross Drill Stations:
3

Main/Sub Drill Stations:
5

Sub Drilling Stations::
4

Live cross mill stations:
2

Live sub milling stations:
4

Driven Tool Speed:
8000 RPM

DRIVEN TOOL MOTOR:
75 kw (Front Tool Post) 1 kw (Rear Tool Post)

MACHINE EQUIPPED WITH
Fanuc 32i-MB CNC Control
Controlled Axes (Liner Axes) X1/ X2/ Y1/ Y2/ Z1/ Z2
Edge Minuteman 320 SE Bar Feeder
Back Spindle
Live Tools Capable
Long Parts Capable
C & Y Axis Capabilities
MPG Handwheel Control
Main & Back Spindle Synchronization
High Speed Rapid Travers: 944 IPM
High Speed Program Processing
Absolute Position Detection
Automatic Lubrication System
Part Catcher
Coolant Tank
Chip Conveyor
