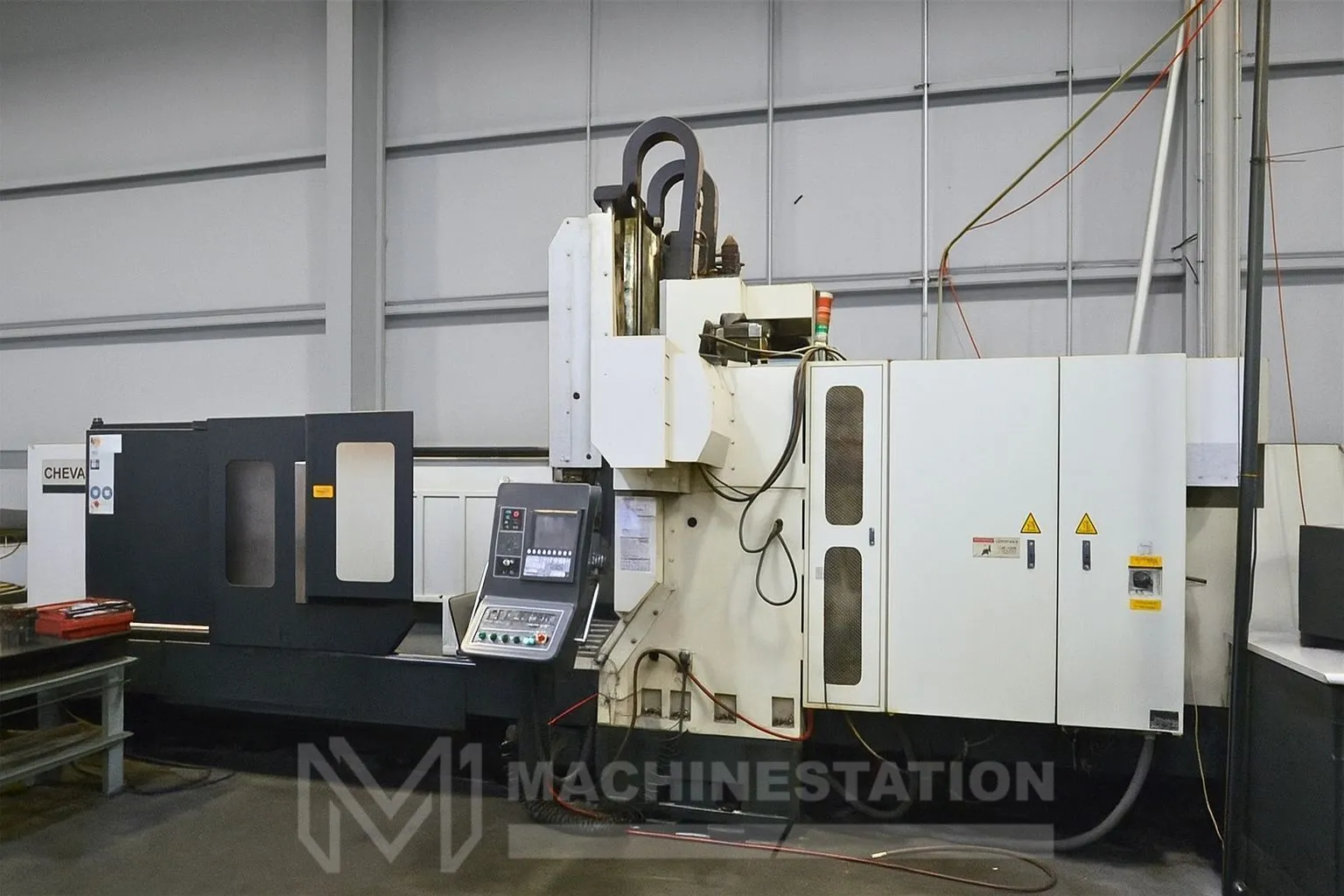

USED 2015 CHEVALIER FVM-3016DCL
Overview
Specifications
| X | 122" | 3,098.8 mm |
|---|---|---|
| Y | 59" | 1,498.6 mm |
| Z | 30.7" | 779.78 mm |
| Power | 30 hp | 22.4 kW |
| RPM | 6,000 RPM | 6,000 RPM |
| # ATC | 20 | 20 |
| Taper | CAT-50 | CAT-50 |
| Table-W | 57" | 1,447.8 mm |
| Table-L | 122" | 3,098.8 mm |
| Control | CNC (Fanuc Oi-MD) | CNC (Fanuc Oi-MD) |
| Dimensions | 391″ x 178″ x 160″ High | 391″ x 178″ x 160″ High |
| Weight | 59,400 lbs | 59,400 lbs |
Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.
Equipment is sold AS-IS, WHERE-IS. All sales are final.
Make: Chevalier
Model: FVM-3016DCL
Year: 2015 (Installed in 2018)
Condition: Used – Good
Features:

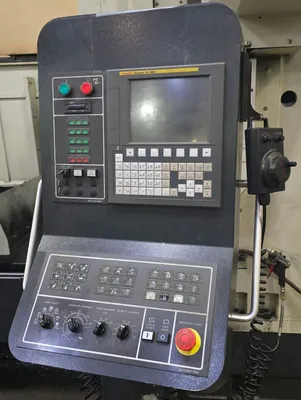

Fanuc Oi-MD CNC Control
122″ X 57″ Table
PCMCIA Card Slot
Rigid Tapping
Remote Jog Control
Coolant System
Travels:
X-Axis: 122″
Y-Axis: 59″
Z-Axis: 30.7″
Distance Between Columns: 67″
Spindle Nose to Table (Min.- Max.): 7.87″- 34.64″
Rapid Feedrate X, Y & Z Axis: 591 IPM
Cutting Feedrate: 276 IPM
Table:
Length: 122″
Width: 57″
T-Slot(Size X Number X Pitch): 0.86″ X 7 X 7.08″
Max Weight on Table: 14,330 lbs

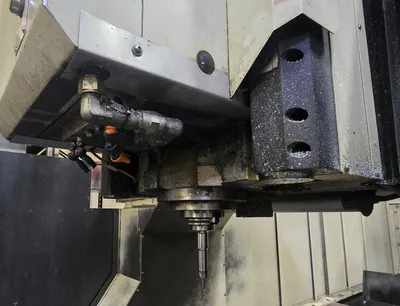

Spindle:
Taper Size: CAT-50
Speed Range: 6000 RPM
Spindle Power: 30 HP
Automatic Tool Changer:
CAT-50 Taper
Capacity: 20 Tools
Max Tool Weight: 33 lbs
Max Tool Length: 11.81″
Max Tool Dia.: 4.9 – 9.05″
General:
Air Required: 100 psi 4 scfm
Power: 230v / 60 Hz / 3-Phase / 50 Kva
Overall Machine Dimensions: 391″ x 178″ x 160″ High
Weight: 59,400 lbs.
Equipped With
20 Station Side Mount Tool Changer
50 Taper Gear Head 6000 RPM Spindle
Powerful 30 HP high torque spindle motor
Through Spindle Coolant – Ready (Pump Needed)
Base Flush Chip Disposal with Dual Auger
Chip Conveyor
Chiller Unit
