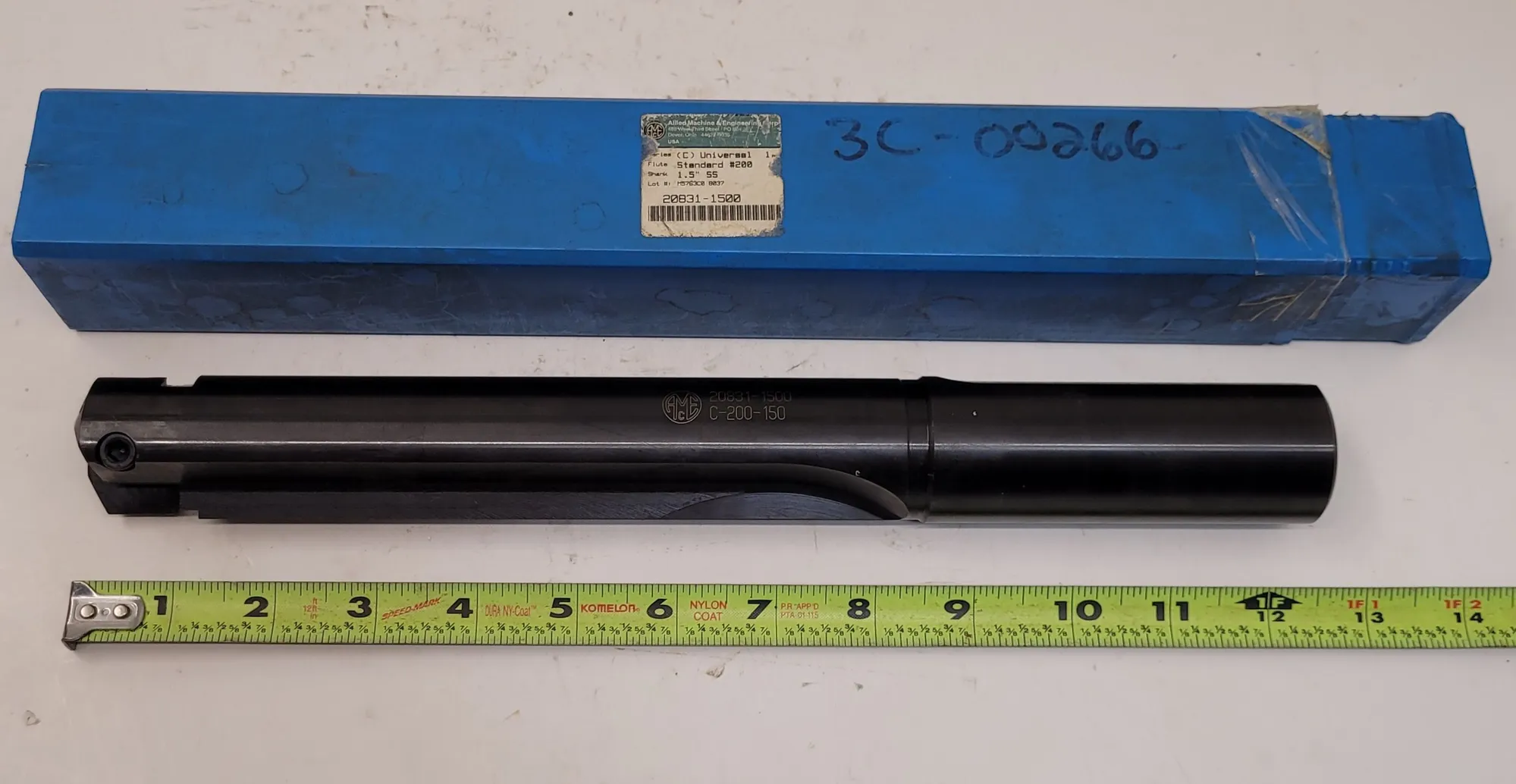

USED Allied Machine & Engineering 20831-1500

Allied Machine & Engineering AMEC 20831-1500 C Series Indexable Spade Drill, used, 12-1/2" OAL, straight flute, 1-1/2" to 2-3/8" diameter range, perfect for tooling and drilling needs. Standard length, lathe shank type.

AMEC 20831-1500 | C Series Indexable Spade Drill

New in Box
12-1/2" OAL
Flute Length (Inch) 8-1/2"
HP Reference Length (Inch) 8-51/64"
Shank length (Inch) 4"
Maximum Diameter (Inch) 2-3/8"
Minimum Diameter (Inch) 1-1/2"
Shank Diameter (Inch) 1-1/2"
Pipe Tap Side (Inch) 1/4"
Series C
Shank Type Lathe
Flute Type Straight
Length Type Standard
Deep Hole No
