NEW Sandvik Coromant 880-D2300C4-03

Discover precision with the Sandvik 880-D2300C4-03 Indexable Insert Drill, perfect for 23mm drilling tasks. Featuring a modular shank, right-hand cutting direction, and a robust new-in-box condition. Maximize efficiency today!

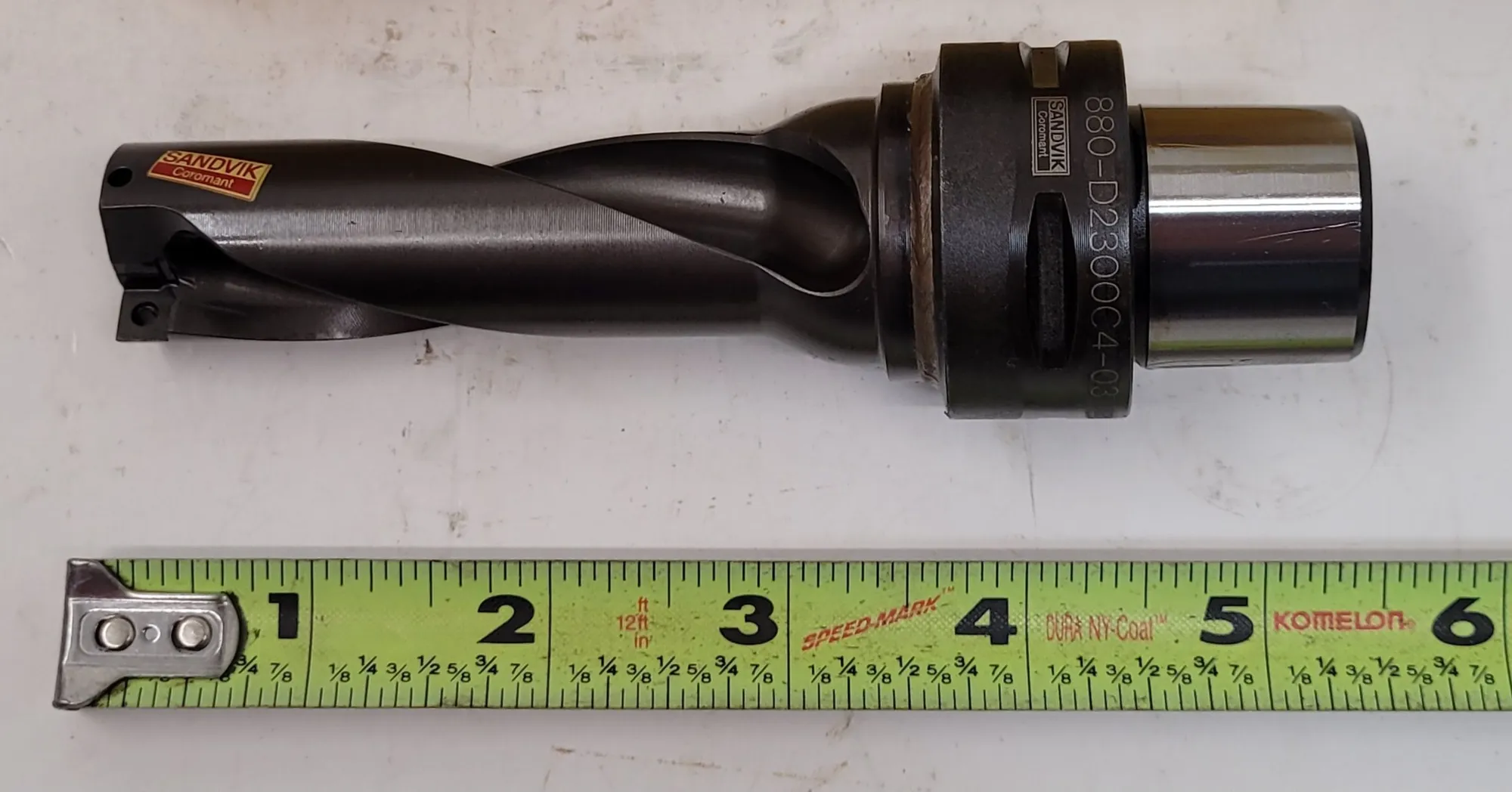

Sandvik 880-D2300C4-03 Indexable Insert Drill - 23mm

New in Box
Maximum Drill Diameter (mm) 23.00
Maximum Drill Diameter (Decimal Inch) 0.9449
Maximum Drill Depth (Decimal Inch) 2.8524
Maximum Drill Depth (mm) 69.45
Shank Type Modular Connection
Shank Diameter (Decimal Inch) 1.5748
Shank Diameter (mm) 40.00
Number of Drill Inserts 2
Cutting Direction Right Hand
Maximum Drill Depth Range (Decimal Inch) 2.0000 to 3.0000
Maximum Drill Depth Range (mm) 50.00 to 75.00
Flute Length (Decimal Inch) 3.3622
Flute Length (mm) 72.00
Body Length (mm) 110.55
Body Length (Decimal Inch) 2.8346
Shank Length (Decimal Inch) 0.9628
Shank Length (mm) 24.45
OAL: 5-3/8”
