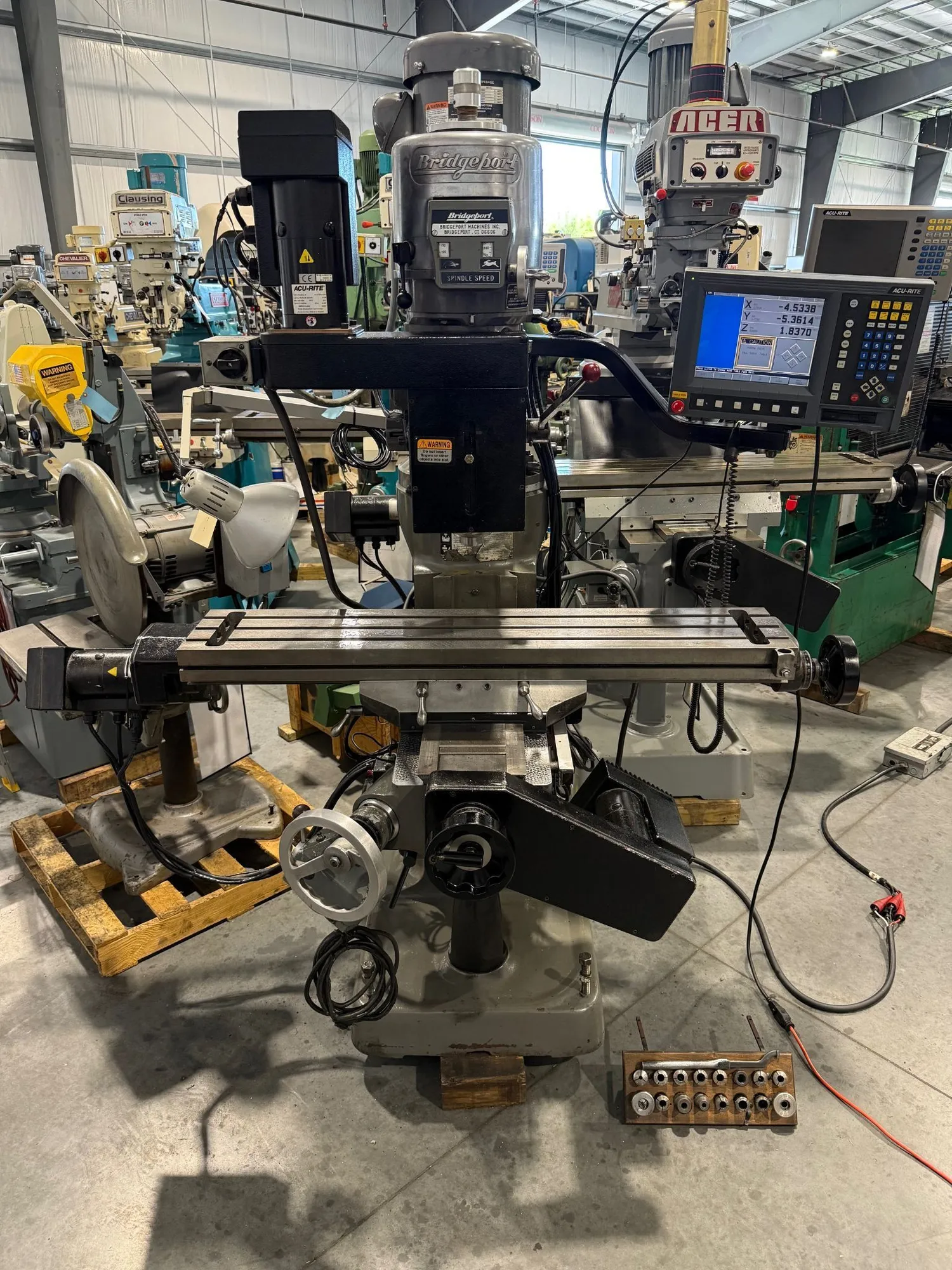

USED 1998 BRIDGEPORT SERIES 1

BRIDGEPORT 3 Axis CNC ACU-RITE MILLPWR 1998’ Milling Machine #7601

BRIDGEPORT 3 Axis CNC ACU-RITE MILLPWR 1998’ Milling Machine #7601
Reference # 7601
Model # Series 1
Serial # 274211
Year of manufacture- 1998’
Table working surface- 9” x 48”
Number of t-slots- (3)
Range:
Longitudinal- 31”
Cross- 12”
Vertical, knee- 16”
Quill- 5”
Maximum/Minimum distance, spindle nose to table- 18.5"/2.5"
Maximum/Minimum distance, centerline of spindle to face of column- 18.75"/6.75"
Ram travel- 12”
Head tilt, left & right- 90 degrees
Head tilt, front to rear, each way- 45 degrees
(3) Power quill feeds- .0015, .003, .006 I.P.R.
Infinitely variable spindle speeds, two ranges-60-4,200 R.P.M
Spindle taper- R-8

ACU-RITE MILLPWR
Crome ways
Three-axis digital readout during manual operations
Ballscrews installed in the table and saddle
BIJUR one-shot lubrication system
2 H.P. 3/60/230 spindle drive motor and electrical controls
Machine is wired for 230 volt operation.
Machine weight- 2000 Lbs.
Machine dimensions- 76” L x 57” W x 83’’ H
Machine location- F.O.B. Sarasota, Florida
