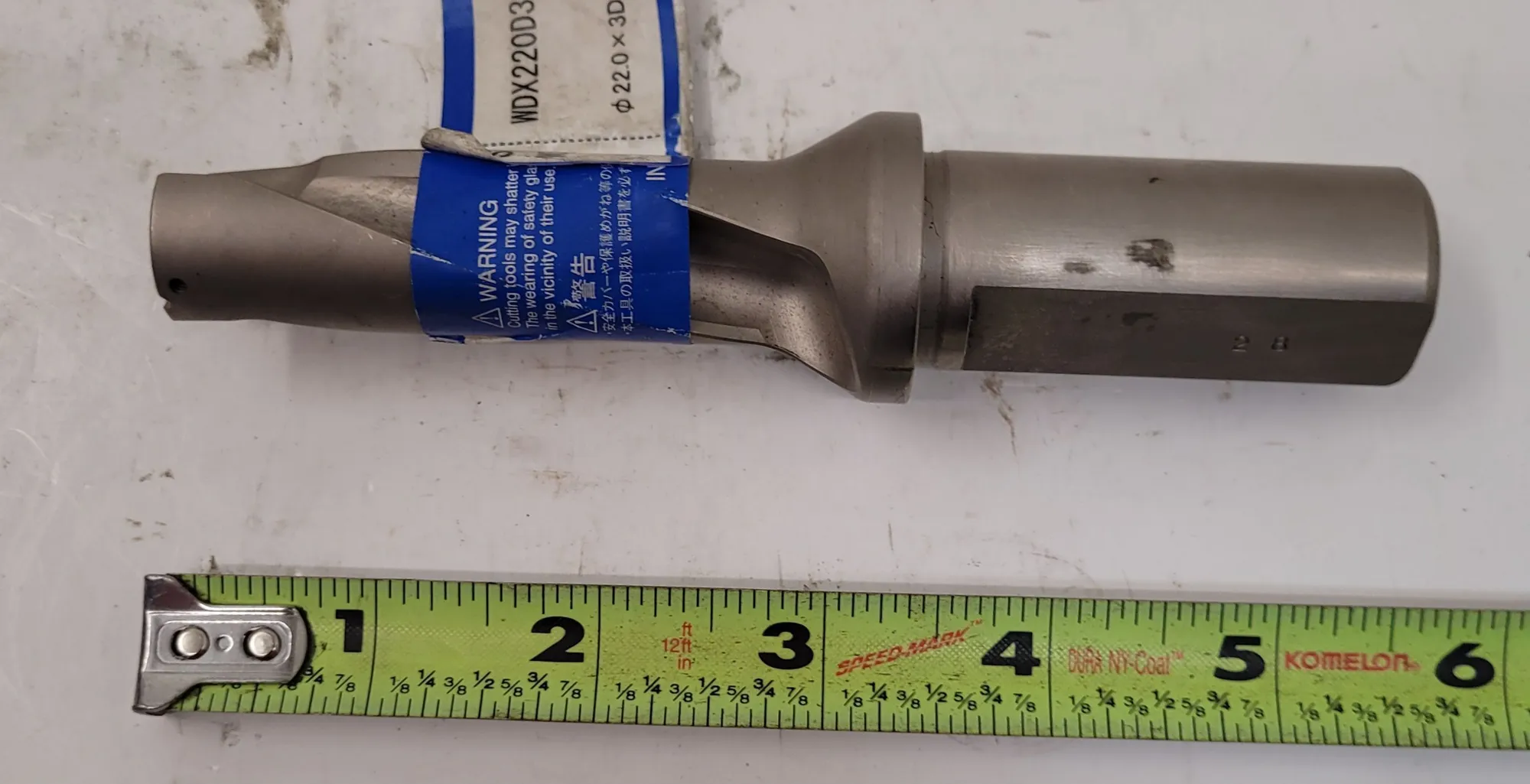

NEW SumiDrill WDX220D3S25
Overview
New SumiDrill WDX220D3S25 Indexable Drill with a maximum drill diameter of 22mm and depth of 69mm. Features a straight-cylindrical shank, right-hand cutting direction, and coolant through. Ideal for precise and efficient drilling applications.
Specs
SumiDrill WDX220D3S25 Indexable Drill
NEW
Maximum Drill Diameter (mm) 22.00
Maximum Drill Depth (Decimal Inch) 2.7165
Maximum Drill Depth (mm) 69.00
Shank Type Straight-Cylindrical
Shank Diameter (Decimal Inch) 0.9843
Shank Diameter (mm) 25.00
Number of Drill Inserts 2
Cutting Direction Right Hand
Maximum Drill Depth Range (Decimal Inch) 2.0000 to 3.0000
Maximum Drill Depth Range (mm) 50.00 to 75.00
Tool Material Steel
Drill Depth by Diameter Ratio 3xD
Flute Length (Decimal Inch) 2.7165
Flute Length (mm) 69.00
Body Length (mm) 84.00
Body Length (Decimal Inch) 3.3071
Shank Length (Decimal Inch) 2.2047
Shank Length (mm) 56.00
Neck Diameter (mm) 33.00
Tool Application Drilling
Insert Compatibility WDXT 063006
Collar Diameter (Decimal Inch) 1.2992
Collar Diameter (mm) 33.00
Coolant Through Yes
