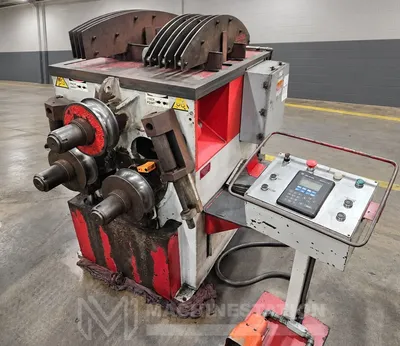

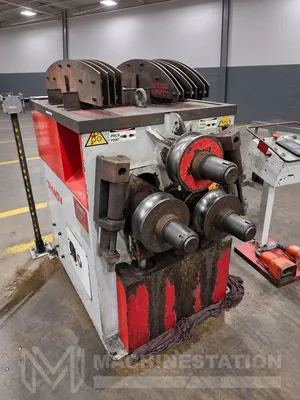

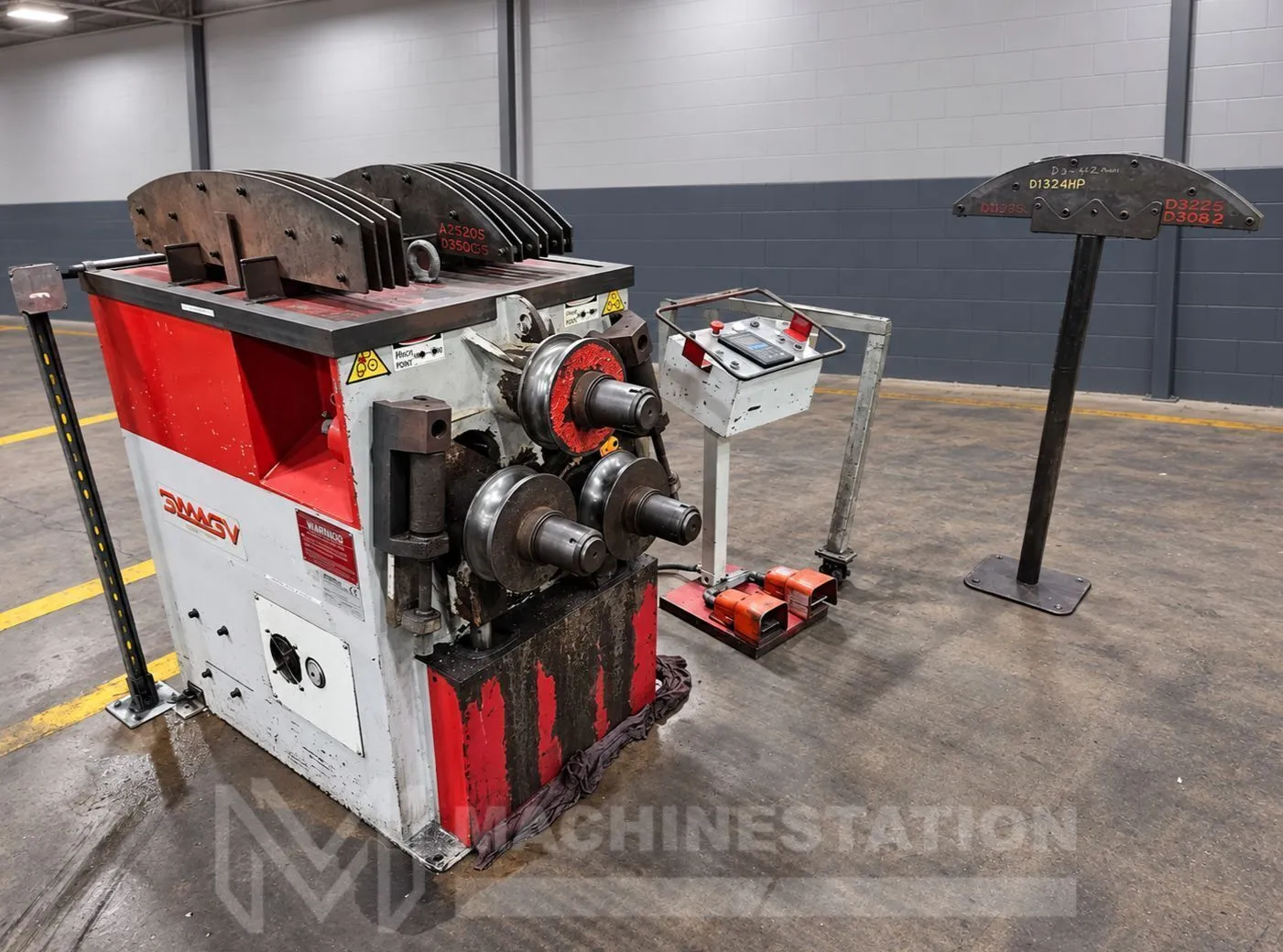

USED 2002 SIMASV CH 3380

Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

Equipment is sold AS-IS, WHERE-IS. All sales are final.

Features:

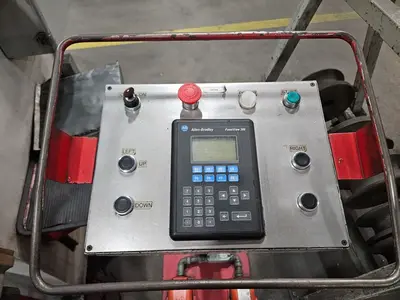

Pedestal Mounted Operator Control Console
Allen-Bradley PanelView 300 PLC

Specifications:

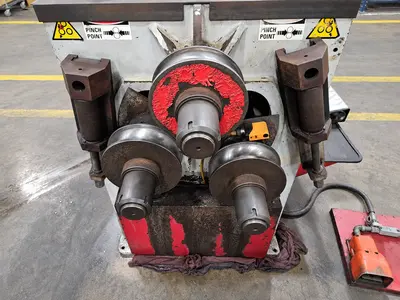

Number of Driven Rolls: 3
Central Shaft Diameter: 3.14" (80 mm)
L1 x L2 x Thickness: 3.14" x 3.14" x 0.31" ((80 x 80 x 8 mm)
Roll Diameter: 9.64" (245 mm)
Roll Rotation Speed: 8 RPM
Linear Working Speed: 6.1m/min
Central/Side Roll Centre Distance: 6.5" (165 mm)
Roll Stroke: 7.08" (180 mm)
Roll Adjustment: Hydraulic

General:

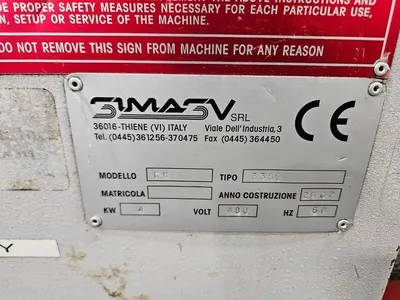

Power: Main Motor 5.4 hp / 480 v / 60 Hz
Machine Dimensions: 37.5" x 55.1" x 51.1" High Approx.
Weight: 3,527 lbs. Approx.
