USED 1998 WALKER VP-4020
Overview
Description

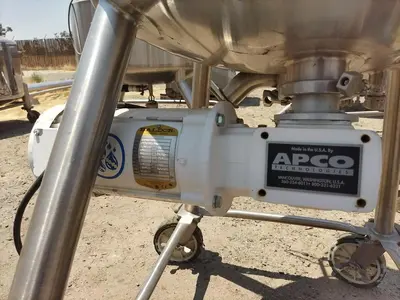

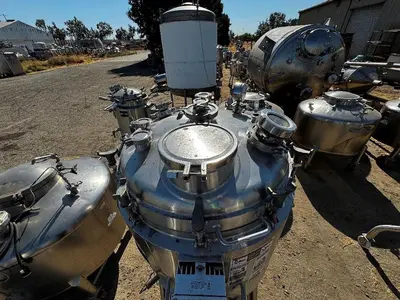

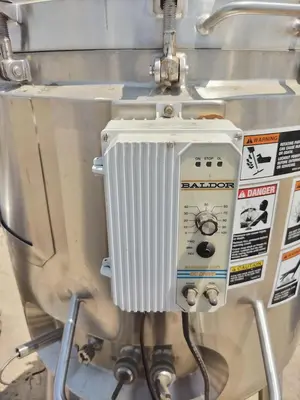

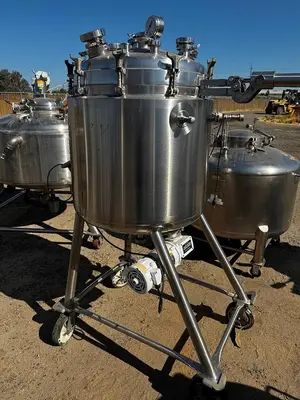

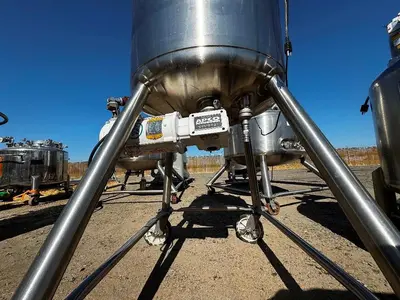

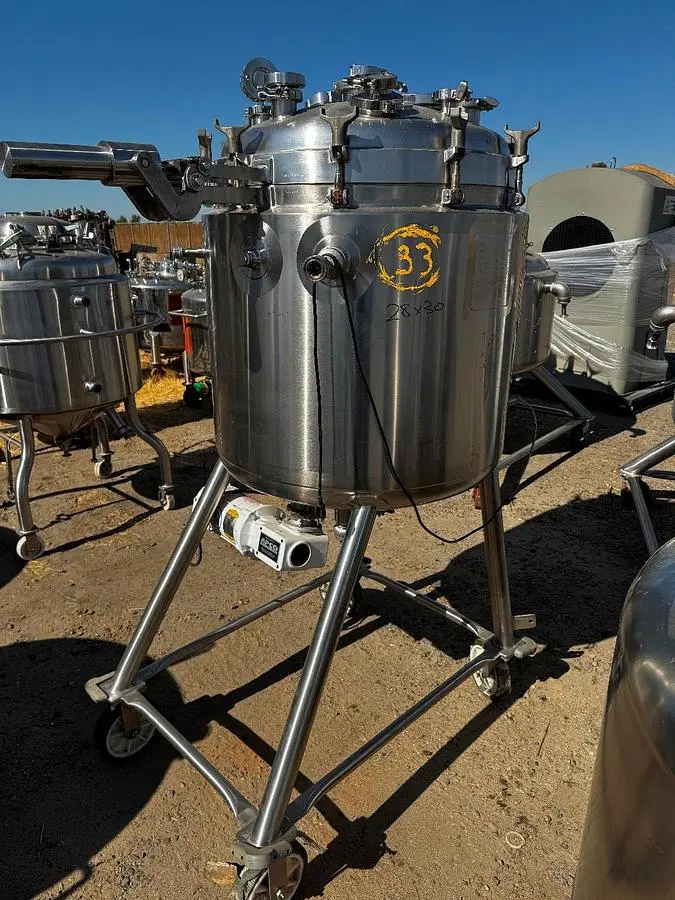

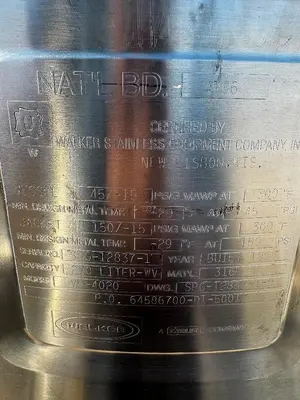

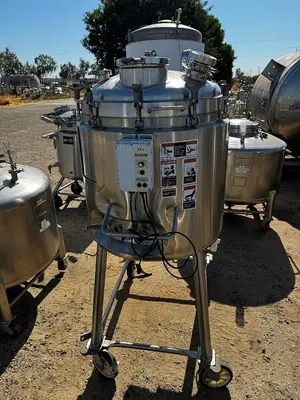

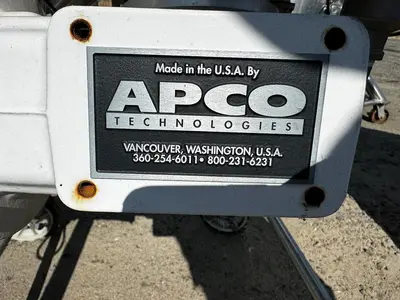

Walker 250-liter fermenter tank (66 Gallons) with 28" diameter x 27" straight side, constructed of 316L stainless steel and mounted on a caster frame. Tank features a clamped removable top, dish top and bottom, (8) top ports from 1" to 4" including a sight glass and (1) 8" handhole. The bottom outlet is approx. 1.5" CBO. Equipped with bottom-mounted agitation powered by an APCO 3/4 HP drive and VFD. Internally rated for 45 PSI @ 300°F. Jacket rated for 150 PSI @ 300°F. National Board #4106. ASME Code.
Specifications
Stock Number: 5991488
Manufacturer: Walker
Model: VP-4020
Year: 1998
Serial Number: SPG-12837-1
Gallons: 66 (250 Liter)
Dimensions: 28" diameter x 27" straight side

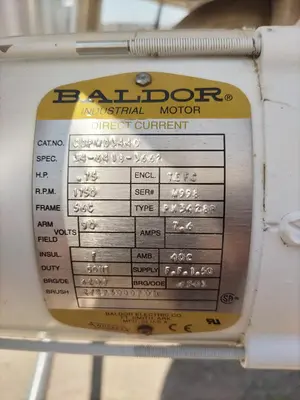

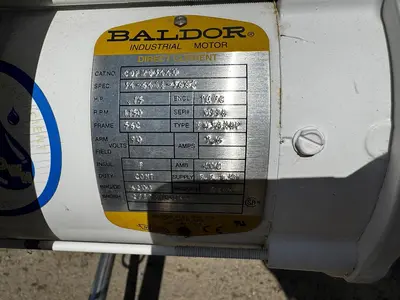

Agitation: Bottom-mounted 3/4 HP with VFD
Jacket: Yes, 150 PSI @ 300°F
Materials of Construction: 316L Stainless Steel
Pressure Rating: 45 PSI @ 270°F internal
Jacket Pressure: 45 PSI @ 300°F, Full Vacuum
Basis: FOB
