USED 2002 ALLOY PRODUCTS 114109-002
Overview
Description

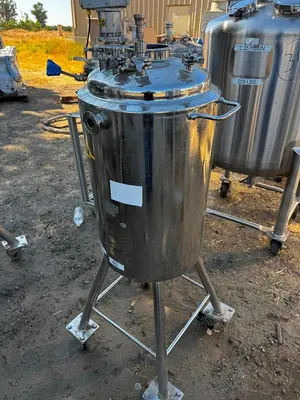

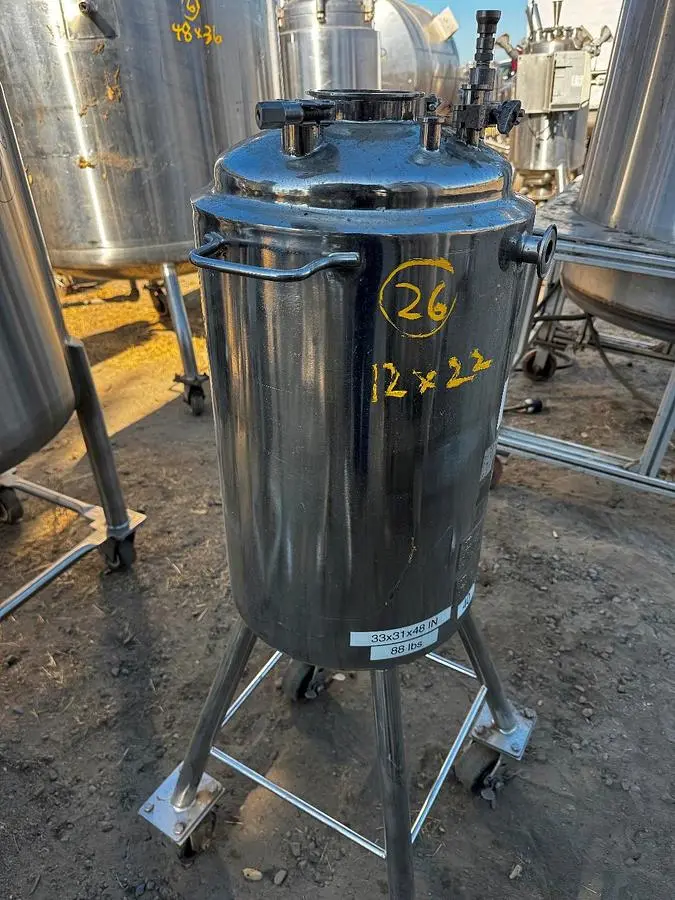

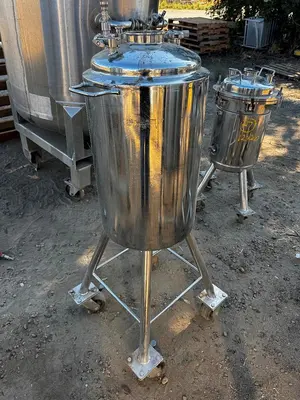

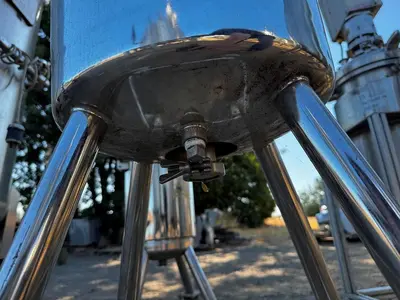

Alloy Products 50-Liter Jacketed Pressure Tank constructed of 316L stainless steel with a 304 stainless steel jacket. The tank measures 14" diameter x 20" straight side and features a welded top and dish top & bottom. Equipped with a 4" center top opening, (4) 1/2" ports, (1) 2" top port, and a 2" center bottom outlet. Mounted on casters for mobility. Internally rated 115 PSI @ 200°F; jacket rated 45 PSI @ 200°F. Built in 2002. ASME Code. National Board #28849.
Specifications
Stock Number: 5991481
Manufacturer: Alloy Products
Model: 114109-002
Year: 2002
Serial Number: 114109-002
Gallons: 13 (50-Liter)
Dimensions: 14" diameter x 20" straight side
Jacket: Yes, 304 Stainless Steel
Materials of Construction: 316L Stainless Steel
Jacket Pressure: 45 PSI @ 200°F
Pressure Rating: 115 PSI @ 200°F (internal)
Basis: FOB
