Tank, 1,320 Gallon (5,000 Liter), Jacketed, Agitated, 316L Stainless Steel, 100 PSI, #5991478
Overview
Description

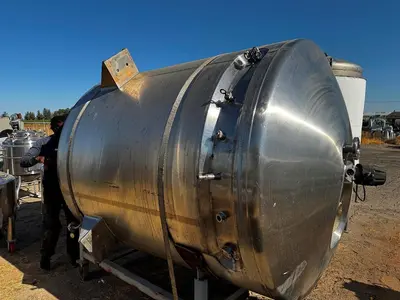

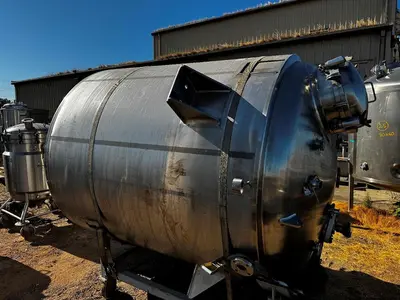

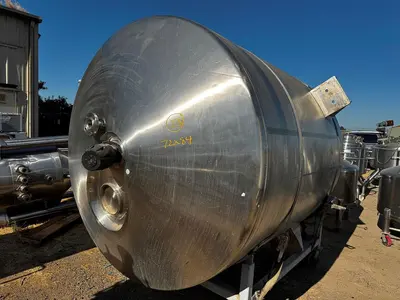

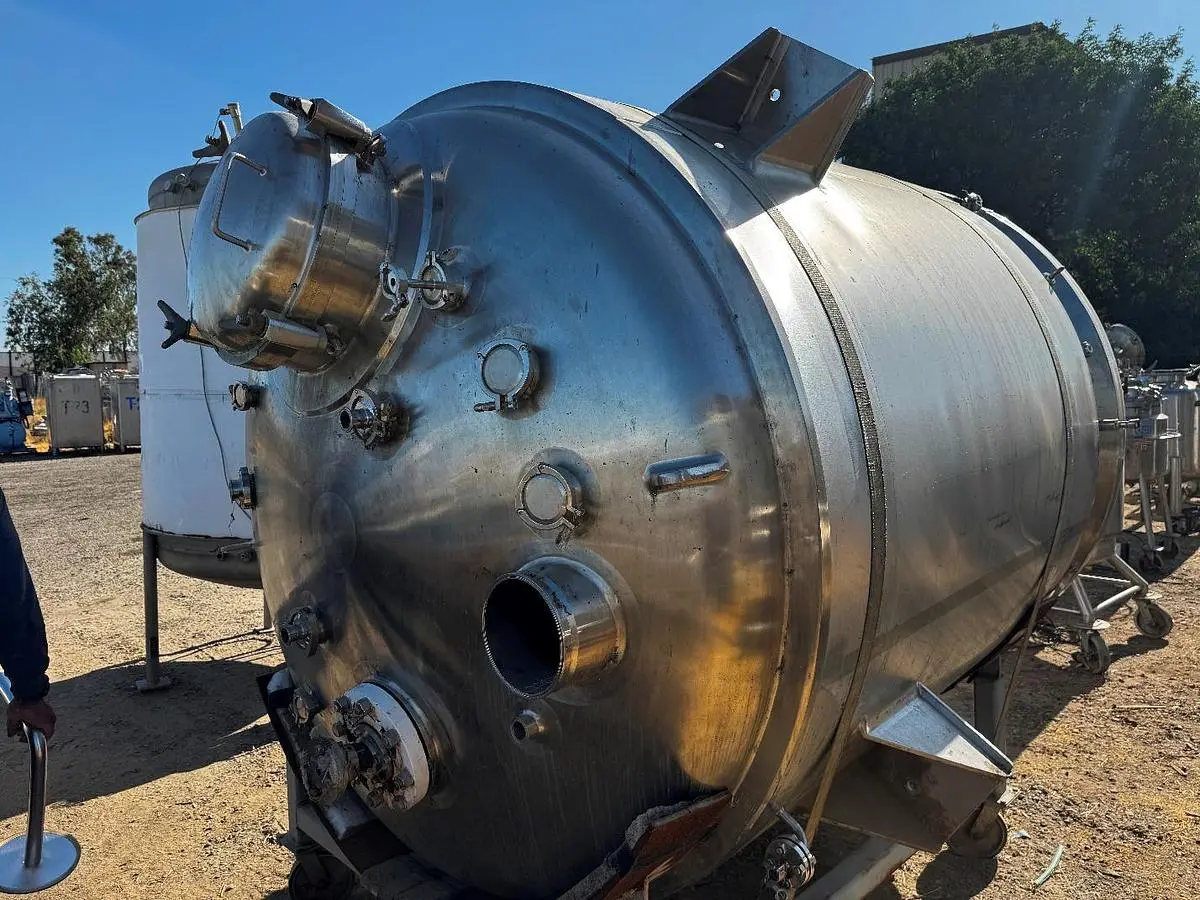

Precision Stainless 1,320-gallon (5,000-liter) jacketed stainless steel reactor tank, 316L Stainless Steel construction, with internal agitation via stainless steel shaft and prop. Unit measures 72" diameter x 84" straight side and includes a welded top with dish top and bottom heads. Features include a 24" top manway with cover, (11) top ports including a flanged port for agitator mounting, and a 2" center bottom outlet with valve. Lug-mounted with six side ports. Internally rated for 52 PSI @ 320°F; jacket rated for 172 PSI @ 320°F. Includes stainless steel shaft & prop but less drive. ASME Code constructed. National Board #6319.
Specifications
Stock Number: 5991478
Manufacturer: Precision Stainless
Year: 1995
Serial Number: 94001-05R1
Gallons: 1,320 (5,000 Liter)
Dimensions: 72" diameter x 84" straight side
Agitation: Stainless steel shaft and prop (no drive)
Materials of Construction: 316L Stainless Steel
Pressure Rating: 52 PSI @ 320°F (internal)
Jacket Pressure: 172 PSI @ 320°F
Basis: FOB
