USED CHEVALIER FM-3VKH
Overview
Specs

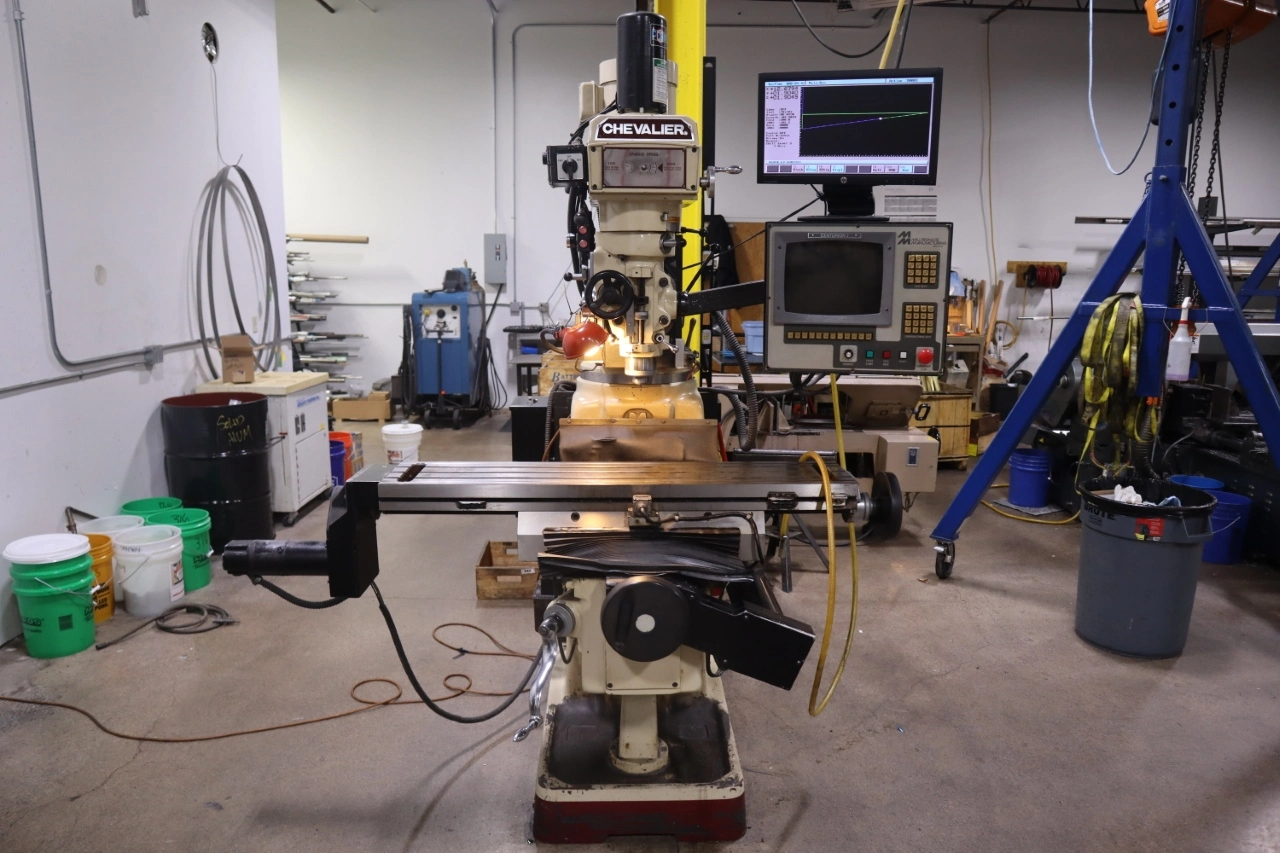

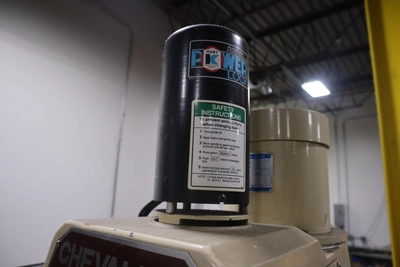

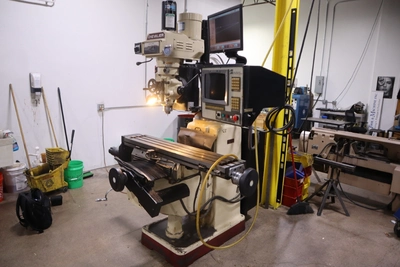

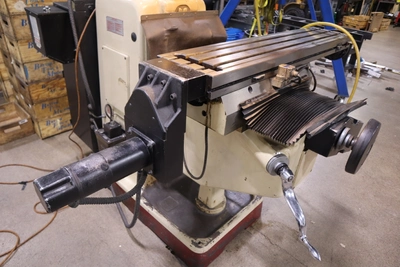

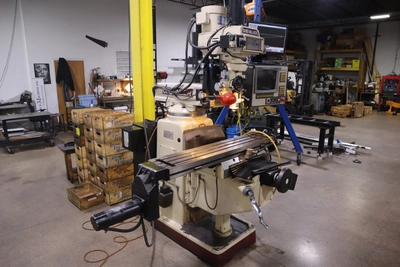

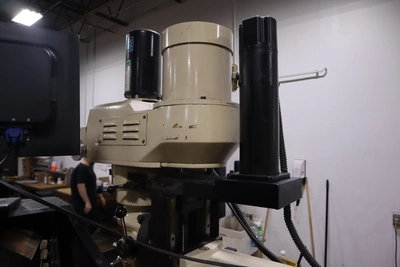

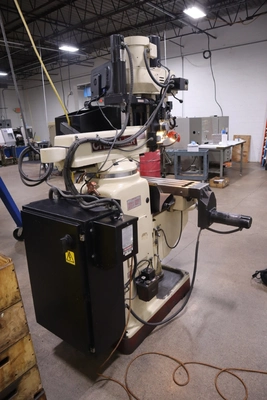

Lot 160: Chevalier FM-3VKH 3-Axis CNC Knee Mill, 50"x10" Table, Kurt Power Drawbar
Electrics:
220 Volt, 3 Phase
Main Unit Approx Weight: 3400.00 lbs
Main Unit Dimensions (in inches): Length: 78.00" Width: 70.00" Height: 92.00"
Specs:
Table Size: 10"x 50"
Longitudinal Travel: 30 3/4"
Cross Travel: 15 3/8"
Quill Travel: 5"
Power Quill Feeds: 0.0015", 0.003", 0.006"
Knee Travel: 15"
Spindle Nose to Table Min-Max: 1 5/8" - 16 1/2"
Spindle Center to Column Distance: 4" - 25 5/8"
Spindle Taper: R-8 or NST-30
Spindle Speeds: 60-4500
Spindle Drive: 3 HP
Head Swivel Left to Right: 90 Degree
Head Tilt Front to Back: 45 Degree
Seller Company: Batten Tool & Machine
Seller Contact: DANIEL BATTEN Phone: (952) 942-9198
Location Contact: DANIEL BATTEN Phone: (952) 942-9198
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Loading Dock: 10' x 10' Ground Level
Removal Dates and Times: This item must be removed between Tuesday, November 17, 2026 and Friday, December 4, 2026
Equipped With

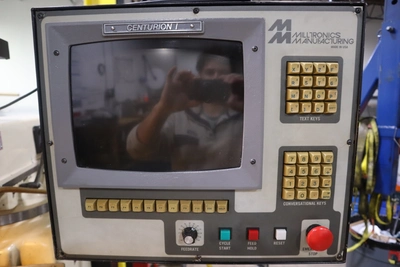

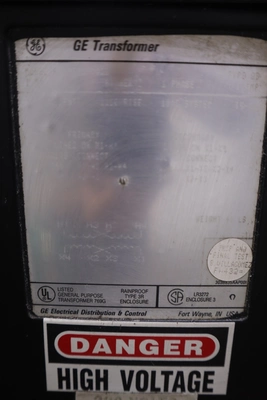

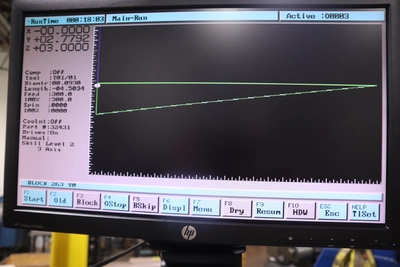

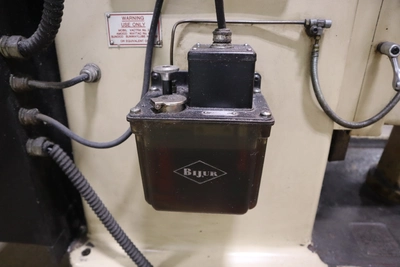

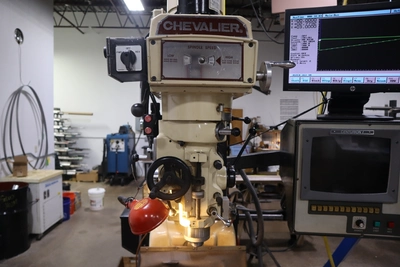

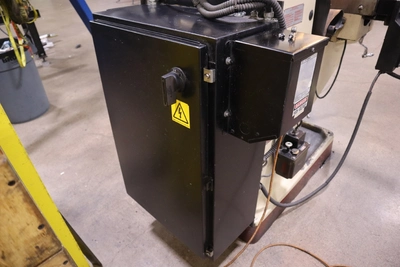

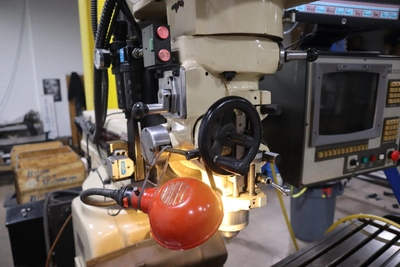

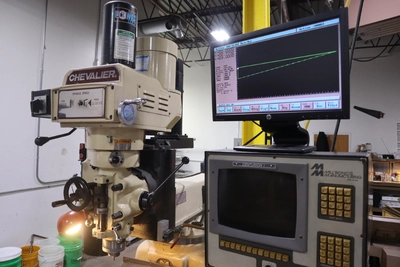

Centurion I CNC Control (Screen Out) retroffited with Monitor, 50"x10" Table, 50 - 4500 RPM Spindle, R8 Spindle Taper, One Shot Lube, Worklight, Knee Handle, Quill Handle, GE Transformer Model HO-918180011
