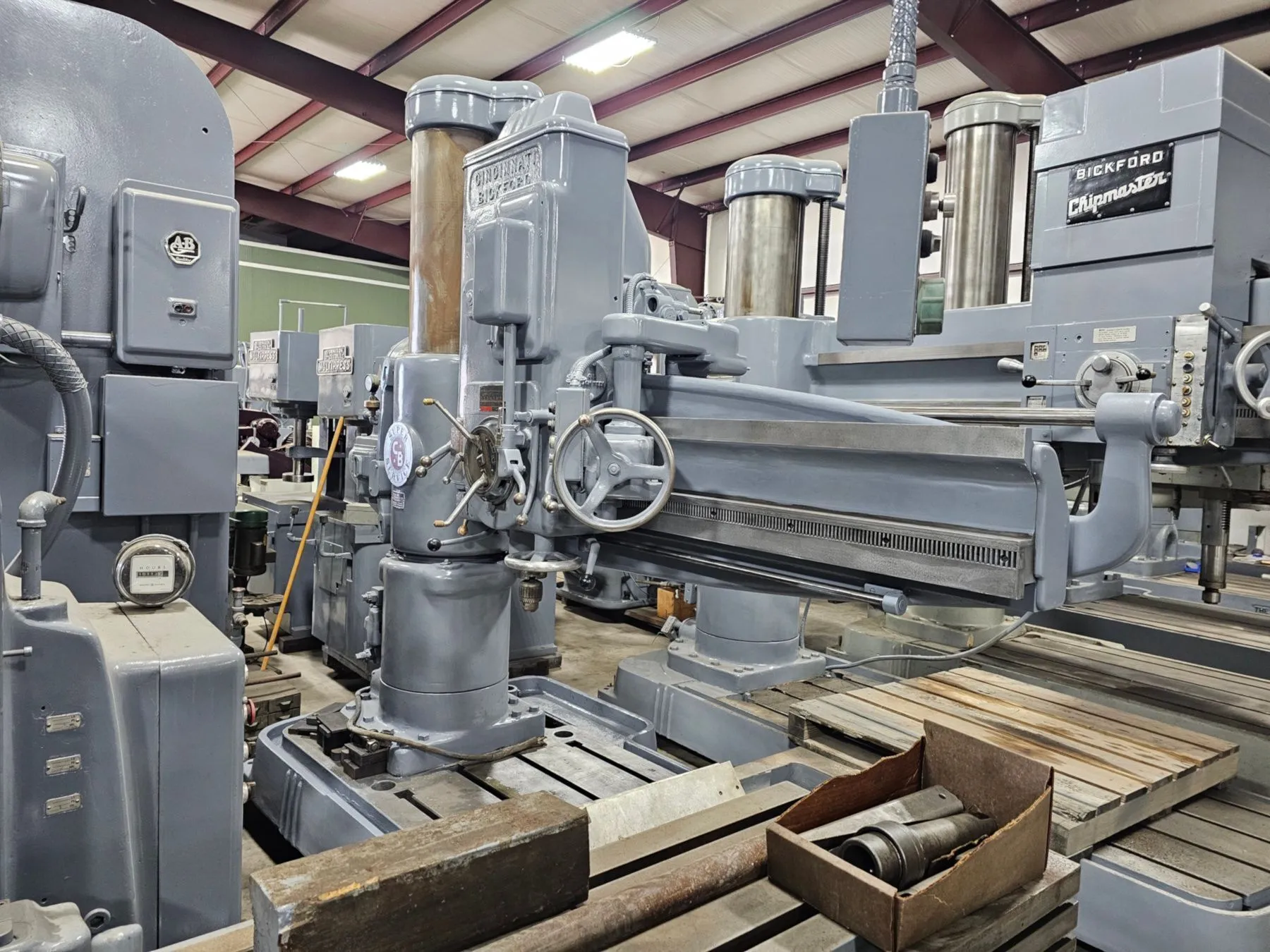

Used Cincinnati Bickford 5' X 13" Super Service Radial Drill
| Arm Length | 5' | 1.5 m |
| Column Dia. | 13" | 330.2 mm |
| RPM | 1,800 RPM | 1,800 RPM |
| Power | 15 hp | 11.2 kW |
| Dimensions | R-L 140" X F-B 53" X Height 108" | R-L 140" X F-B 53" X Height 108" |
| Weight | 12,500 Lbs. | 12,500 Lbs. |
Arm Size..........................5'
Column Diameter...................13"
Maximum Height Under Arm..........60"
Spindle Speeds....................16 To 1,800 Rpm's
Spindle Taper.....................# 5 Morse
Spindle Travel....................18"
Spindle Diameter..................4"
Spindle Feeds.....................004 To .125 I.P.M.
Spindle Tap Lead..................8,10,12,14,27
Main Motor........................10 Hp. 220/440 Volts
Floor Space.......................R-L 120" X F-B 54"
Height............................104"
Weight............................12,500 Lbs.
Power Rapid Traverse To Head......Yes
Power Clamp.......................Yes
Power Elevation...................Yes
Box Table.........................Yes
Coolant...........................Yes
Note: Machine has been cleaned, painted and cycled.
Everything is in good working order.
