USED 2007 PINES i-Line CNC075

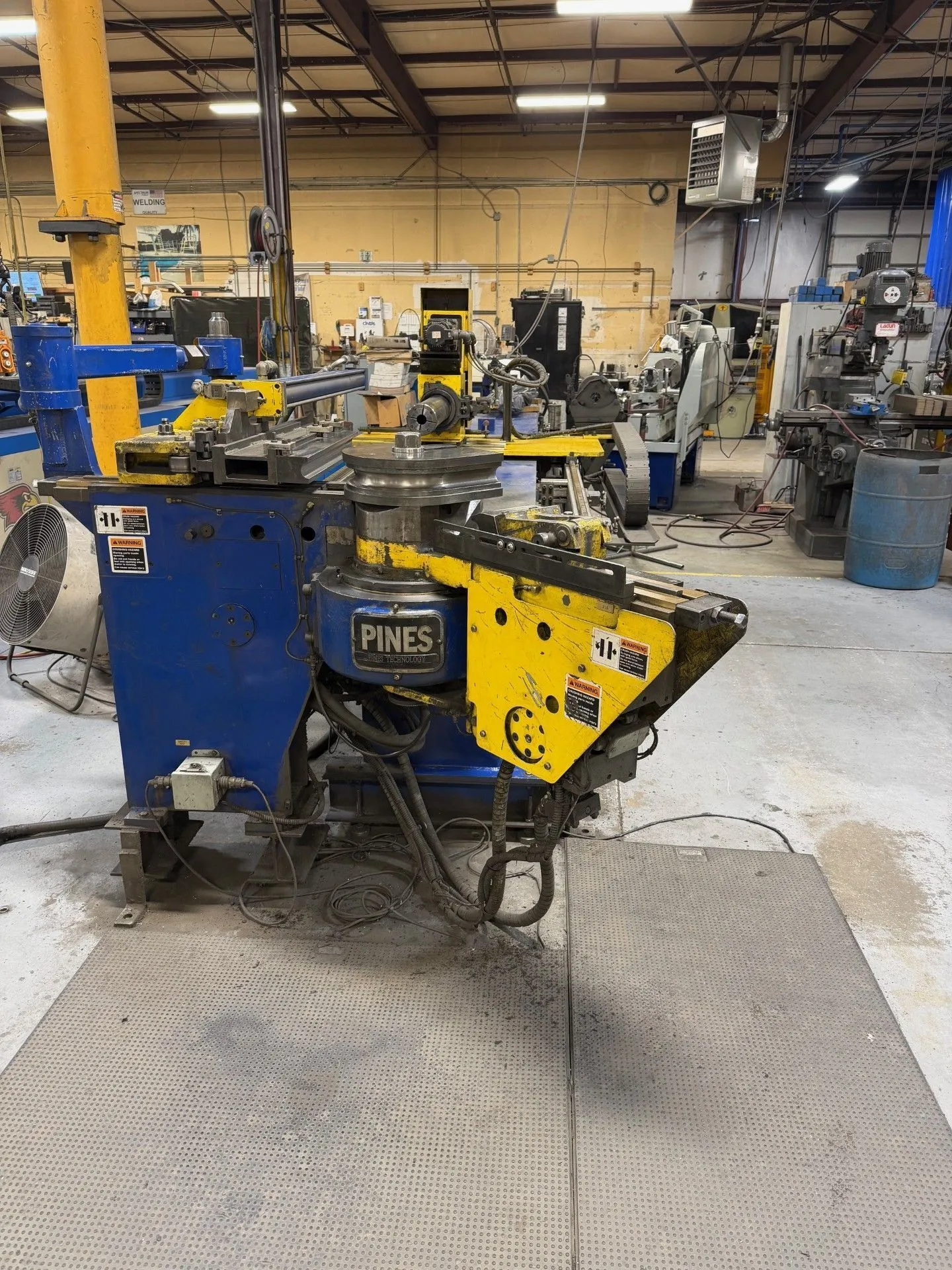

Pines CNC075 Tube Bender (2007)

• Mild Steel Tubing: Up to 3″ OD × .109″ wall thickness (yield strength to 40,000 psi)
• Non-Ferrous Tubing: Up to 3″ OD × .187″–.188″ wall thickness (yield strength to 25,000 psi)
• Stainless Steel Tubing: Up to 3″ OD × .065″ wall thickness (yield strength to 60,000 psi)
• Steel Pipe: Up to 2″ IPS Schedule 80 (2.375″ OD × .218″ WT)
• Square Tubing (Mild Steel): Up to 2″ × .125″
• Minimum Tube OD: 1/4″ to 3/8″ (depending on configuration)

Bending & Axis Specifications

• Maximum Centerline Radius (CLR): Standard 12″
• Minimum Radius-to-Diameter Ratio: 1:1
• Maximum Degree of Bend: 180° + springback (up to 190°–195° depending on build)
• Centerline Height: 2.0″
• Bend Arm Speed / B-Axis Rotation Speed: 14 RPM to 45 RPM (B-axis travel: 360°)
• Y-Axis Travel Speed: 2,400 IPM (6′ standard carriage travel)
• Bend Arm Repeatability: ±0.1°
• Carriage Repeatability: ±.005″

Machine & Power Details

• Motor Horsepower: 20 HP
• Electrical Requirements: 480V, 3-phase, 60 Hz
• Hydraulic Oil Reservoir: 55-gallon capacity (sealed system)
• Working Height: ~40″

• Standard Features: Hydraulic pressure die assist, hydraulic mandrel extractor, drop-away clamp die holder, and a swing-away wiper die holder.
