Built in 4th Axis Rotary Table, 50 ATC, 30 HP, 6K RPM, Low Hours
| size | 16" x 16" | 16" x 16" |
| X | 64" | 1,625.6 mm |
| Y | 40" | 1,016 mm |
| Z | 32" | 812.8 mm |
| Power | 30 hp | 22.4 kW |
| # ATC | 50 | 50 |
| Taper | 50 | 50 |
| Pallet-W | 36" | 914.4 mm |
| Pallet-L | 64" | 1,625.6 mm |
| # Axis | 4 | 4 |

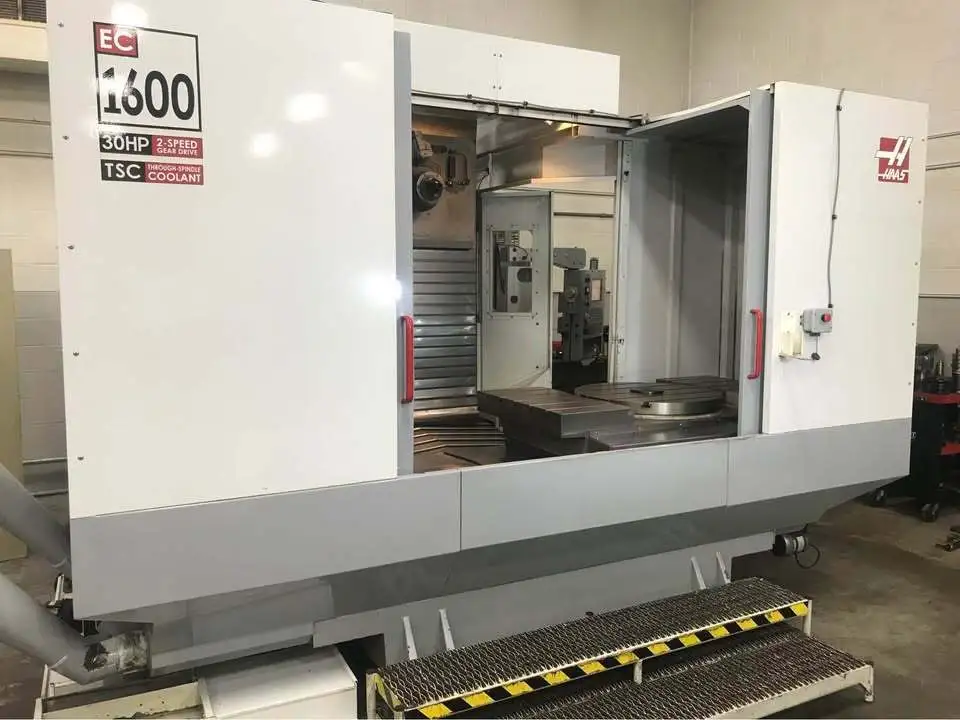

Haas EC-1600-4X Horizontal Machining Center (2004)
Working Surface of T-Slotted Table: 64 x 36
Maximum Work Load Capacity: 10,000 Lbs.
Travels - X-Axis: 64"
- Y-Axis: 40"
- Z-Axis: 32"
- B-Axis:
Distance Spindle C/L to Table Top: 11.9"
Feed Rate: 500/min
Rapid Traverse Rate: 600/ min
Spindle Speeds: 50-6000
Spindle Taper: 50
Spindle Motor: 30HP
Maximum Tool Size: 4 dia x 20 length
Maximum Tool Weight:
HAAS CNC Control
50-Position Automatic Tool Changer
Built in Full 4th-Axis Rotary Table
Geared Head
Machine Enclosure w/ Coolant System
Visual Quick-Code Probing System
Programmable Coolant Nozzle
Tool Presetter
Coolant Thru Spindle
