USED 2010 HWACHEON CUTEX-160A
Overview

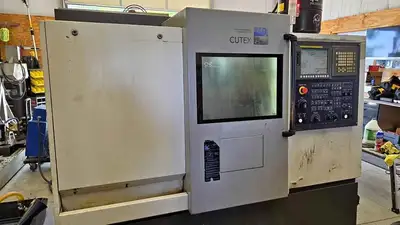

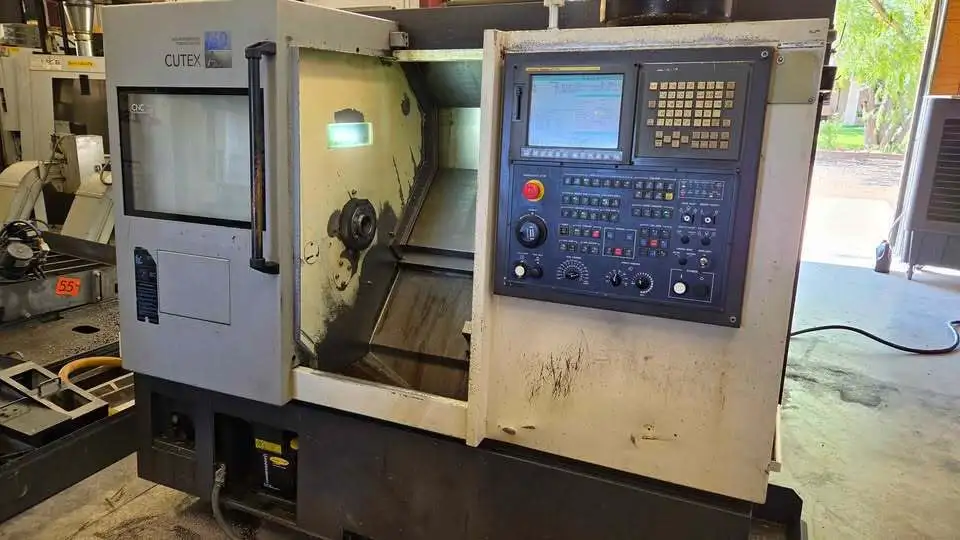

2010 HWACHEON CUTEX-160A CNC Turning Center. Machine is in good shape but the turret clamp makes a grinding sound (possible future curvic coupling issue). Includes mist collector.
Specs
Specification CUTEX-160A
Swing over bed 21.65" (550 mm)
Maximum turning diameter 11.81" (300 mm)
Maximum turning length 11.81" (300 mm)
Standard turning diameter 7.32" (186 mm)
Chuck size 6"
Maximum bar capacity 1.77" (45 mm)
Spindle bore 2.20" (56 mm)
Spindle nose A2-5
Maximum spindle speed 6,000 RPM
Spindle motor 15 HP / 10 HP (11 / 7.5 kW)
X-axis travel 6.69" (170 mm)
Z-axis travel 13.19" (335 mm)
Rapid traverse, X/Z 1,417 IPM

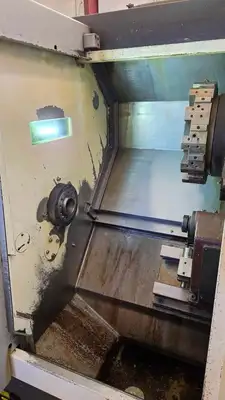

Turret 12 stations
Turret indexing 0.15 second per station
Tailstock, optional MT4; 3.15" quill stroke

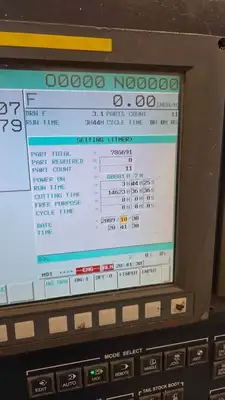

CNC control listed Fanuc 0i-TD
Base machine dimensions, L × W × H Approximately 83.5" × 59.8" × 67.7"
Machine weight Approximately 7,055 lb

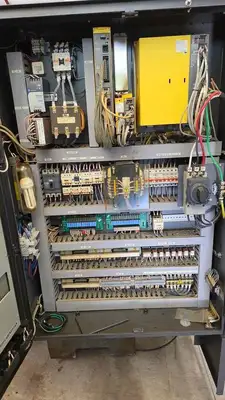

Electrical capacity 25 kVA
Equipped With
Tailstock
Mist Collector
NO CHUCK OR TOOLHOLDERS INCLUDED
