| Swing | 22.44" | 569.98 mm |
| Machining Length | 24.8" | 629.92 mm |
| Max. Turning Diameter | 15.74" | 399.8 mm |
| X-Axis | 11.1" | 281.94 mm |
| Z-Axis | 26.77" | 679.96 mm |
| # Axis | 2 | 2 |

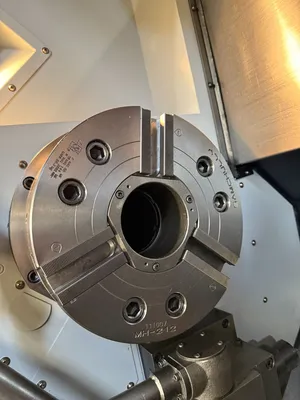

| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 4" | 101.6 mm |
| Spindle Bore | 4.52 in | |
| Spindle Nose | A2-11 | A2-11 |
| Power | 35 W | 0 hp |
| Max RPM | 2,800 RPM | 2,800 RPM |

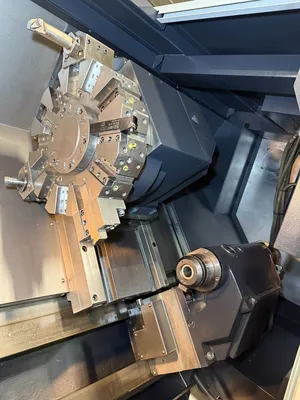

| Turret Stations | 12 | 12 |

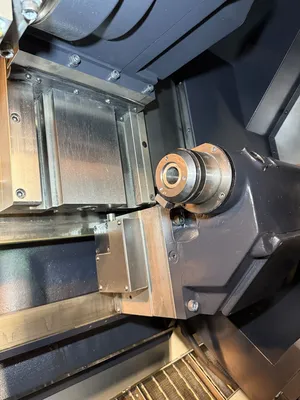

| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Dimensions | 145″ x 71″ x 82″ | 145″ x 71″ x 82″ |
| Weight | 12,654 Lbs | 12,654 Lbs |

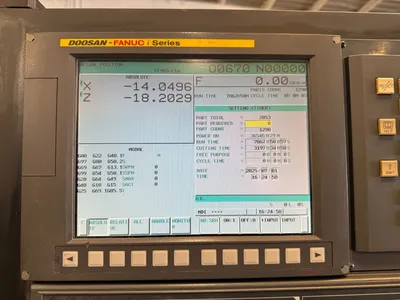

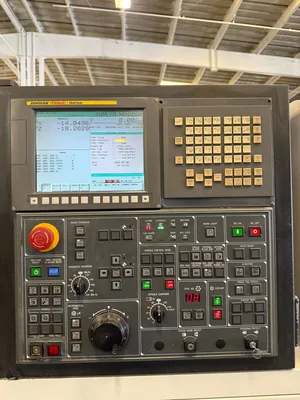

Fanuc i CNC Control
Chip Conveyor
Tool Presetter
Coolant System
Foot Switch

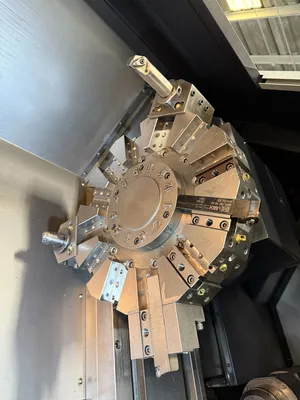

(2) Boring Tool Holders & (1) Turning Tool Holder Mounted on Turret
