USED KENNAMETAL KSEM330R3WD50M

Used Kennametal KSEM330R3WD50M thru coolant drill available. Features a drill diameter of 1.2992-1.3386 in, 8.937 in overall length, and 3.8976 in max drilling depth. Ideal for precision drilling tasks.

KENNAMETAL KSEM330R3WD50M THRU COOLANT DRILL

USED

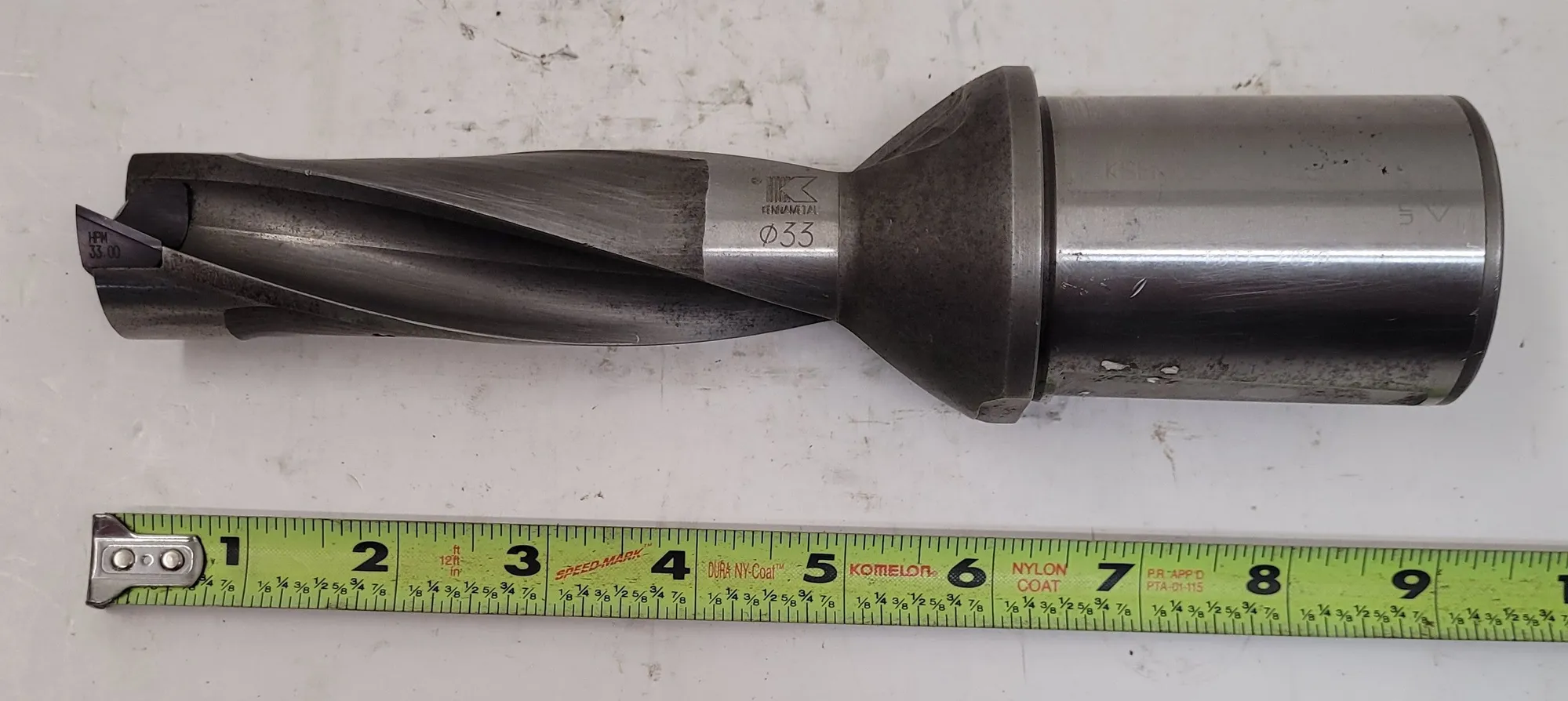

Diagram in photos for reference for below information:
Catalog ID KSEM330R3WD50M
[D1] Drill Diameter M 1.2992 in
[D1MAX] Drill Diameter Maximum 1.3386 in
[L4/D1] Length/Diameter Ratio 3
[L] Overall Length 8.937 in
[L1] Insert Gage Length 6.2598 in
[L3] Flute Length 5.8268 in
[L4] Maximum Drilling Depth 3.8976 in
[L5] Drill Point Length 0.1999 in
[LS] Shank Length 2.6772 in
[D] Adapter / Shank / Bore Diameter 1.9685 in
