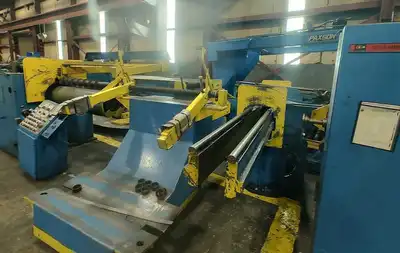

USED LOOPCO 60" Slitting Line

Manufacturer
- Loopco (USA)

Strip Thickness
- .020" - .188" (0.508 - 4.77mm)

Line Speed
- Low Speed Range = 250fpm @ 24" diam, with build-up to 750fpm @ 72" O.D.
- High Speed Range = 750fpm @ 24" diam, with build-up to 1500fom @ 72" O.D.

Approx. Slitting Capacity
a. Low Speed Range - 250fpm - 45,000 PSI Material
8 Cuts in 0.188"
12 Cuts in 0.135"
20 Cuts in 0.090"

b. Low Speed Range - 250fpm - 60,000 PSI Material
6 Cuts in 0.188"
9 Cuts in 0.135"
15 Cuts in 0.090"
20 Cuts in 0.067"

c. High Speed Range - 750fpm - 45,000 PSI Material
7 Cuts in 0.120"
11 Cuts in 0.090"
20 Cuts in 0.067"
20 Cuts in 0.020"

d. High Speed Range - 750fpm - 60,000 PSI Material
4 Cuts in 0.120"
8 Cuts in 0.090"
15 Cuts in 0.067"
20 Cuts in 0.020"

Line Direction: Left to Right

Equipment:
Entry Turnstile
(3) C-Hook Type Arms
Powered Rotation

Entry Coil Car
Above Floor Type
Self-Contained Hydraulics
Hand Pendant Control

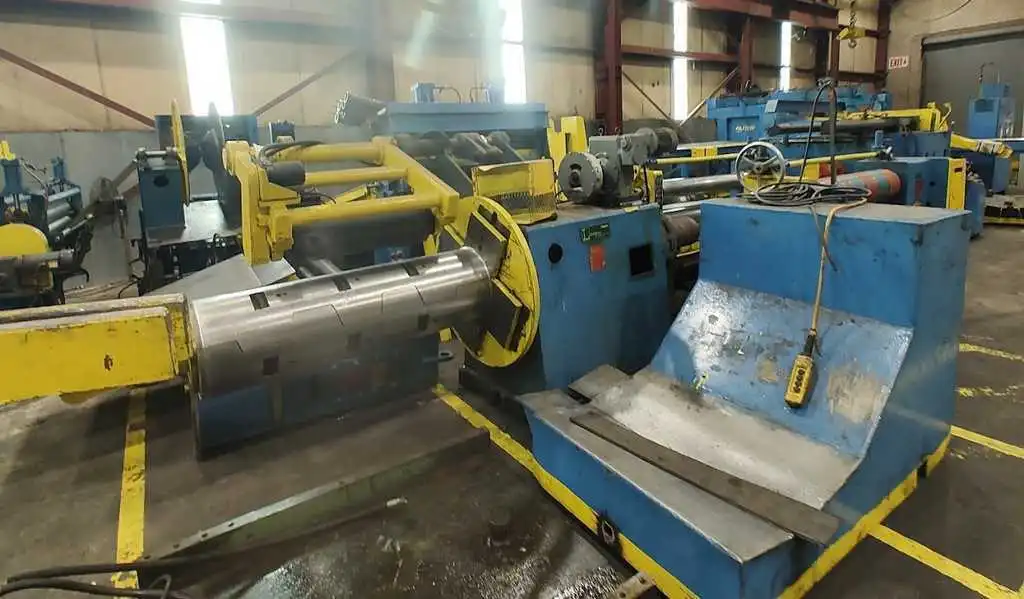

Uncoiler
Pumpkin Tooth Mandrel
Hydraulic Expansion
Threading Drive
Sliding Base
Wichita Brake
Powered Holddown Arm

Peeler Table

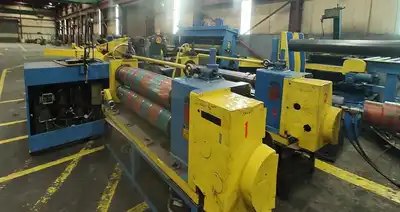

Slitter Head
Entry Pinch Rolls
Entry Side Guides
(2) Slitter Heads
7.5" Dia. Arbors
Parallel Arbor Adjustment
Threading Drive

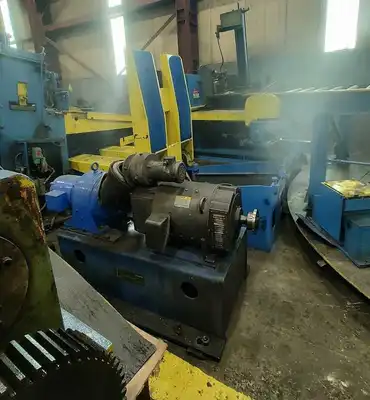

DC Motor Drive

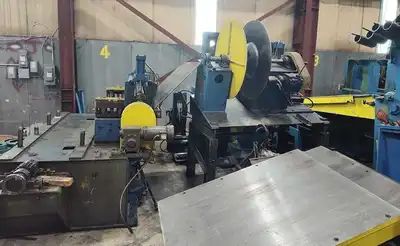

Scrap Winder
Hydraulic Motor Driven
2 Speed Transmission
Oscillate Wind
Powered Scrap Ball Dump

Tension Stand
Attached Pit Table
Entry Separator Tooling Bar
Pad Type Tension by (2) Hydraulic Cylinders

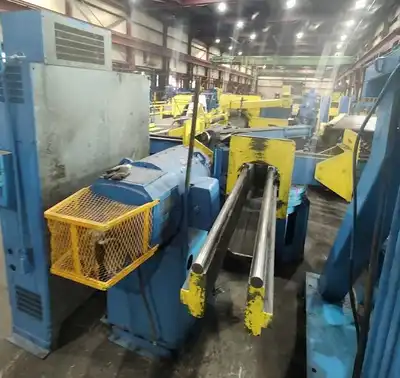

Recoiler
Powered Clamp and Expansion
Hydraulic Pushoff

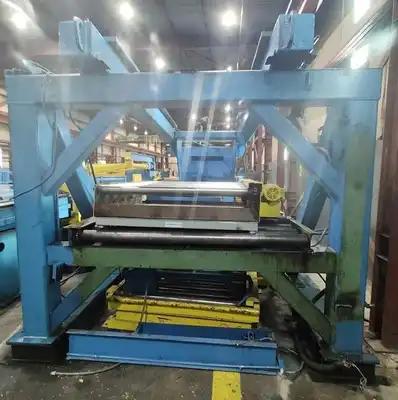

Overarm Separator
DC Drive Motor

Exit Coil Car
Coil Stabilizing Arms
Self-Contained Hydraulics

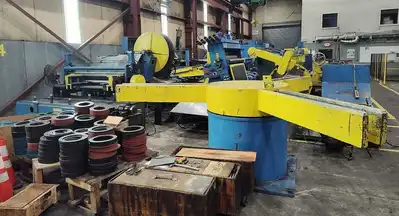

Exit Turnstile
(4) C-Hook Type Arms
Hydraulic Pushoff
Powered Rotation

Slitter Tooling

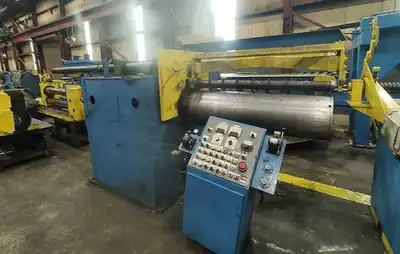

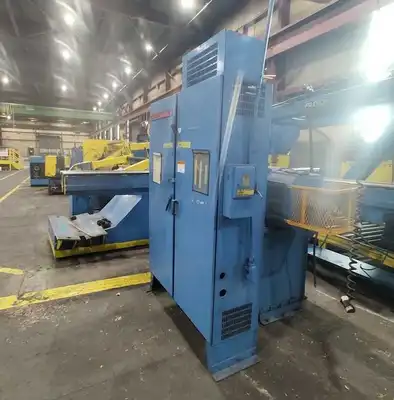

Main Operators Control Panel

Main Electrical Panel

Sold "as is, where is" EXW removed and in storage, USA
-Line is removed and in storage
