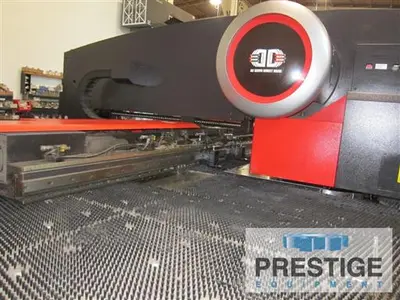

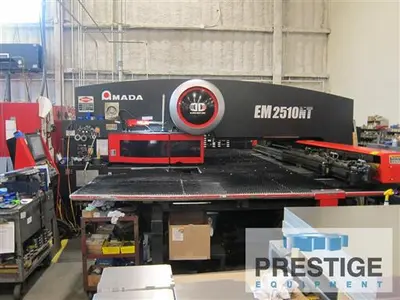

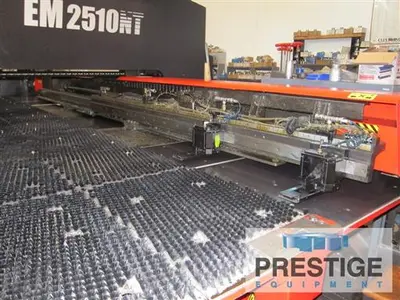

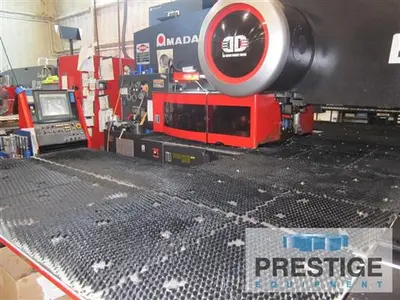

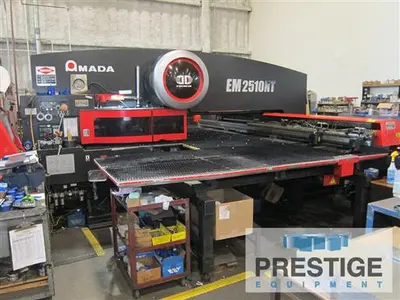

USED 2007 AMADA EM2510NT

CAPACITY:
Tonnage Capacity: 22 Tons
Table Travel: 50" x 100"
Throat Depth: 52"
Maximum Material Thickness: 1/8"
Maximum Punch Diameter: 4-1/2"
Hit Rate 1" Pitch, .197" Stroke: 500 HPM (X-Axis)
Hit Rate 1" Pitch, .197" Stroke: 330 HPM (Y-Axis)
Hit Rate .040" Pitch, .197" Stroke: 780 HPM (X-Axis)
Hit Rate .040" Pitch, .197" Stroke: 515 HPM (Y-Axis)
X-Axis Positioning Speed: 3,950 IPM
Y-Axis Positioning Speed: 3,150 IPM
Stroke Length: 1.65"
Machine Weight: 44,000 Lbs

Equipped With:
Fanuc AMNC-PC CNC Control
AC Servo Driven Punch Ram

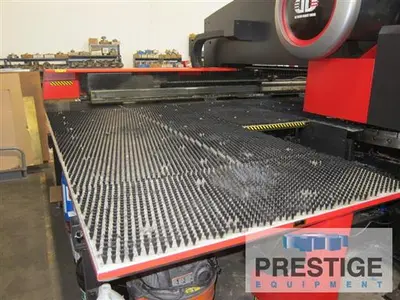

Brush Table Design

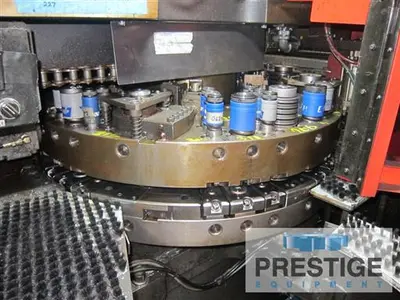

45 Station Thick Turret (No Holders or tooling)
(2) 1-1/4" Auto Index Stations
(2) 2" Auto Index Stations
Auto Sheet Repositioning

NOTE:
Inspect Under Power in Plant

Features:
AMNC PC Based Control
45 Station Thick Turret
Brush Table Design
