Tank, Approx. 13 Gallon (50 Liter), 50 PSI/FV, 70 PSI Jacket, Stainless Steel, #5991461
Overview
Description

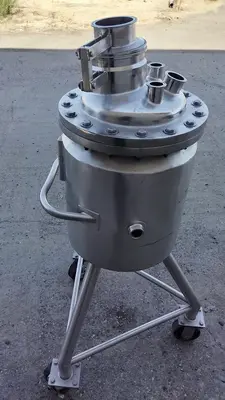

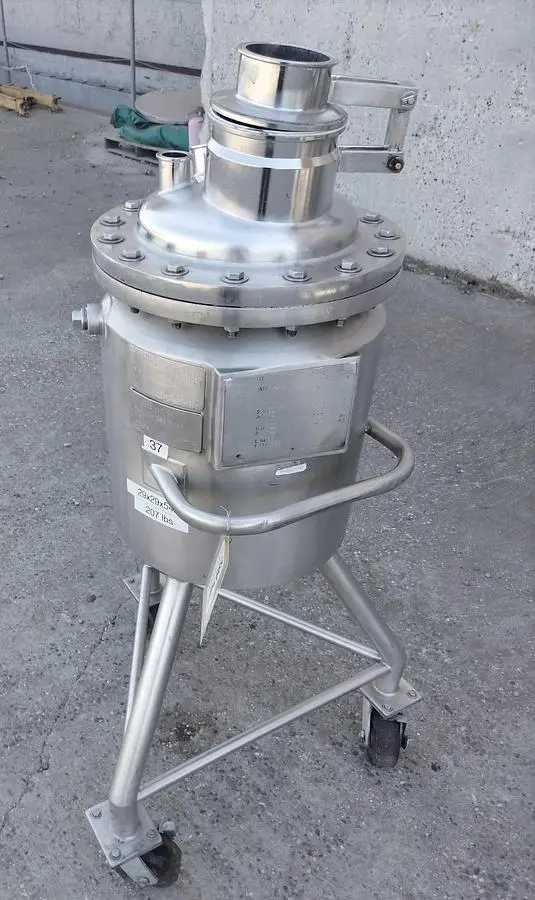

Jacketed tank with an approximate capacity of 50 liters, constructed of stainless steel with a bolted top and dish top & bottom. Measures 12" diameter x 16" straight side. Features include a 6" clamped and hinged lid with 4" opening, (2) 1.5", and (1) 2" top ports, plus a bottom discharge approximately 1" in diameter with sanitary valve. The internal vessel is rated for 50 PSI and full vacuum at 350°F, while the jacket is rated for 70 PSI at 350°F. Built in 1996 by International Metal Products and modified in 1997 for vacuum service. Portable on casters.
Specifications
Stock Number: 5991461
Manufacturer: International Metal Products
Year: 1996
Serial Number: 55
Gallons: 13.2 (50 liters)
Dimensions: 12" diameter x 16" straight side
Jacketed: Yes
Materials of Construction: Stainless Steel
Pressure Rating: 50 PSI / Full Vacuum @ 350°F
Jacket Pressure: 70 PSI @ 350°F
Basis: FOB
