Tank, 264 Gallon (1,000 Liter), Mueller, Jacketed, Stainless, 35 PSI / Full Vacuum, #5991457

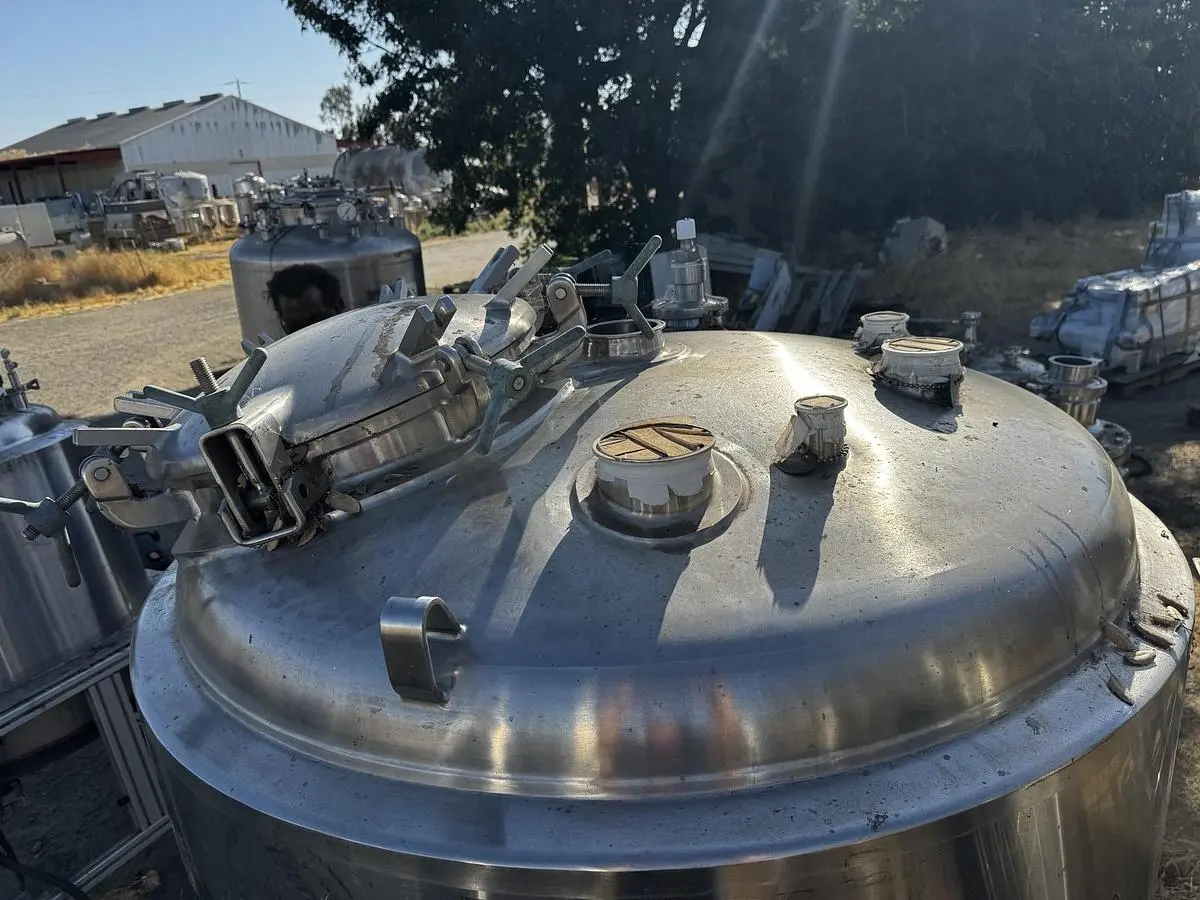

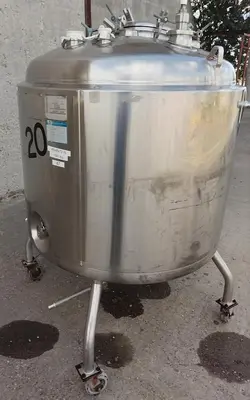

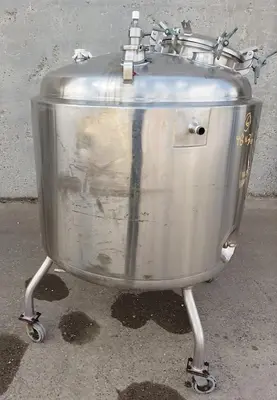

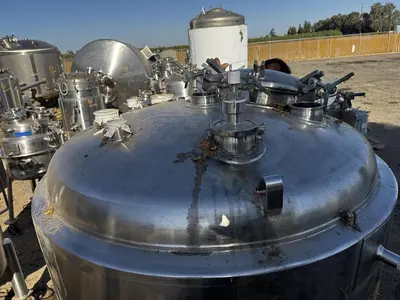

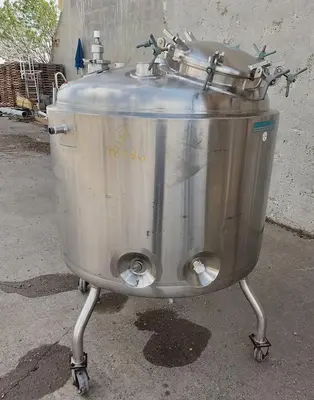

1,000-liter jacketed Reactor Tank built by Mueller and constructed of stainless steel. Tank measures approximately 40" diameter x 48" straight side and features a welded top and dished top & bottom. The top includes (4) 4" Tri-Clamp ports, (1) 2", (1) 5", and (1) 1.5" Tri-Clamp port. The bottom outlet is approximately 2" diameter center bottom outlet with valve. Jacketed for thermal service. Rated for full vacuum and 35 PSI internal pressure at 350°F. Jacket rated for 100 PSI at 350°F. Mounted on stainless legs with casters. No agitation included.

Stock Number: 5991457

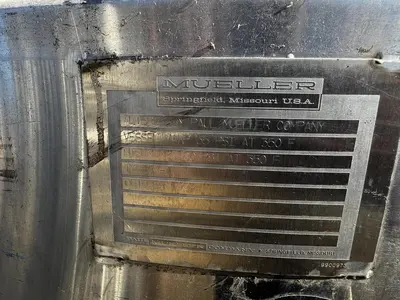

Manufacturer: Mueller

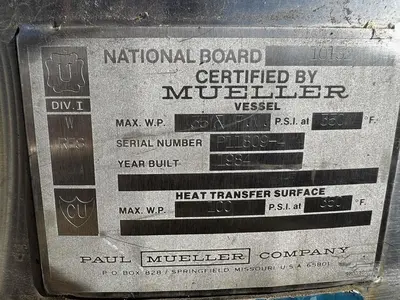

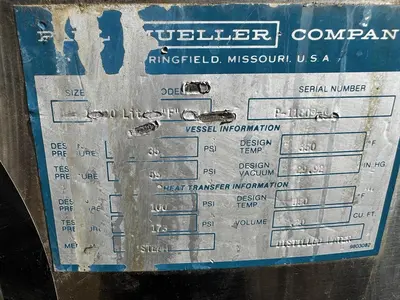

Serial Number: P-11309-4
Gallons: 264 (1,000 liters)
Dimensions: 40" diameter x 48" straight side
Jacketed: Yes
Materials of Construction: Stainless Steel
Pressure Rating: Full Vacuum / 35 PSI @ 350°F
Jacket Pressure: 100 PSI @ 350°F
Basis: FOB
