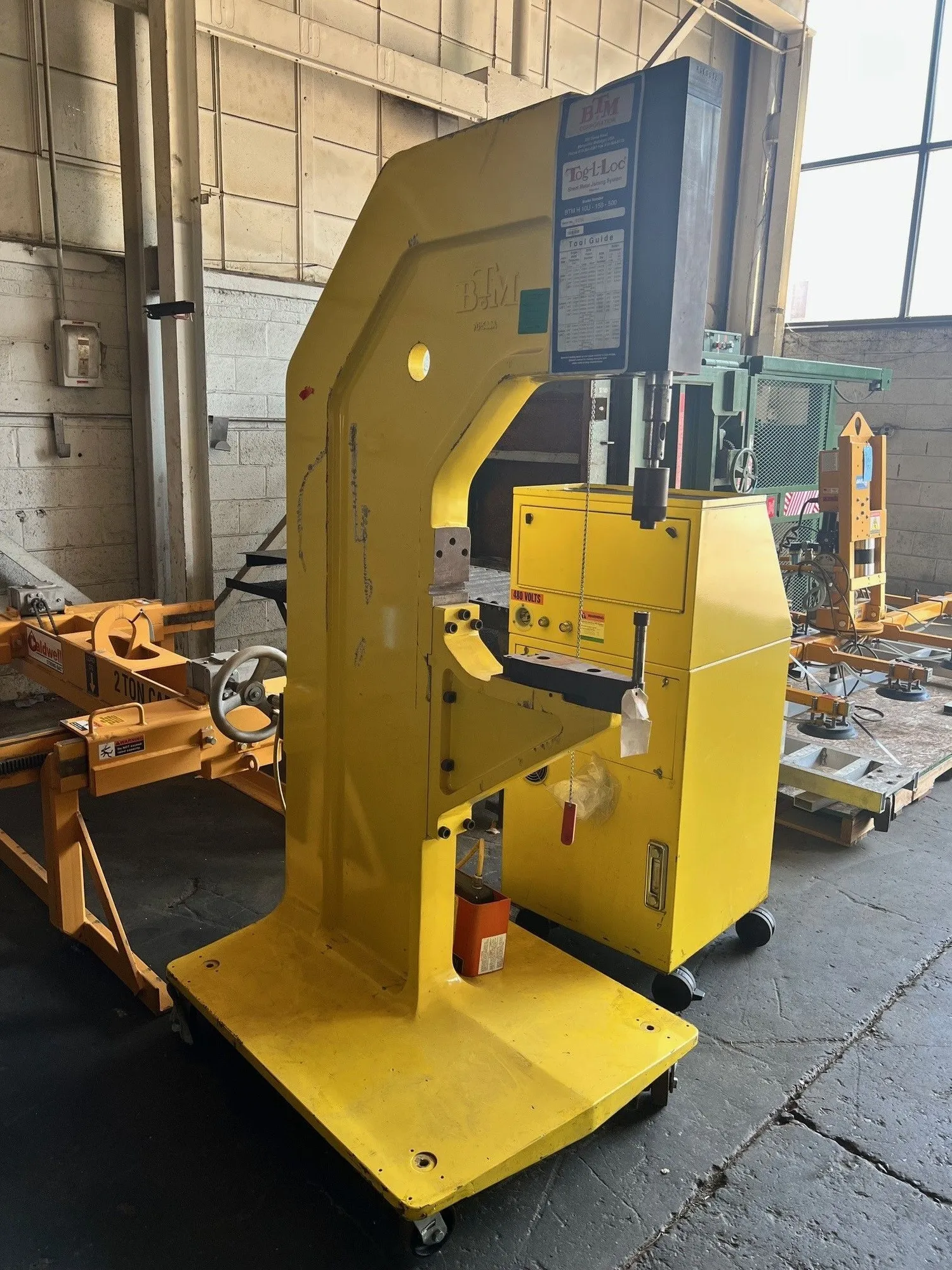

USED 1995 BTM H10U-150-500

BTM TOG-L-LOC clinching machine available in used condition. Ideal for high-quality metal joining applications, this reliable model offers precision and efficiency for your production needs.

Brand: BTM
Model: H 10U-150-500

Specifications:
Tonnage: 10 tons
Stroke: .63" - 6"
Throat depth: 19.7"
Cylinder bore: 3.25"
Max hydraulic pressure: 2,500 PSI
Force output: 1.5 - 10 tons
Min. / max. metal thickness: .008" - .067" (x2)
Voltage: 480 volt 3 phase

Dual foot pedal allows operator complete control over the machine in advancing ram, making the joint and returning home.
Peck stroke for high volume applications.
2- position anvil
PLC control
Adjustable pressure settings
Internal ram guarding system

Can be used to join plain, painted or coated sheet metal
