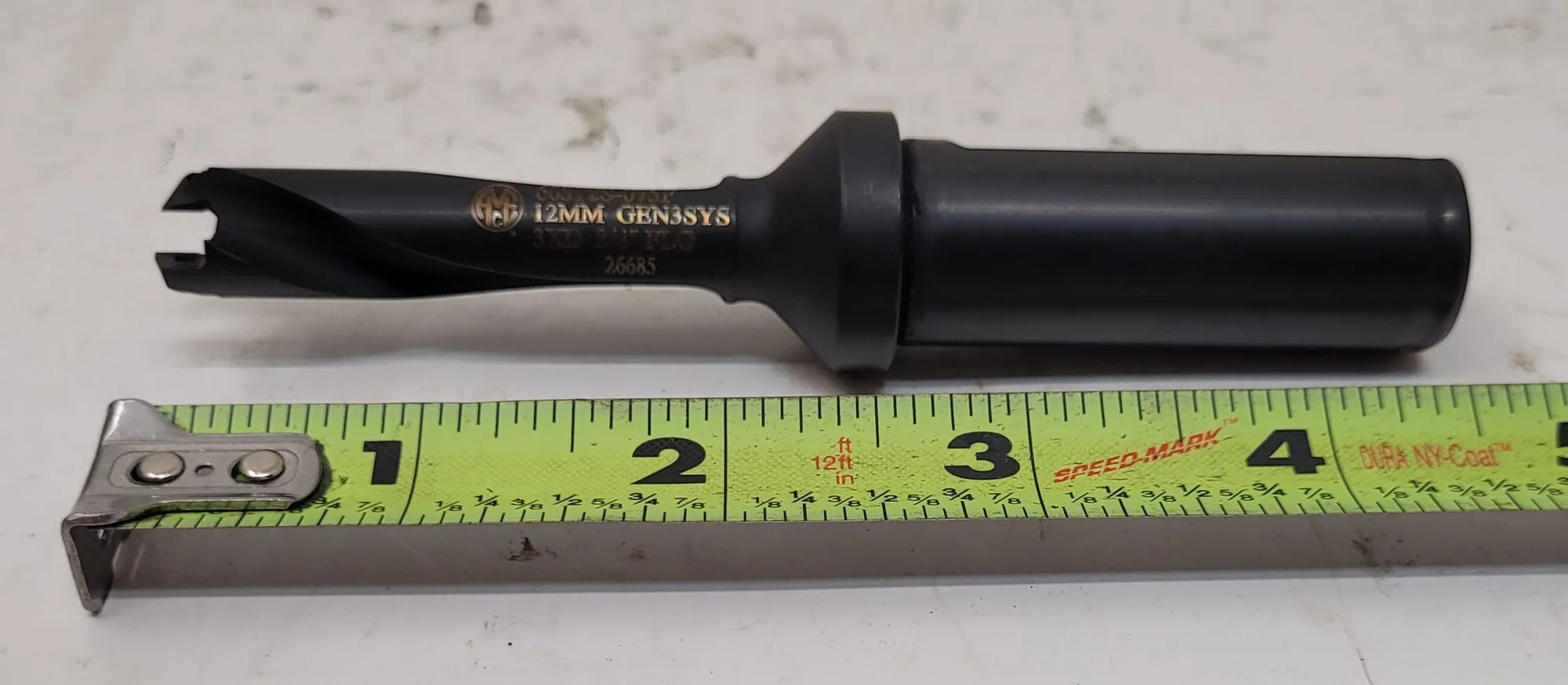

USED Allied Machine & Engineering 60312S-075F

Allied Machine & Engineering 60312S-075F indexable spade drill. Used condition. Drill diameter: 12-12.99mm. Drill depth: 1-35/64". Flatted shank, 3/4". Overall length: 4-21/32". GEN3SYS 12 series, axial concentric coolant entry.

Allied Machine and Engineering 60312S-075F - Indexable Spade Drill

Minimum Drill Diameter: Decimal Inch - 0.4724
Minimum Drill Diameter: (mm) 12.00
Maximum Drill Diameter: (mm) 12.99
Maximum Drill Diameter: 0.5117 Decimal Inch
Maximum Drill Depth (Inch): 1-35/64
Spade Drill Length: Standard
Shank Type: Flatted
Shank Diameter (Inch): 3/4in
Overall Length (Inch) 4-21/32
Coolant Entry Style Code 1-Axial Concentric Entry
Series GEN3SYS 12
Flute Type Straight
Flute Length (Inch) 1-35/64
Body Length (Inch) 2-5/8
Shank Length (Inch) 2-1/32
