7250 Cut Hours, 4 Axis, 20000 RPM, 40 Taper, 35.4" x 19.7" Professional 5 ( Fanuc 18i ) CNC Control
| size | 35" x 20" | 35" x 20" |
| X Travel | 35" | 889 mm |
| Y Travel | 19" | 482.6 mm |
| Z Travel | 17" | 431.8 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 20,000 RPM | 20,000 RPM |
| # ATC | 20 | 20 |
| Taper | HSK A63 | HSK A63 |
| Table-W | 19" | 482.6 mm |
| Table-L | 39" | 990.6 mm |
| # Axis | 4 | 4 |
| Control | CNC (Professional 5 System Cnc Control) | CNC (Professional 5 System Cnc Control) |

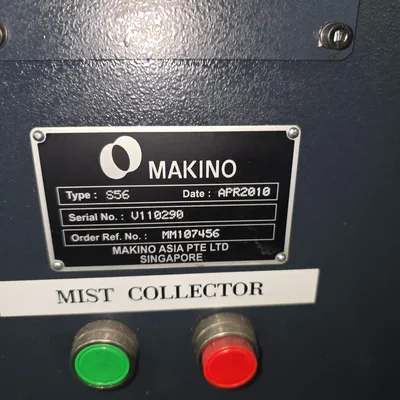

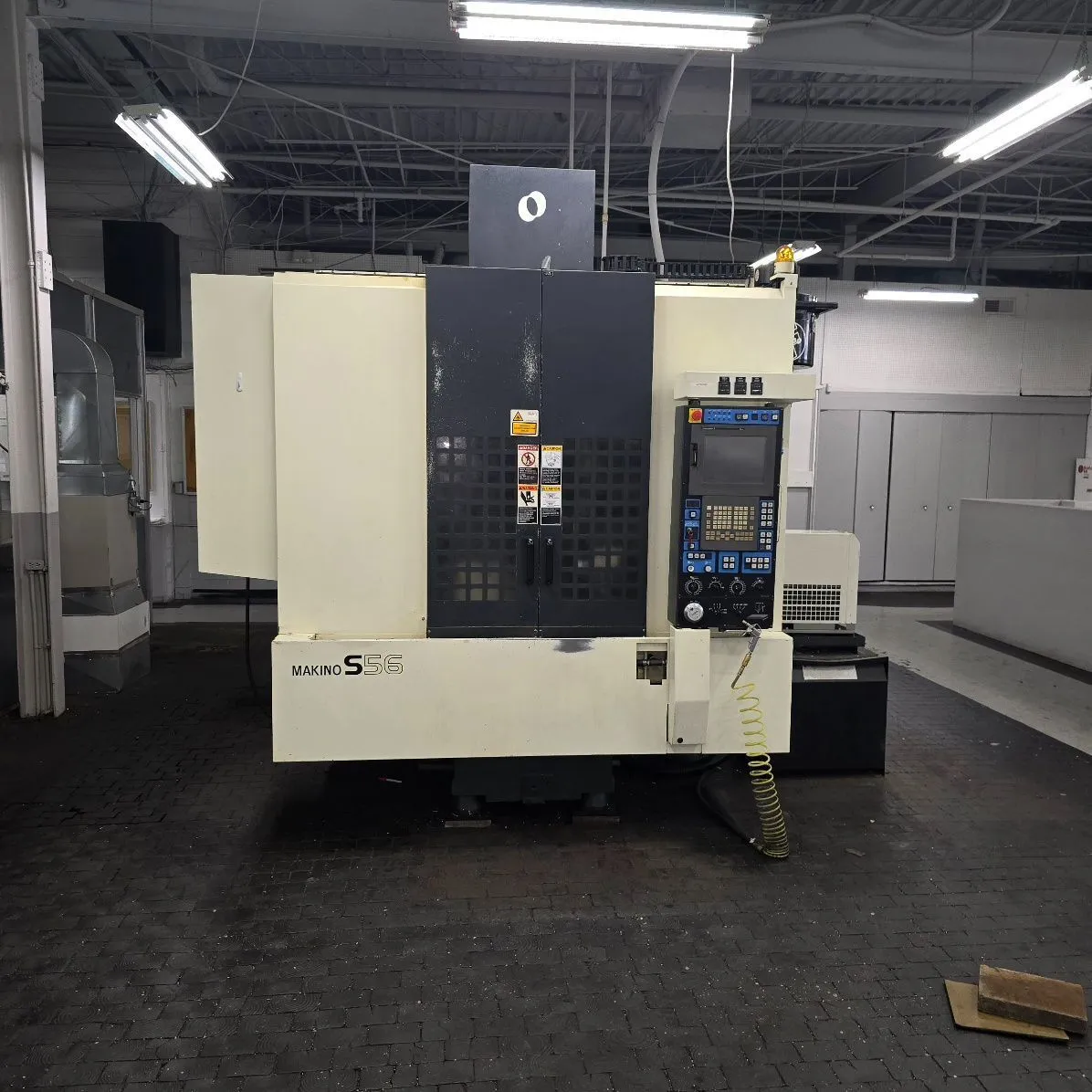

Makino S56 4 Axis High Speed Vertical Machining Center (2010)
Specifications (Preliminary)
Table Working Surface: 39.4" x 19.7"
X-Axis Travel: 35.4"
Y-Axis Travel: 19.7"
Z-Axis Travel: 17.7"
Spindle Taper: 40
Spindle Speed: 20000 RPM
Table Capacity: 1,325 Lbs.
Rapid Traverse Rate: (X/Y/Z): 1,575 IPM
1,575 IPM er Positions: 20 ATC
Main Motor Drive: 20 HP
7250 Cut Hours
Professional 5 System Cnc Control
Tsudakoma RNA250L Rotary Table
Blum Laser Control Micro Compact Probe
Fanuc Drives
10.4" Color Lcd Data Display
Coolant Flush
Air Dryer
ATC Shuttle
Super Gi With Data Server
Through Spindle Air
S/G Door With Interlock
Automatic Air Blower
320 M Memory
Helical Interpolation G02.2, Go3.3
Misc. Manuals
7250 Cut Hours
