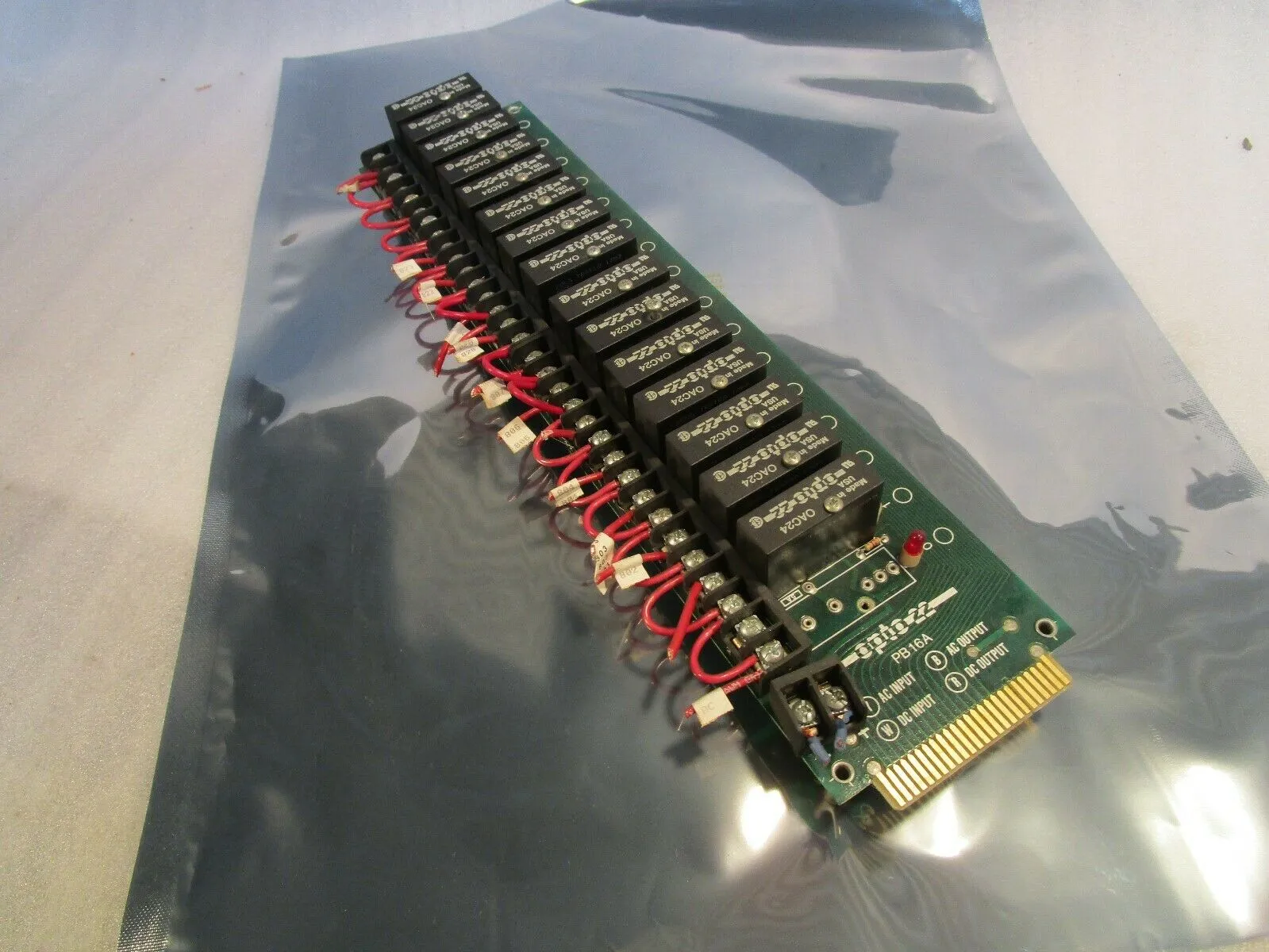

OPTO 22 STANDARD RACK PB16A, for 16 Single Channel Digital I/O Modules, 50-Conductor Card Edge Connector.
| Dimensions | 15" x 4" x 3" | 15" x 4" x 3" |
| Weight | 2 lbs | 2 lbs |
Approximate Dimensions: 15" x 4" x 3"
Approximate Weight: 2 LBS
From the Manufacturer:
The PB16A I/O mounting rack can accommodate up to 16 Opto 22 standard G1 digital single-channel I/O modules.
This rack uses a 50-pin card edge connector for interface to computer I/O ports via a 50-conductor ribbon cable. The mounting rack features LED status indicators and replaceable fuses for each channel.
