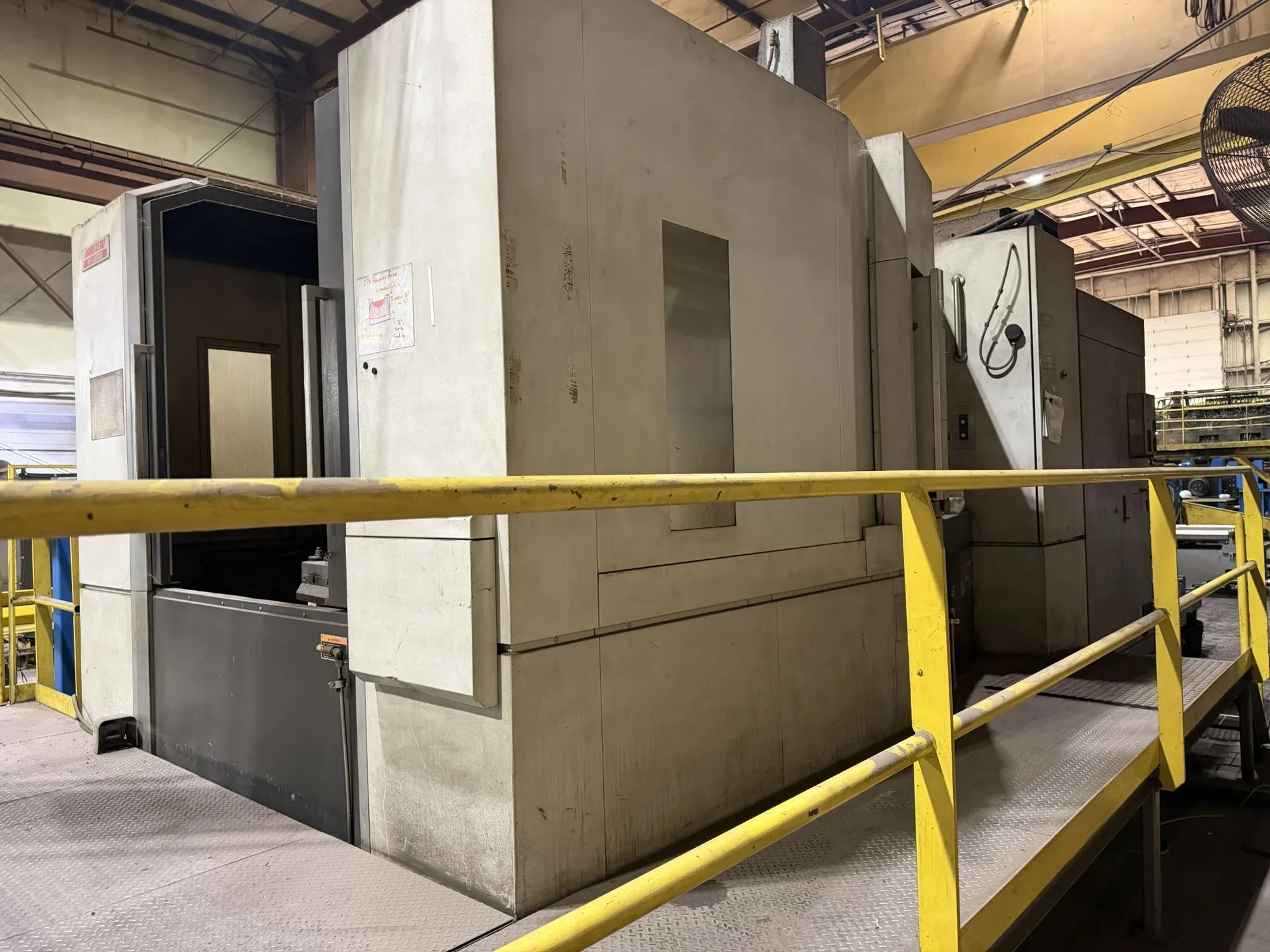

USED 2012 MORI SEIKI NHX8000

Mori Seiki NHX8000 4 Axis Horizontal Machining Center (2012)

• Travels (X / Y / Z):
• X-Axis: 55.1 in (1,400 mm)
• Y-Axis: 47.2 in (1,200 mm)
• Z-Axis: 53.1 in (1,350 mm)
• Pallet & Workpiece Capacity:
• Pallet Size: 31.5" × 31.5" (800 mm × 800 mm)
• Max. Workpiece Swing / Diameter: 57.1 in (1,450 mm)
• Max. Workpiece Height: 57.1 in (1,450 mm)
• Max. Workpiece Weight: 4,850.2 lbs (2,200 kg standard; up to 3,000 kg optional)
• Indexing: 0.001-degree (Continuous B-axis / C-axis options)
• Spindle:
• Taper: 50
• Standard Spindle Speed: 8,000 RPM to 12,000 RPM (with 16,000 RPM or high-torque 8,000 RPM / high-speed configurations available)
• Spindle Motor Drive: Typically 37/30 kW or high-output powerMASTER configuration (~53.3 HP)
• Tool Changer (ATC):
• Standard Capacity: 60 tools (chain-type magazines scalable up to 120–330 tools depending on configuration)
• CNC Control:
• DMG Mori MAPPS IV
• Machine Weight:
• Approximately 59,083 lbs (26,800 kg)
Current Electrical Arrangement 220/3/60
