SPC8731 Mill lump breaker 21 paddles 20 drive (hp), CS

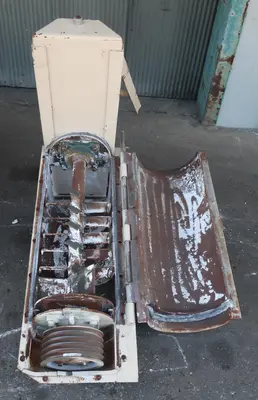

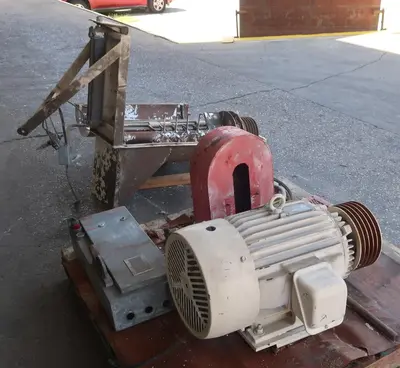

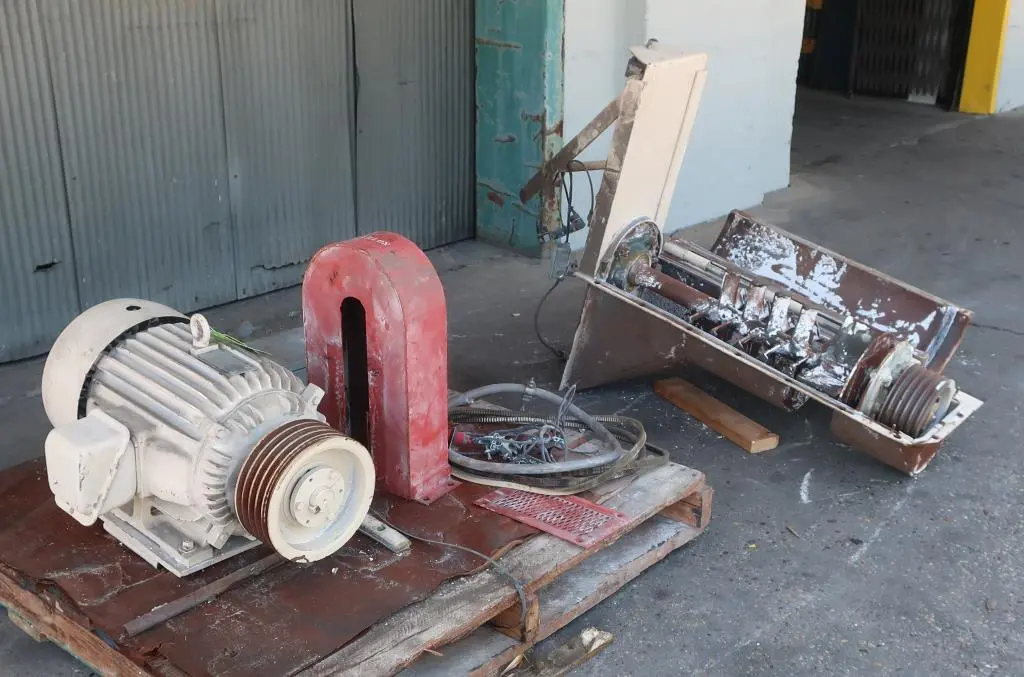

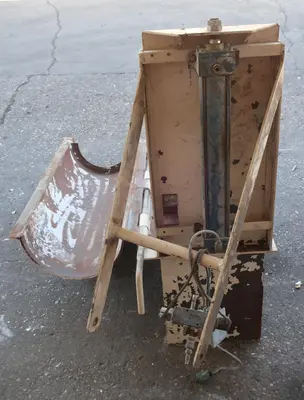

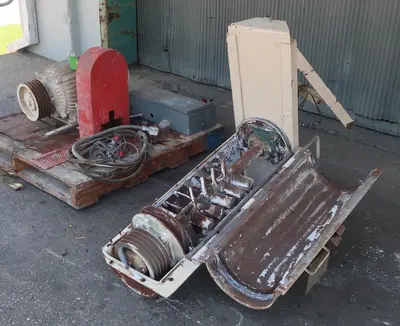

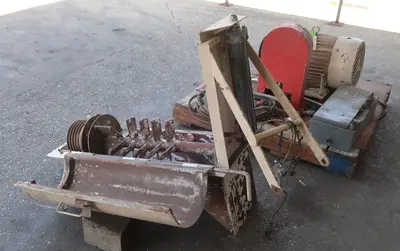

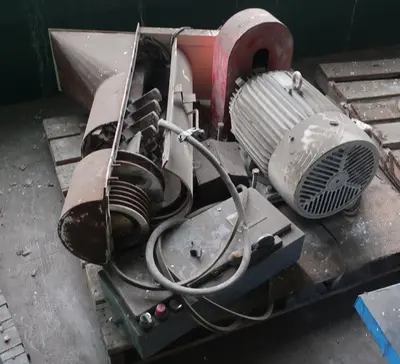

12" by 30" vertical delumper with carbon steel construction. 12" diameter by 30" long mixing chamber2" diameter shaft with 18 each 4.5" by 2" paddles and 3 each 4.5" by 4.25" paddles. 12" by 11" inlet and 12" by 5.5" outlet. Driven by 20 hp, 1175 rpm motor requiring 230/460 vac, 3 ph electricity. Overall dimentions 48" wide by 51" long by 39" tall. For processing dry powder mixing, hydrating hard to wet powders, slurry mixing, coating, sterilization, crystallization, agglomerating / granulating, homogenizing, de-lumping and more. Reqires the addition of safety devices.

Hp: 20
Internal: 12" dia x 30"
