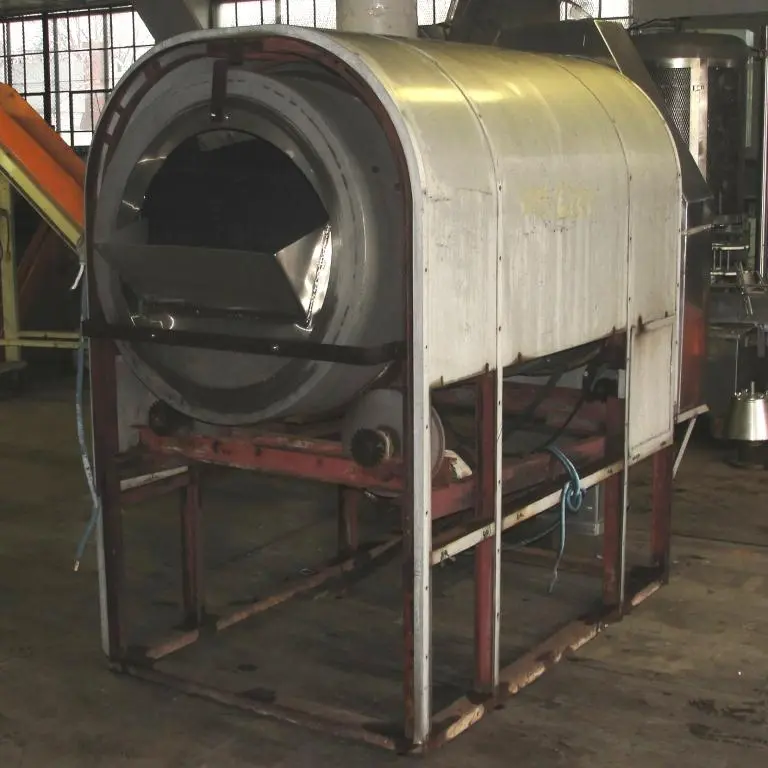

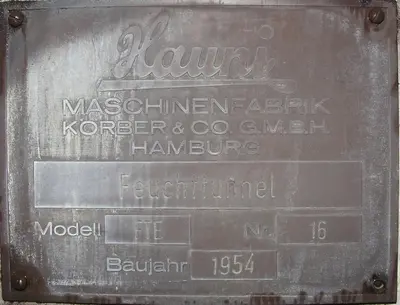

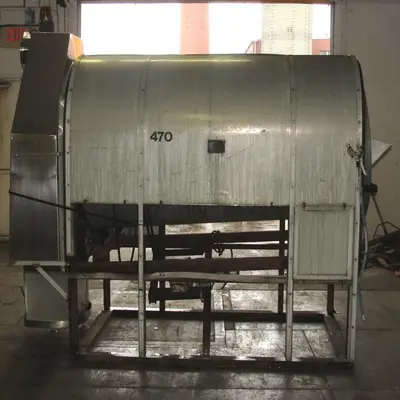

Körber & Co. Hauni Feuchttunnel Model FTE enrobing tube. Stainless steel tube on carbon steel frame. The tube is 40" diameter x 87" long. It has 3 spiral flights for mixing of product. The tube is driven by .5 hp motor and belt drive sitting on (4) 2.5" wide x 12" diameter grooved trunions. There is a 26" wide product infeed at 57" off the ground. The discharge consist of (2) 7"wide x 14"long openings, 12" off the ground. There is a diverter gate that controls flow to each discharge. Requires 220 vac 3 phase 50 Hz electrical supply.
Diameter: 40"
Length (Ft): 7.25'
Size: 40" dia. X 87" long
