USED FRYMA VME-2400

🏭 Manufacturer
FrymaKoruma (Fryma)
Renowned for high-performance pharmaceutical and cosmetic processing equipment, Fryma is known for vacuum mixers, homogenizers, and emulsifying systems built to the highest sanitary standards.

📝 Description

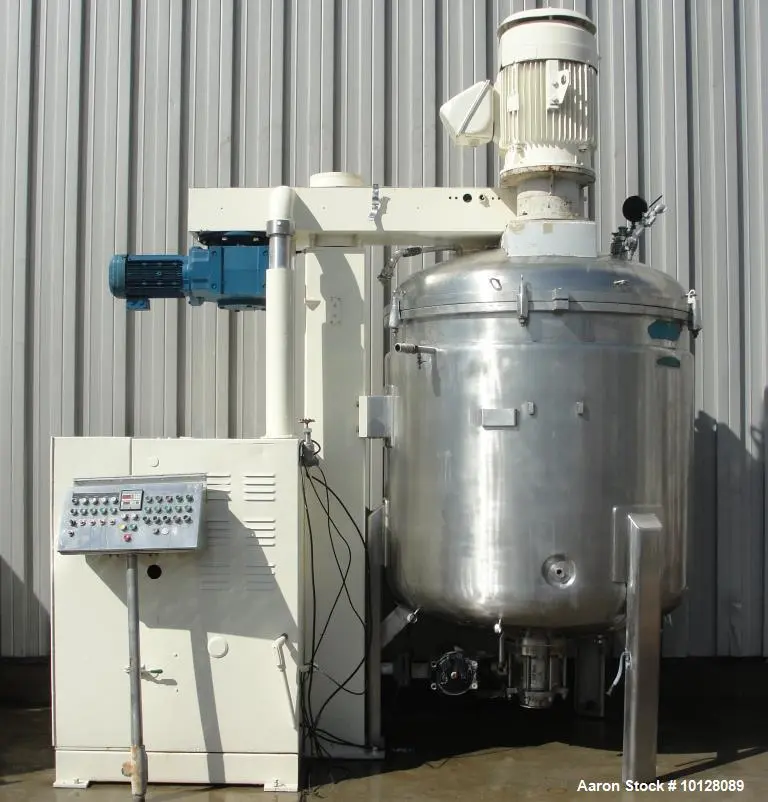

This used Fryma VME-2400 vacuum mixer is a pharmaceutical-grade processing vessel with a working capacity of 2400 liters and is specifically designed for vacuum mixing, dispersing, and blending viscous products like creams, pastes, and emulsions.
The system features dual agitator drives: a 7.5 HP motor for a central 3-propeller agitator with wall scraper, and a 50 HP motor for an off-center disperser-type agitator, enabling thorough mixing and high-shear processing. Jacketed for heating up to 150°C, this unit is rated for full vacuum and slight positive pressure in both the tank and jacket.
This unit was previously used for toothpaste manufacturing, and the interior is polished to a pharmaceutical-grade finish. It includes multiple sanitary ports, an inspection light, and a pneumatically operated 6" sanitary discharge valve.

⚙️ Specifications

Model: VME-2400

Working Capacity: 2400 Liters

Fabrication #: M10510

Construction: Stainless Steel, pharma-grade polished interior

Tank Dimensions:

Interior Diameter: 61"

Straight Side Height: 54"

Top: 11" dome

Bottom: 11" dish

Overall Diameter (with jacket): 63"

Height with Lid: 101"

Height without Lid: 87"

Working Temperature: Up to 150°C (interior and jacket)

Pressure Ratings:

Interior: -1 / +1 bar

Jacket: 2.5 bar

Agitation System:

Center Agitator: 3-blade propeller with scraper, driven by 7.5 HP motor

Disperser Agitator: Side-mounted, driven by 50 HP motor

Scrape Agitator: Chain-driven

Top Ports:

(1) 8" flanged opening (clamped)

(1) 6" glass inspection port with light

(1) 2" sanitary

(1) 1.5" sanitary

(2) 1" threaded ports

Discharge: 6” sanitary valve, pneumatically operated

Electrical Requirements: 230/460V, 3 Phase

Condition: Used, good condition

Previous Use: Toothpaste manufacturing

🧪 Applications
Ideal for mixing, emulsifying, and dispersing in:

Toothpaste and oral care products

Pharmaceutical creams and gels

Cosmetic lotions and emulsions

Nutraceutical pastes

Food-grade viscous blends

Adhesives and sealants

Personal care and hygiene products

Chemical slurries and pastes

Paints and coatings (sanitary adaptable)

Flavor or color dispersion into gels

📦 What Products Would This Be Used For?

Toothpaste and gel-based dentifrices

Pharmaceutical ointments

Moisturizing creams and lotions

Hair styling gels or pastes

Topical anesthetic creams

Nutraceutical gels and vitamin blends

Natural ingredient pastes (e.g., charcoal toothpaste)

Skincare emulsions

Food spreads or concentrates

Non-corrosive chemical compounds
