Used HJM Precision Ignition Cartridge Non-Destructive Inspection Machine | PLC Controlled | 3-Axis Robot | Built 2019
Overview
Description

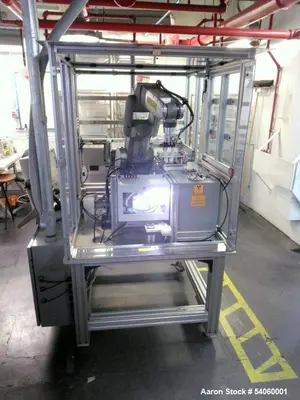

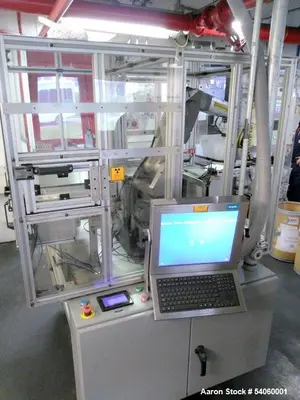

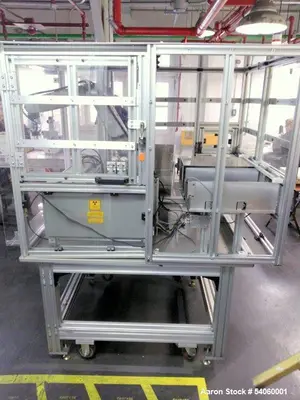

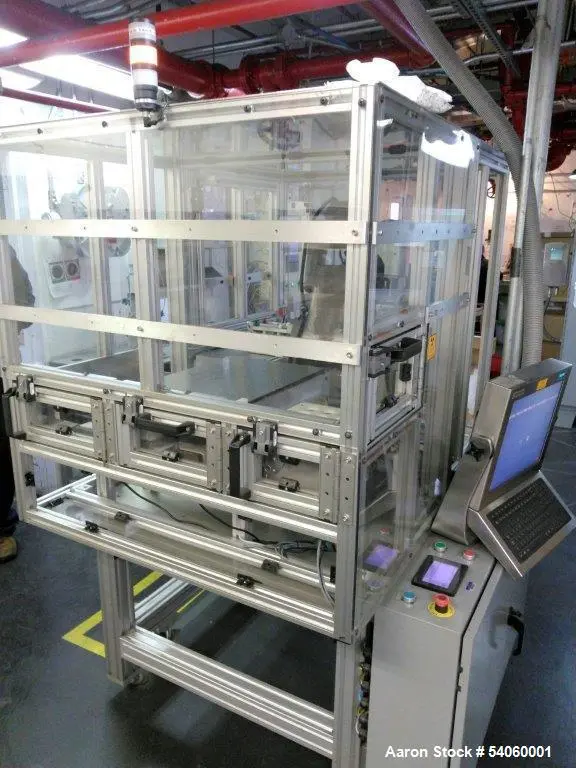

Used HJM Precision, Inc. Ignition Cartridge Non-destructive Inspection Machine. The machine has been designed and manufactured for the purpose of inspecting Ignition Cartridges for leaks. It is controlled by a PLC with an HMI for the operator to move the machine in manual mode for homing, clearing product, cleaning, etc., and to operate the machine in automatic mode. The cartridges are loaded into the machine in an input tray. The cartridges are then placed in test chambers by means of a robot. The chambers are moved to the test position. Covers lower to the top of the test chambers and nozzles extend to the test chambers near the bottom. Three axis robot system consisting of three slides and a gripper. The robot moves in X, Y , and Z directions with X being the length of the machine, Y across the machine, and Z vertical. Four test chamber blocks on the dial plate. Each of the test chamber blocks has four chambers in them. Gilmont flow meters and Hoke needle valves are used to calibrate the machine. New in 2019.
Specifications
Used Equipment Facts About This Machine
๐ญ Manufacturer
HJM Precision, Inc.
A specialized manufacturer of automated and high-accuracy inspection systems for defense, aerospace, and industrial components. Known for customized solutions and robotic NDI (non-destructive inspection) platforms.
๐ Description
This HJM Precision Ignition Cartridge Non-Destructive Inspection Machine was designed and built in 2019 specifically to inspect ignition cartridges for leaks in a fully automated or manual-controlled environment. The system features a three-axis robotic loading mechanism, precision test chambers, and operator-friendly PLC + HMI interface for control and diagnostics.
The machine uses a tray-based loading system, where cartridges are robotically moved into test chamber blocks. Each block contains four chambers, and the entire testing process is automated, repeatable, and non-invasive, ensuring consistent leak testing without damaging sensitive munitions.
โ๏ธ Specifications
Model: Ignition Cartridge Inspection Machine
Manufacturer: HJM Precision, Inc.
Year Built: 2019
Purpose: Leak detection / non-destructive inspection of M702 ignition cartridges
Automation Type:
PLC Controlled with HMI Interface
Manual and Automatic Modes
Robot System:
3-axis robot (X, Y, Z)
Gripper mounted on linear slides
X-axis: Machine length
Y-axis: Crosswise movement
Z-axis: Vertical motion
Test Chamber Design:
4 test chamber blocks mounted to dial plate
Each block contains 4 chambers (16 test stations total)
Testing Process:
Robotic pick-and-place from input tray
Covers lower onto chambers; nozzles extend to base
Flow-based leak detection
Flow Components:
Gilmont flow meters
Hoke precision needle valves
Control Interface:
PLC-based automation with touchscreen HMI
Manual override for cleaning, homing, clearing
Condition: Excellent (light use, built in 2019)
๐งช Applications
Purpose-built for military and defense industry quality control of ignition cartridges, and adaptable to other small part NDI tasks including:
Ammunition leak testing
Cartridge or capsule seal testing
Igniter inspection in defense/aerospace
Pyrotechnic device QA/QC
Pressurized small part NDT
Small pressurized components in aerospace
Specialty gas or chemical charge container testing
๐ฆ What Products Would This Be Used For?
Ignition Cartridges
Defense-grade ignition modules
Small sealed pressure devices
Pyrotechnic or gas cartridge components
Leak-critical munition casings
Military ignition assembly inspection
Propellant charge containers
Safety cartridges
Explosive primer devices
Pressure-activated defense components
