USED KRAUSS MAFFEI MT 1/200

🏭 Manufacturer
Krauss-Maffei (Krauss Maffei Process Technology)
A global leader in advanced process equipment, Krauss-Maffei designs high-precision drying, mixing, and separation systems for pharmaceuticals, chemicals, and specialty materials. Their MT series vacuum dryers are highly regarded for gentle, efficient drying of heat-sensitive solids.

📝 Description

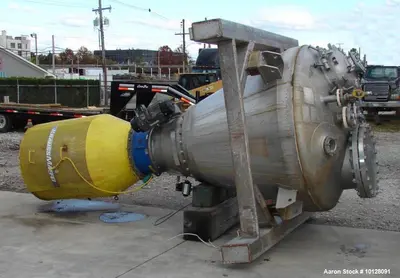

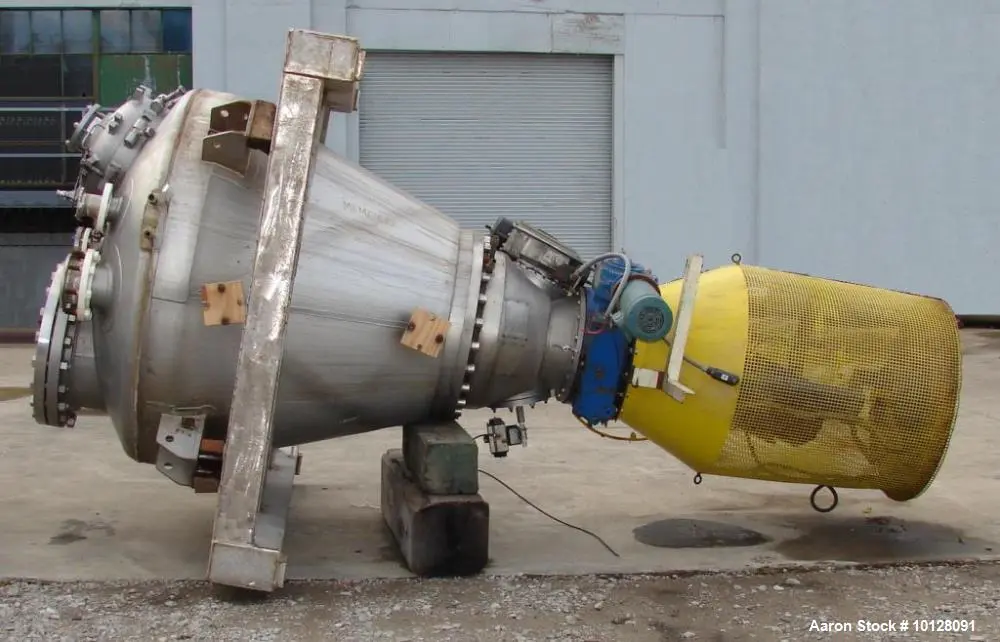

This Krauss-Maffei MT 1/200 vacuum mixer dryer is a conical screw dryer constructed from 316L stainless steel with a polished interior and rated for full vacuum and 150 PSI at 450°F (internal and jacket). The vessel features a 49.43 cu.ft. total capacity and a 35.3 cu.ft. working volume, making it ideal for vacuum drying of powders, granules, and moist solids up to 5mm in size.
An 8" diameter inclined orbiting screw, powered by a 10 HP drive, provides gentle agitation during the drying cycle. The unit includes a large 10" flanged discharge with flush-mount pneumatic valve, multiple flanged and threaded connections, and jacketed zones on the top, side, and bottom for precise thermal control.

⚙️ Specifications

Model: MT 1/200

Serial #: 7098

National Board #: 21424

Construction: 316L Stainless Steel, polished interior

Total Capacity: 49.43 cu.ft.

Working Volume: 35.3 cu.ft.

Drying Temperature (Max): 302°F (150°C)

Pressure Ratings (Jacket & Internal):

Full Vacuum / 150 PSI @ 450°F

Agitation System:

Type: 8" inclined orbiting screw

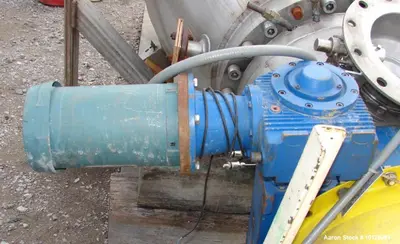

Motor: 10 HP

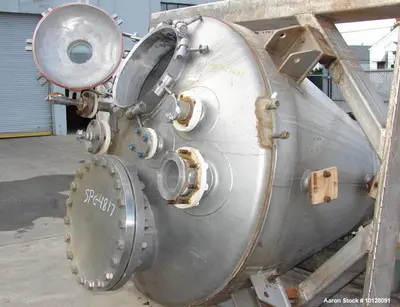

Top Connections:

(1) 18" manway

(1) 6" sight glass

(1) 18" flanged fitting

(1) 4" sight glass

(2) 3" flanged fittings

(2) 2" flanged fittings

(1) 6" flanged fitting

(2) 1" threaded fittings (top jacket)

Side Connections:

(2) 2" flanged fittings (body jacket)

Bottom Connections:

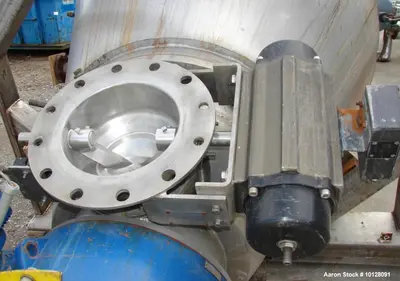

(1) 10" flanged discharge

(1) Pneumatically operated flush-mount valve

(2) 1" threaded fittings (bottom jacket)

Condition: Used, excellent for heat-sensitive product drying

🧪 Applications
Optimized for vacuum drying in:

Pharmaceutical active ingredients (APIs)

Nutraceuticals and herbal extracts

Fine and specialty chemicals

Catalyst preparation and drying

Food-grade powders and concentrates

Polymer and resin additives

Inorganic salts and oxides

Agricultural chemicals

Pigments and colorants

Biotech solid intermediates

📦 What Products Would This Be Used For?

API granules

Herbal extract powders

Vitamin and mineral premixes

Catalyst or absorbent powders

Fine chemical intermediates

Food flavor compounds

Plasticizers or stabilizer powders

Nutraceutical blends

Agricultural treatment powders

Dried ceramic and pigment powders
