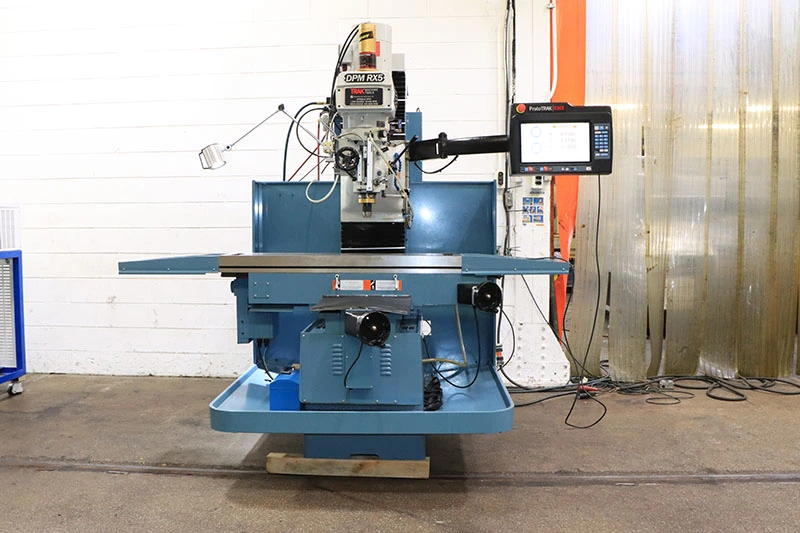

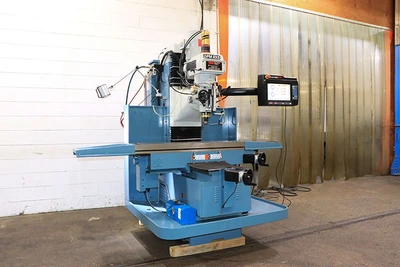

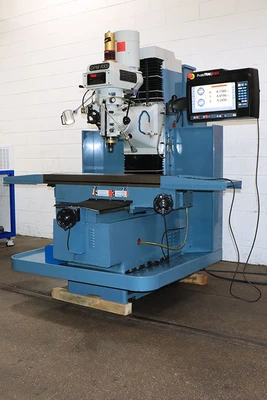

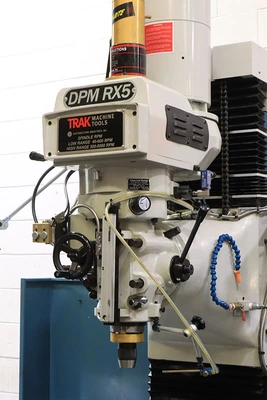

USED 2020 Southwest Ind. DPMRX5, Traking, Touchscreen Control, #40PDB,

TRAK 3-AXIS CNC BED MILL w/HAND WHEELS

MODEL: DPM RX5,  S/N: 202EC426,  NEW: 2020

SPECIFICATIONS:

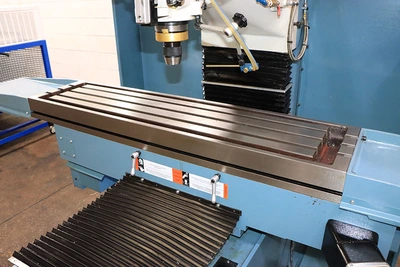

TABLE SIZE ........................ 12" x 50"

TABLE TRAVEL (X) .................. 40"

SADDLE TRAVEL (Y) ................. 20"

VERTICAL HEAD TRAVEL (Z) .......... 25.81"

QUILL TRAVEL ...................... 5"

SPINDLE TAPER ..................... #40 NST

SPINDLE NOSE TO TABLE ............. 0 - 25.81"

SPINDLE CENTER TO COLUMN FACE ..... 20"

HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES

PROGRAMMABLE SPINDLE SPEED RANGE .. 40 - 5000 RPM

MAXIMUM WORKPIECE WEIGHT .......... 1,760 LBS

APPROX DIMENSIONS ................. 94"W x 103"D x 102"H

MACHINE WEIGHT .................... 4,600 LBS

EQUIPPED WITH:

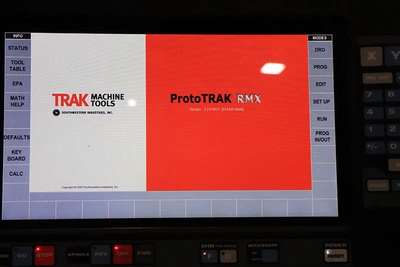

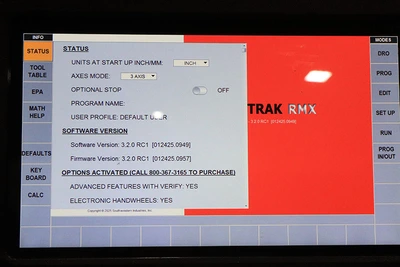

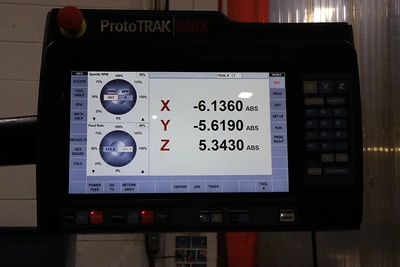

SOUTHWESTERN INDUSTRIES PROTO-TRAK RMX THREE AXIS CONTROL

    WITH ADVANCED FEATURES

    15.6" TOUCHSCREEN LCD SCREEN, 5 USB CONNECTORS,

    2 ETHERNET PORTS(1 USER & 1 FOR MOTION CONTROL)

    THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING

    HELICAL, CANNED CYCLES, GRAPHICS & MUCH MORE

    IN MANUAL MODE 3-AXIS DRO,

QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN NOT QUILL)

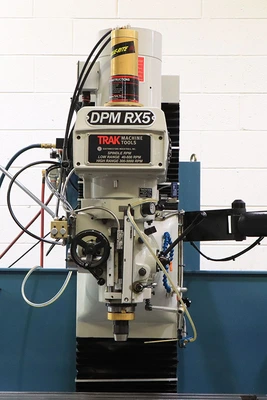

PROGRAMMABLE SPINDLE SPEEDS THROUGH ELECTRONIC INVERTER HEAD

TAPPING

TRAKING / ELECTRONIC HANDWHEELS

SQUARE BOX WAYS - HARDENED & GROUND

PRECISION BALL SCREWS

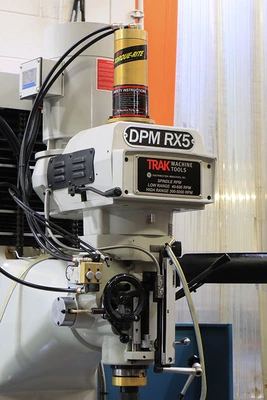

TORQUE-RITE POWER DRAW BAR

COOLANT SYSTEM

AUTOMATIC LUBRICATION SYSTEM

BELOWS WAY COVERS

5 HORSE POWER SPINDLE MOTOR

TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL

PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK

CONDITION:   *** SUPERB ***

FOR MORE INFORMATION: Call David at 973-497-7570
