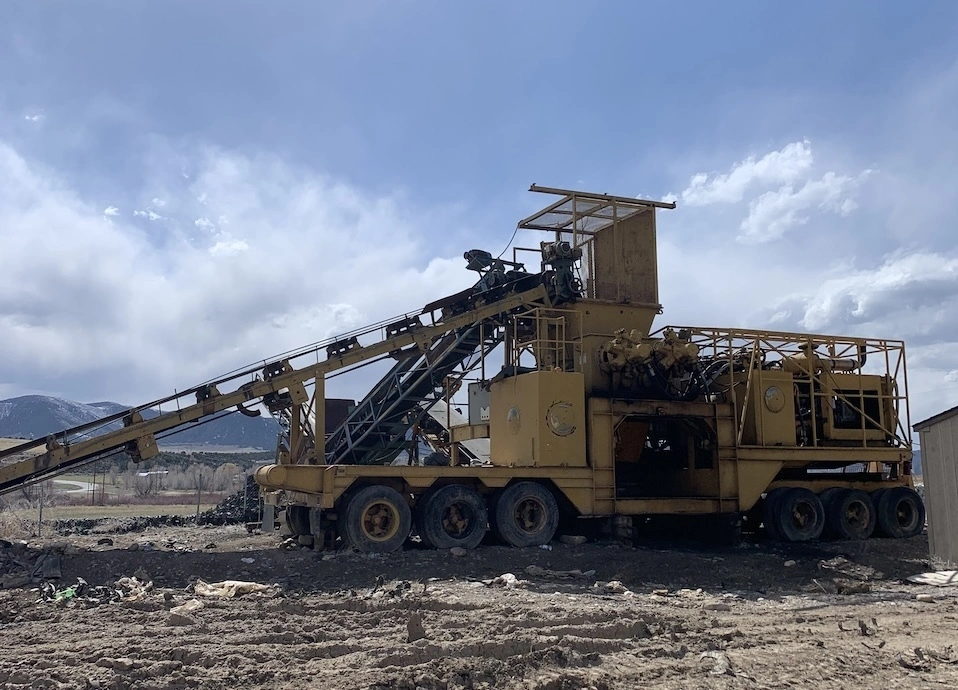

USED GRANUTECH SATURN SYSTEMS 72-50HT
Overview
The Saturn shredder features twin counter-rotating shafts operating at slow speed and very high torque to reduce material by means of shearing and tearing. Slight shaft speed differential contributes to the cutting action while reducing particle sizing. The Saturn shredder is driven by a high displacement hydraulic motor, which in turn is powered by Saturn’s proprietary open loop hydraulic drive system. Automatic overload detection initiates cutter shaft reversal to eliminate damage to the shredder components.
Specs
SPECIFICATIONS (Per Factory Literature):
• Shredder Inlet Opening 72” x 50”
• Shredder Outside Dimensions 150” x 78” x 48”
• Power Unit Dimensions (2) 96” x 86” x 96”
• Shredder Weight 33,000 pounds
• Power Unit Weight 16,000 pounds
______________________________________________________
DETAILS:
Shredder
• Cutter Shaft Torque: Fast – 36,698 ft/lbs.
Torque: Slow – 46,067 ft/lbs.
• Cutter Shaft Speed: Fast – 36
Speed: Slow – 29
• Cutter Force 42,134 lbs.
• Cutter Diameter 26.25” @ hooks
Power Unit – Open Loop, Skid Mounted
• Electrical Power 400 HP (2 x 200)
• Hydraulic Flow 312 GPM
• Maximum Pressure 3000 PSI
_______________________________________________________
ELECTRICAL:
Operator initiated pushbutton controls, featuring Allen Bradley PLC. Motor controls include
primary disconnect with short circuit protection, full load contactors, and electronic overload
detection. Control power derived from a single-phase transformer. All components assembled
and wired in a NEMA enclosure.
________________________________________________________
OPTIONAL:
• Mounting and wiring of control and motor starter panels on hydraulic power unit
• Shredder infeed hopper
• Shredder support stand
• Infeed and discharge conveyors
__________________________________________________________
APPLICATIONS:
• Tires – up to 14 T/HR
• MSW – up to 45 T/HR
• Non-Ferrous Metals – Up to 7 T/HR
___________________________________________________________
