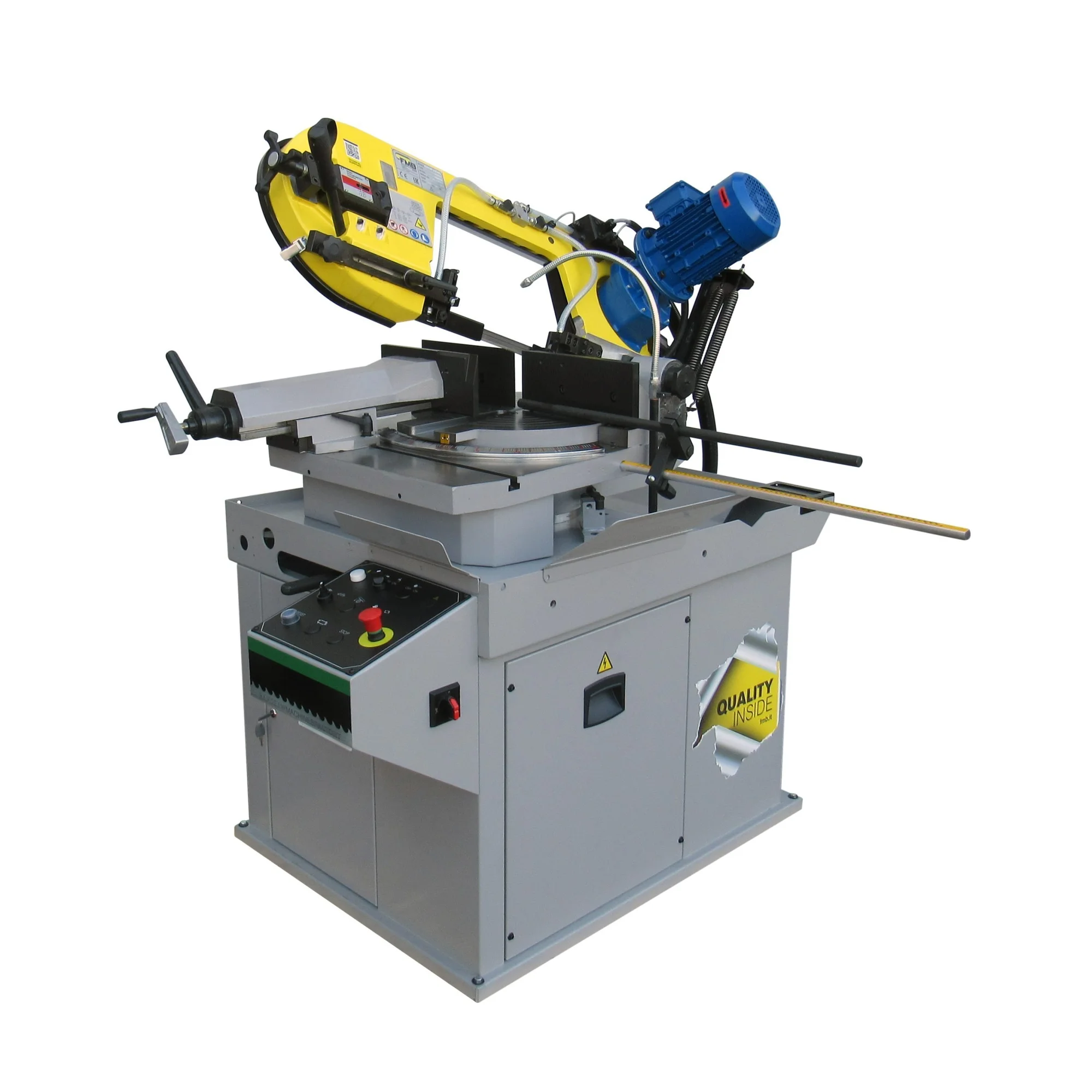

NEW FMB ORION G

STANDARD FEATURES & EQUIPMENT:
• Up to 60-degree miter to the right and 45-degree miter to the left
• 9-1/2" Round Cutting Capacity
• Standard with Gravity Feed
• Precision T-Slot for Vise Positioning
• Removable vise allows for easy fixturing of special cuts

Cutting Capacity O Degree       45 Degree/R    60 Degree/R  45 Degree/Left
Round            9-1/2"         6-7/8”         4-1/3”       6”
Rectangle A      8”x12”         6-5/8”x6-5/8”  5-1/2”x4”    5”x5-5/8”
Rectangle B      9-1/2”x10-5/8” 9-3/8”x6”      --           9-3/8”x2-1/2”
Square           9-1/2”x9-1/2”  6-5/8”x6-5/8”  4”x4”        5-1/3”x5-1/3”
Blade Size       8’10”x1”x.035”
Blade Speed      115 and 230 FPM (110v/1PH is 1 Speed - 230 FPM)
Saw Motor Power  1.75 HP
Voltages
- Available      220v/3PH, 440v/3PH, 110v/1PH
Foot Print       35”x57”
Weight           950 lbs.
