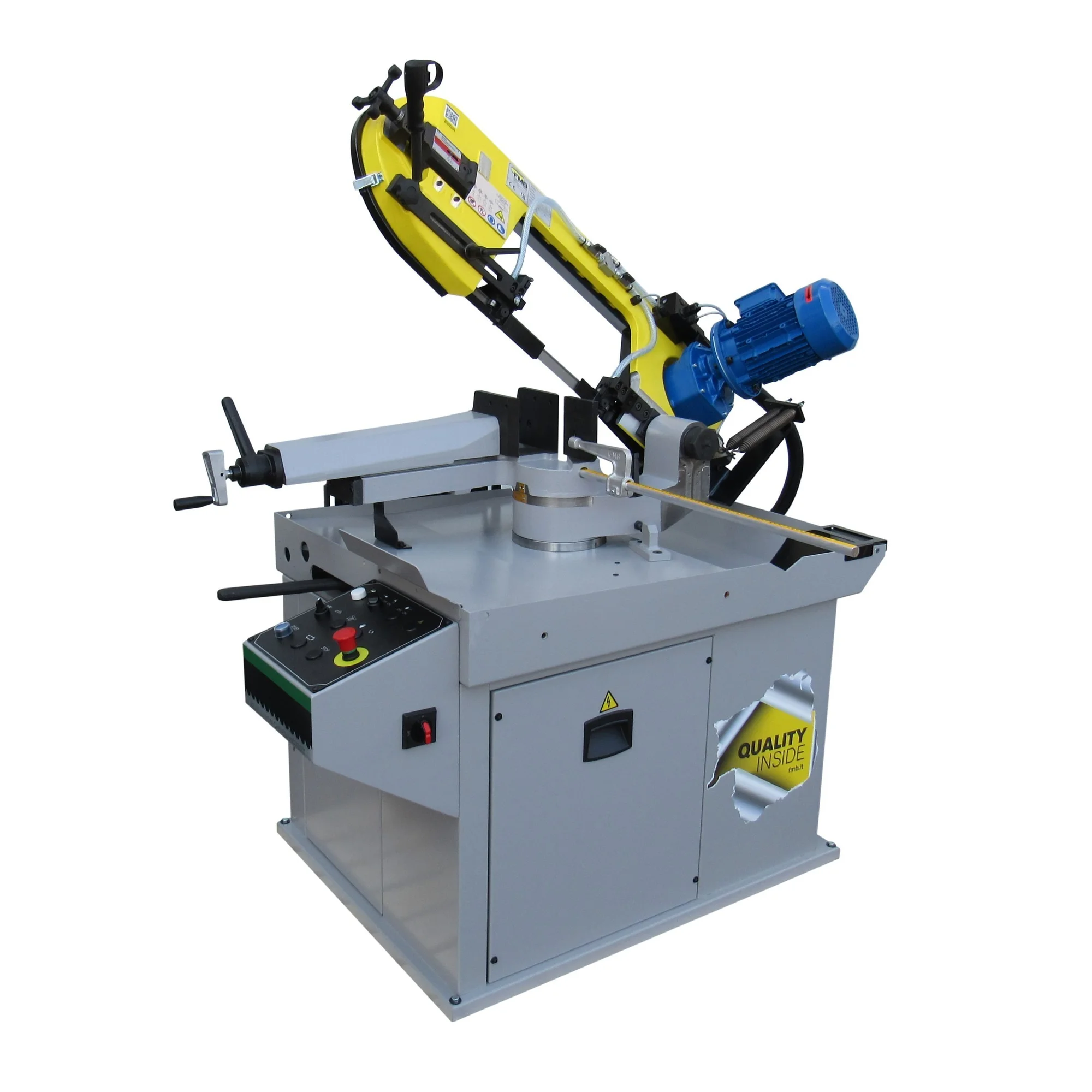

NEW FMB TRITON

STANDARD FEATURES & EQUIPMENT:
Up to 60-degree miter
9-1/2" Round Cutting Capacity
Available in Manual Pull Down or Gravity Feed

Cutting Capacity   O Degree         45 Degree       60 Degree
Round              9-1/2"           7-1/4"          4-1/2"
Rectangle A        8-1/4" x 11"     5-1/2" x 7"     4-1/3" x 4-1/3"
Rectangle B        9-1/2" x 10-1/4" 8-3/4" x 6-1/2" -
Square             9-1/2" x 9-1/2"  6-3/4" x 6-3/4" 4-1/3" x 4-1/3"
Blade Size         8'10" x 1" x .035"
Blade Speed        115 and 230 FPM (110v/1PH is 1 Speed - 230 FPM)
Saw Motor Power    1.5 HP
Voltages Available 220v/3PH, 440v/3PH, 110v/1PH
Foot Print         32" x 55"
Weight             700 lbs.
