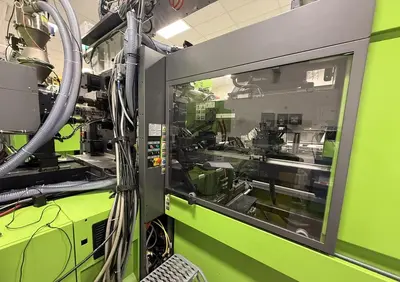

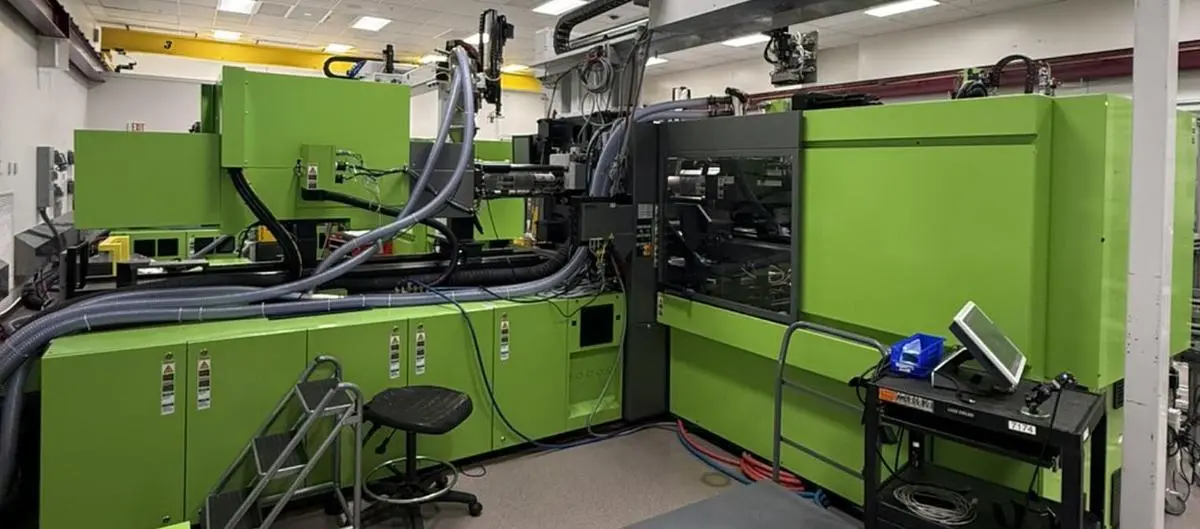

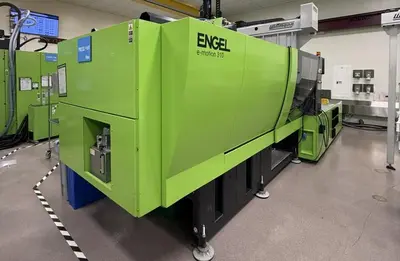

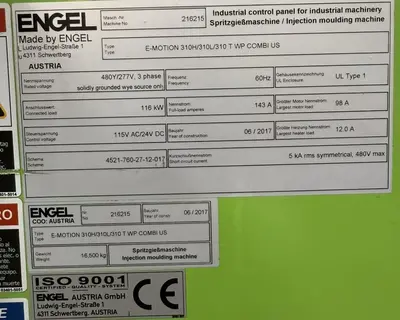

USED 2017 ENGEL E-MOTION 310H-310L-310 T

US Tonnage: 314
Primary Shot Size (oz. of PS): 3.6
Primary Screw Diameter: 33 mm
Secondary Screw Diameter: 33 mm
Platen Size (in.): 38.2 x 38.2
Tiebar Spacing (HxV) in.: 30.7 x 30.7
Max Mold Height (in.): 23.62"
Min Mold Height (in.): 3.93"
Opening Stroke (in.): 23.62"
Ejector Stroke (in.): 4.72"
Control: CC300
Voltage: 480V/3P/60Hz
Rotary Table Thickness (in.): 5.91
Rotary Table Diameter (in.): 43.3
