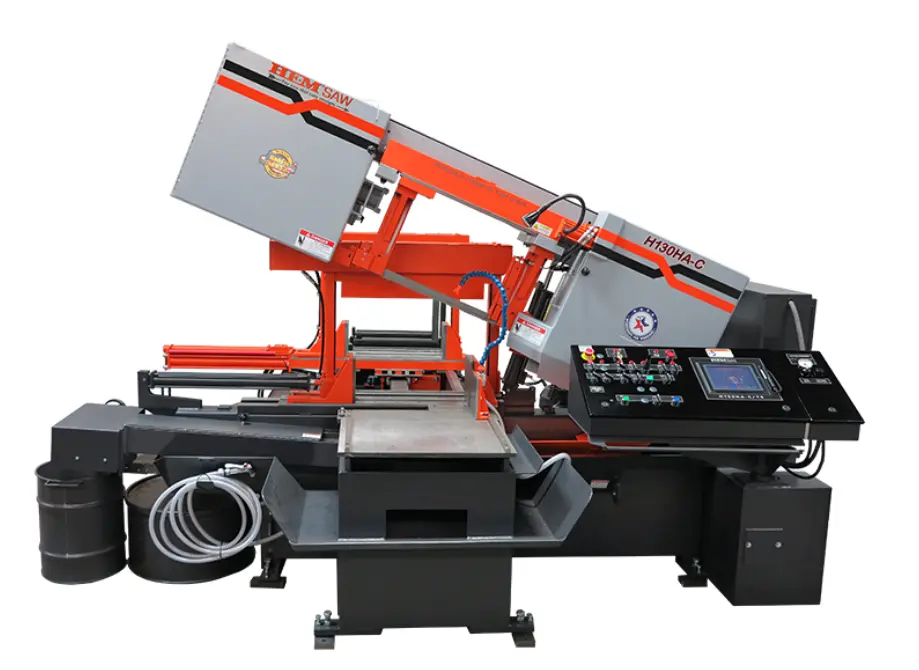

NEW 2025 HE&M SAW H130A

The H130A is known for rugged and dependable band sawing. The 10 HP motor powers the 1½” blade and a 2 HP hydraulic motor provides adjustable clamping force, powered guide arm, and powered blade tension. A 48” multi-index servo twin ball-screw bar-feed, Cut Watcher® System, and chip auger are standard features.

Rectangular Capacity 0-19" W x 0-10" H
Square Capacity 0-16" (Square)
Round Capacity 0-16" (Diameter)
Bar-feed 0-48" (Stroke Servo Twin Ball-Screw - Multiple Index)
Motor 10 HP
Hydraulic Motor 2 HP
Operation Type Automatic
Power Source Hydraulic
Weight N/A
Blade Type Bandsaw
Blade Size 17' 0" L x 1.5" H x .050"
Cantilever
Bandsaw Blade Speed N/A
Bundle Cut? Yes

Standard Features:

Control Console w/ 8" Touch Screen
Computer Controlled Feed System
24" Solid Discharge Table - Bolts to Saw
Vises - Full Stroking
Adjustable Clamping Force
Carbide Blade Guides
Roller Guides - Entry & Exit
Guide Arm - Powered
Powered Blade Tension
Passive "Cut Watcher®" System
Variable Blade Speed w/ Readout on Touch Screen
Adjustable Feed Rate
Adjustable Cutting Pressure
Chip/Swarf Removal System - Chip Auger
Coolant System - Flood w/ Wash-Down Hose
Blade Brush
Broken Blade Function
Out-of-Stock Function
Two-Hand Operation Controls
Automatic Blade Idle
Blade Change Interlock
Safety Guards
220V/3PH or 440V/3PH Electrical Motor Requirement - This is Not a Dual Voltage Machine

Optional Features:

Bar-Feed Filler Plates
Top Clamp - Full Capacity Main & Feed Vise
Vise - 3rd on Feed
Vise - Outboard Powered on Discharge
Interlocking Vise Jaws
Remote Diagnostics
Laser Light System
Pedestal Mounted Control Console
Spray Mist Lubrication
Cold Weather Package
Hydraulic Tank Heater
5' Idle Roller Stock Table
10' Idle Roller Stock Table
