Used

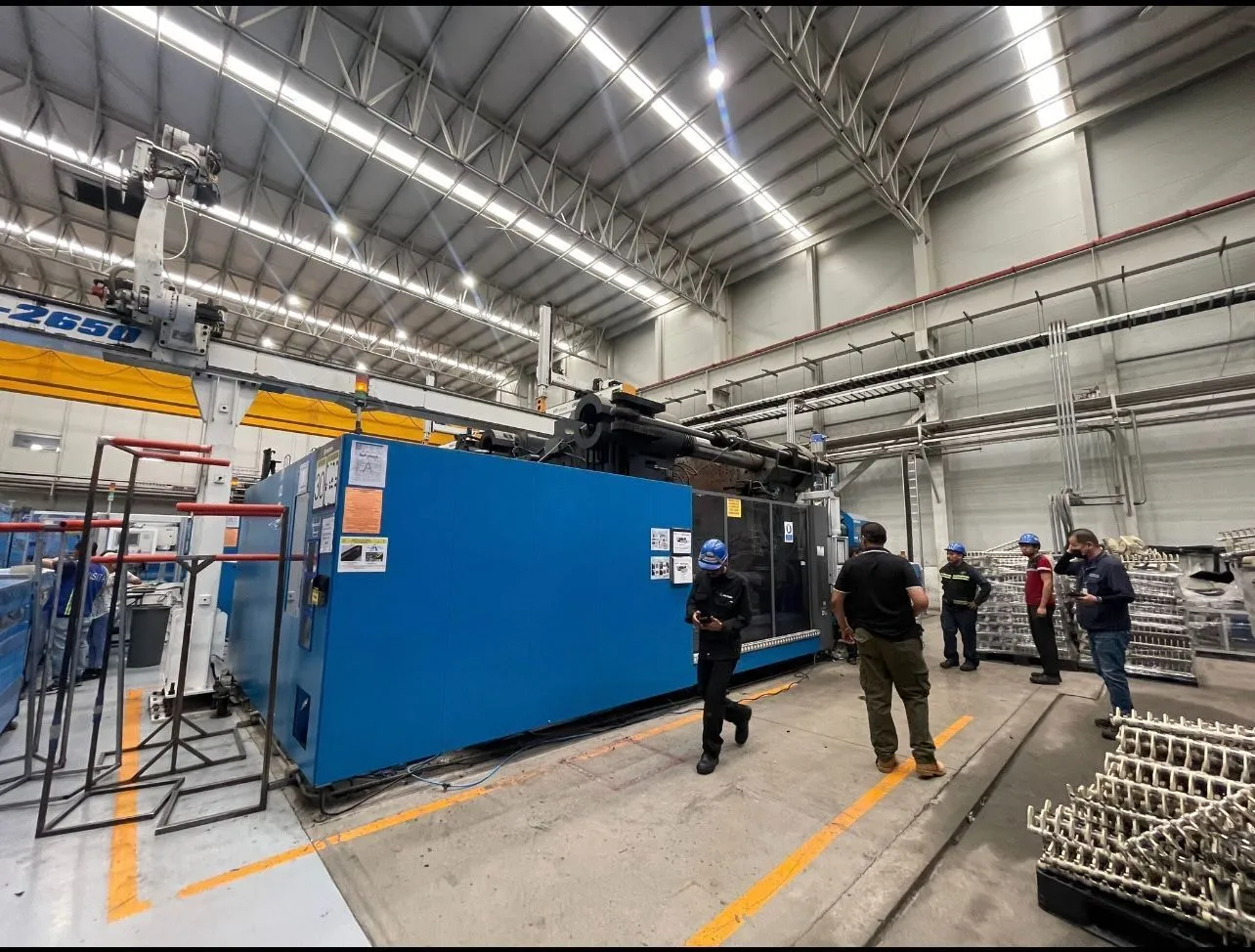

USED 2019 LS MTRON The One 2300
Canada
Overview
AUTO TIME HOURS APPROX 32,086,
INCLUDES A HYROBOTICS ROBOT EPIK E-2500SW
Specs
Type
HYBRID
HYBRID
Clamping Force Tonnage
2,300 t
2,535.313 T
Shot Volume (PS)
383.7 oz
10,877.1 g
Shot Volume (PE)
306.4 oz
8,684.9 g
Screw Diameter
5.51"
139.95 mm
Maximum Injection Pressure
25820 psi
Maximum Holding Pressure
25820 psi
Screw Speed STD
107 rpm
107 RPM
Plasticizing Capacity (PS) STD
29,085.7 oz
824,564.8 g
Tie Bar Distance H
79.92"
2,030 mm
Tie Bar Distance V
63.39"
1,610.1 mm
Platen Dimension H
107.09"
2,720.1 mm
Platen Dimension V
96.06"
2,439.9 mm
Maximum Daylight
153.5"
3,898.9 mm
Mold Height Min
31.5"
800.1 mm
Mold Height Max
74.8"
1,899.9 mm
Ejector Force
43.1 T
39.1 t
Ejector Stroke
31.5"
800.1 mm
Injection Orientation
Horz
Horz
Machine under power
Under power running with mould
Under power running with mould
Dimensions
47.24 X 11.48
47.24 X 11.48
Weight
211,642.14 LBS
211,642.14 LBS
Equipped With
3 X Machines available
